20T 9M Single Girder Electric Lifting Hoist 20m/Min Travelling

MOQ: 1 piece
Price: Negotiable
Standard Packaging: Plywood Case
Delivery Period: 30 working day
Payment Method: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 1000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE ISO9001 manufacturing licence
Model Number
CD1
Name:
Electric Wire Rope Hoist
Capacity:
1t-25t
Lifting Height:
As Per Your Request
Girder:
Single Girder
Rail Type:
I-Type, H-Type Rail
Travelling Speed:
20 M/min
HS Code:
8425110000
Voltage:
380V/440V 50hz/60hz
Highlight:

9M Electric Lifting Hoist

,

20T Electric Lifting Hoist

,

20m/Min Travelling Electric Lifting Hoist

Product Description

5T 10T 20T 9M Single Girder Single Speed Lifting Electric Wire Rope Hoist





Brief Introduction



The electric wire rope hoist CD1/MD1 model have features of compact, light, small-sized shape and smooth operation. It can be
used not only on the overhead rails, but also be used in conjunction with many types of electric or manual cranes such as the
single-grider crane, the double-grider crane, the cantilever crane and the gantry cranes. The eletric hoist model MD1 with double
lifting speeds should be used in case where the hoist model CD1 can not meet the requirements for fine abjustments during
recision operations.



Main Characteristics



* Model CD1, MD1 electric wire rope hoist is a small sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm crane.


* With slight modification, it can also be used as a winch.

* It is widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.

* Model CD1 electric hoist has only normal speed, which can satisfy normal application.

* Model MD1 electric hoist provides two speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools. etc.



Technical configuration

Model Lifting Capacity (t) Lifting Height (m) Lifting Speed (m/min) Running Speed (m/min) Wire Rope Type Dia.of Wire Rope (mm) I Beam Track Type Working Duty Lifting Motor Running Motor
Power(kw) R.P.M ( r/min) Power Supply Power(kw) R.P.M ( r/min) Power Supply
CD1-0.25 0.25 3-9 8 20 6*19 3.6 16-22b M3 0.4 1380 220-440V 50/60HZ 3Phase 0.06 1400 220-440V 50/60HZ 3Phase
CD1-0.5 0.5 6-12 8 20 6*37+1 4.8 16-28b M3 0.8 1380 0.2 1380
CD1-1 1 6-30 8 20 6*37+1 7.4 16-28b M3 1.5 1380 0.2 1380
CD1-2 2 6-30 8 20 6*37+1 11 20a-32c M3 3 1380 0.4 1380
CD1-3 3 6-30 8 20 6*37+1 13 20a-32c M3 4.5 1380 0.4 1380
CD1-5 5 6-30 8 20 6*37+1 15 25a-63c M3 7.5 1380 0.8 1380
CD1-10 10 6-30 7 20 6*37+1 15 25a-63c M3 13 1400 0.8*2 1380
CD1-16 16 6-30 3.5 20 6*37+1 15 45a-63c M2 13 1400 0.8*2 1380
CD1-20 20 6-30 3.5 20 6*37+1 20 50a-63c M2 13 1400 0.8*2 1380




Notes

A. The standard lifting height is 6, 9, 12, 18, 24, 30 and 36 meters.

B. The lifting speed can be single speed or double speed, even multi-speed with frequency inverters.
C. The suitable rail for the low-headroom hoist is H-type rail, and I-type rail is also available..
D. The recommended rope reeving of this kind of hoist is 2/1, 4/2 or 4/1.
E. The normal traveling speed is 20m/min, and 12.5, 16, 25, 30, 45m/min by request.
F. The normal rail gauge of the double-girder is 1200, 1500, 1800, 2100 and 2300mm.

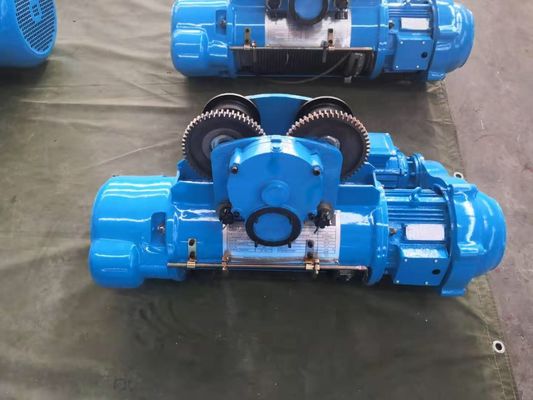

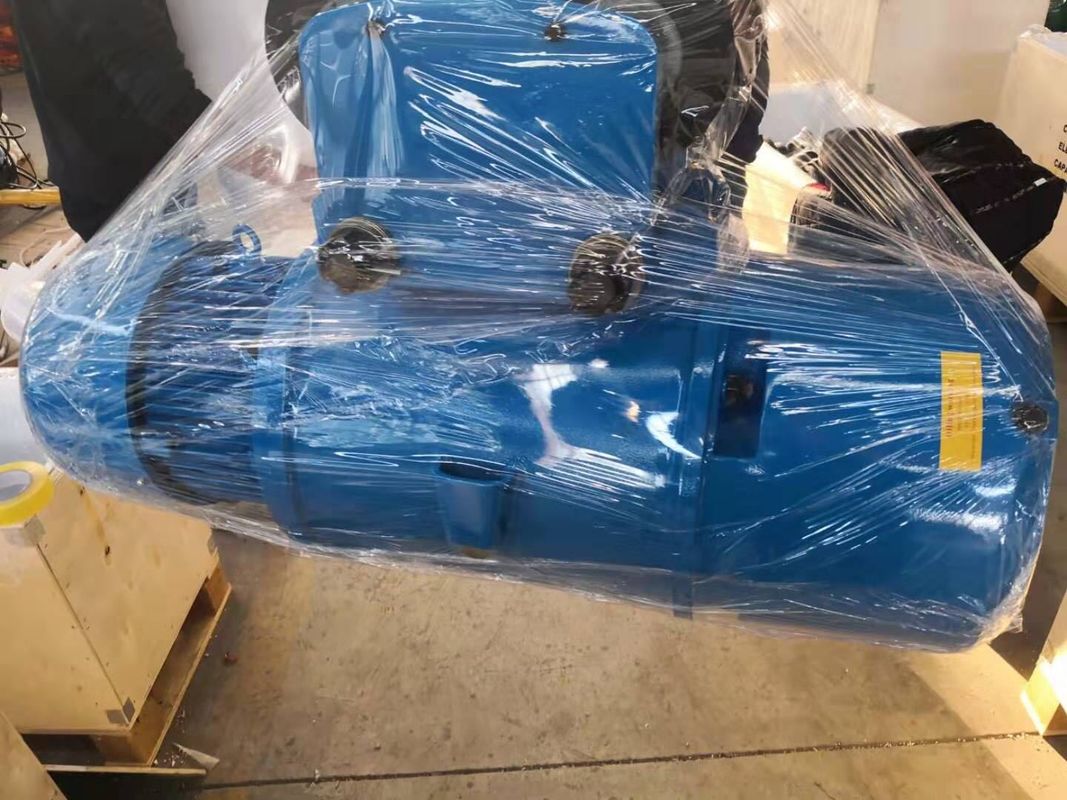

Product show:



20T 9M Single Girder Electric Lifting Hoist 20m/Min Travelling 0

20T 9M Single Girder Electric Lifting Hoist 20m/Min Travelling 1

20T 9M Single Girder Electric Lifting Hoist 20m/Min Travelling 2
