2/1 Reeving 8000kg Electric Wire Rope Hoist Trolley Type

Large Image : 2/1 Reeving 8000kg Electric Wire Rope Hoist Trolley Type

Product Details:

Place of Origin:	China
Brand Name:	JCYC
Certification:	CE&ISO
Model Number:	SH

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD negotiate per unit
Packaging Details:	Plywood case
Delivery Time:	10 -15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	500 pcs per month

Contact Now

Detailed Product Description

Product Name:	8000kg Electric Wire Rope Hoist With Certification	Capacity:	8000kg
Rope Reeving:	2/1 Or 4/1 Reeving	Reducer:	Planetary Speed-Down Drive
Type:	Fixed And Trolley Type	Speed:	Double Speed
Highlight:	8000kg Electric Wire Rope Hoist , 2/1 Reeving Electric Wire Rope Hoist , 9m Lifting Wire Rope Hoist

8000kg Electric Wire Rope Hoist with Certification

Product Introduction

SH type electric wire rope electric hoist is a newly developed material handling equipment with advanced design technology according to the FEM standards and other regulations. The new serial of wire rope electric hoist is environment-friendly, energy saving and cost-effective which ranks top among similar products. The lifting capacity of the wire rope electric hoist is 1 to 80 tons and the working class is M5 and M6. Customized European wire rope electric hoist are available. And the main parameters are presented for your reference

The electric hoists are widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.

Questions before making quotation

The more information you provide, the accurate solution we can prepare for you!
1-Capacity?
2-Lifting height?
3-what is lifting material? How about working environment?
4- Power supply and control voltage?

Capacity	Lifting Height	Lifting Speed	Lifting Power	Travelling Speed	Travelling Power	Working Group	Traveling	H	C	I-beam	Weight
(kg)	m	(m/min)	KW	m/min	(kw)	FEM/ISO	Working Group	(mm)	(mm)	B(mm)	kg
							FEM/ISO
2000	6	5/0.8	3.2/0.45	5/20	0.37	3M M6	2M M5	180	850	100-250	309
	9	5/0.8	3.2/0.45	5/20	0.37	3M M6	2M M5	180	850	100-250	330
	12	5/0.8	3.2/0.45	5/20	0.37	3M M6	2M M5	180	850	100-250	351
	15	5/0.8	3.2/0.45	5/20	0.37	3M M6	2M M5	180	850	100-250	372
	18	5/0.8	3.2/0.45	5/20	0.37	3M M6	2M M5	180	850	100-250	393
3200	6	5/0.8	3.2/0.45	5/20	0.37	2M M5	2M M5	180	850	100-250	309
	9	5/0.8	3.2/0.45	5/20	0.37	2M M5	2M M5	180	850	100-250	330
	12	5/0.8	3.2/0.45	5/20	0.37	2M M5	2M M5	180	850	100-250	351
	15	5/0.8	3.2/0.45	5/20	0.37	2M M5	2M M5	180	850	100-250	372
	18	5/0.8	3.2/0.45	5/20	0.37	2M M5	2M M5	180	850	100-250	393
5000	6	5/0.8	6.1/1	5/20	0.55	2M M5	2M M5	190	890	150-300	380
	9	5/0.8	6.1/1	5/20	0.55	2M M5	2M M5	190	890	150-300	423
	12	5/0.8	6.1/1	5/20	0.55	2M M5	2M M5	190	890	150-300	466
	15	5/0.8	6.1/1	5/20	0.55	2M M5	2M M5	190	890	150-300	510
	18	5/0.8	6.1/1	5/20	0.55	2M M5	2M M5	190	890	150-300	552
6300	6	5/0.8	6.1/1	5/20	0.55	1Am M4	2M M5	190	890	150-300	380
	9	5/0.8	6.1/1	5/20	0.55	1Am M4	2M M5	190	890	150-300	420
	12	5/0.8	6.1/1	5/20	0.55	1Am M4	2M M5	190	890	200-350	465
	15	5/0.8	6.1/1	5/20	0.55	1Am M4	2M M5	260	596	200-350	510
	18	5/0.8	6.1/1	5/20	0.55	1Am M4	2M M5	260	596	200-350	552
8000	6	5/0.8	9.5/1.5	5/20	0.75	3M M6	2M M5	200	1150	150-300	794
	9	5/0.8	9.5/1.5	5/20	0.75	3M M6	2M M5	200	1150	150-300	826
	12	5/0.8	9.5/1.5	5/20	0.75	3M M6	2M M5	200	1150	150-300	870
	15	5/0.8	9.5/1.5	5/20	0.75	3M M6	2M M5	200	1150	150-300	914
	18	5/0.8	9.5/1.5	5/20	0.75	3M M6	2M M5	200	1150	150-300	958
10000	6	5/0.8	9.5/1.5	5/20	0.75	2M M5	2M M5	200	1150	150-300	794
	9	5/0.8	9.5/1.5	5/20	0.75	2M M5	2M M5	200	1150	150-300	826
	12	5/0.8	9.5/1.5	5/20	0.75	2M M5	2M M5	200	1150	150-300	870
	15	5/0.8	9.5/1.5	5/20	0.75	2M M5	2M M5	200	1150	150-300	914
	18	5/0.8	9.5/1.5	5/20	0.75	2M M5	2M M5	200	1150	150-300	958
12500	6	4/0.6	12.5/2	5/20	0.75	1Am M4	2M M5	200	1150	150-300	794
	9	4/0.6	12.5/2	5/20	0.75	1Am M4	2M M5	200	1150	150-300	826
	12	4/0.6	12.5/2	5/20	0.75	1Am M4	2M M5	200	1150	150-300	870
	15	4/0.6	12.5/2	5/20	0.75	1Am M4	2M M5	200	1150	150-300	914
	18	4/0.6	12.5/2	5/20	0.75	1Am M4	2M M5	200	1150	150-300	958
16000	6	4/0.6	16/2.6	5/20	0.75x2	2M M5	2M M5	250	1150	250-350	1120
	9	4/0.6	16/2.6	5/20	0.75x2	2M M5	2M M5	250	1150	250-350	1180
	12	4/0.6	16/2.6	5/20	0.75x2	2M M5	2M M5	250	1150	250-350	1240
	15	4/0.6	16/2.6	5/20	0.75x2	2M M5	2M M5	250	1150	250-350	1300
	18	4/0.6	16/2.6	5/20	0.75x2	2M M5	2M M5	250	1150	250-350	1450
20000	6	4/0.6	16/2.6	5/20	0.75x2	1Am M4	2M M5	250	1150	250-350	1120
	9	4/0.6	16/2.6	5/20	0.75x2	1Am M4	2M M5	250	1150	250-350	1180
	12	4/0.6	16/2.6	5/20	0.75x2	1Am M4	2M M5	250	1150	250-350	1240
	15	4/0.6	16/2.6	5/20	0.75x2	1Am M4	2M M5	250	1150	250-350	1300
	18	4/0.6	16/2.6	5/20	0.75x2	1Am M4	2M M5	250	1150	250-350	1450
8000	20	8/1.3	16/2.6	5/20	0.75	2M M5	2M M5	200	1150	150-300	997
	24	8/1.3	16/2.6	5/20	0.75	2M M5	2M M5	200	1150	150-300	1036
	28	8/1.3	16/2.6	5/20	0.75	2M M5	2M M5	200	1150	150-300	1075
	32	8/1.3	16/2.6	5/20	0.75	2M M5	2M M5	200	1150	150-300	1114
	36	8/1.3	16/2.6	5/20	0.75	2M M5	2M M5	200	1150	150-300	1153
10000	20	8/1.3	16/2.6	5/20	0.75	2M M5	2M M5	200	1150	150-300	997
	24	8/1.3	16/2.6	5/20	0.75	2M M5	2M M5	200	1150	150-300	1036
	28	8/1.3	16/2.6	5/20	0.75	2M M5	2M M5	200	1150	150-300	1075
	32	8/1.3	16/2.6	5/20	0.75	2M M5	2M M5	200	1150	150-300	1114
	36	8/1.3	16/2.6	5/20	0.75	2M M5	2M M5	200	1150	150-300	1153
12500	20	6.3/1	16/2.6	5/20	0.75	1Am M4	2M M5	200	1150	150-300	997
	24	6.3/1	16/2.6	5/20	0.75	1Am M4	2M M5	200	1150	150-300	1036
	28	6.3/1	16/2.6	5/20	0.75	1Am M4	2M M5	200	1150	150-300	1075
	32	6.3/1	16/2.6	5/20	0.75	1Am M4	2M M5	200	1150	150-300	1114
	36	6.3/1	16/2.6	5/20	0.75	1Am M4	2M M5	200	1150	150-300	1153

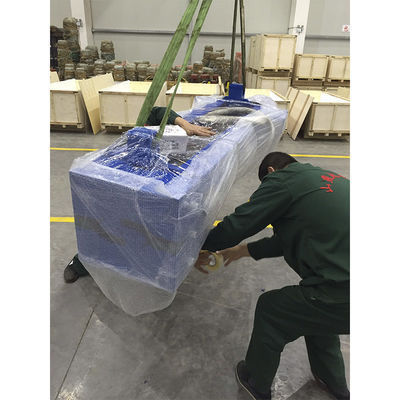

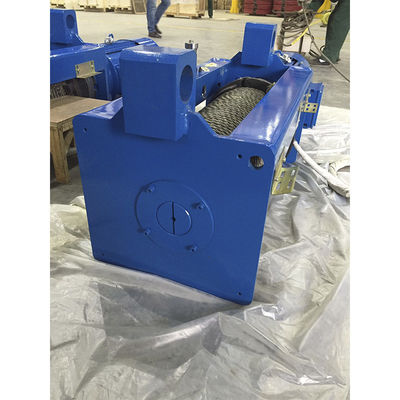

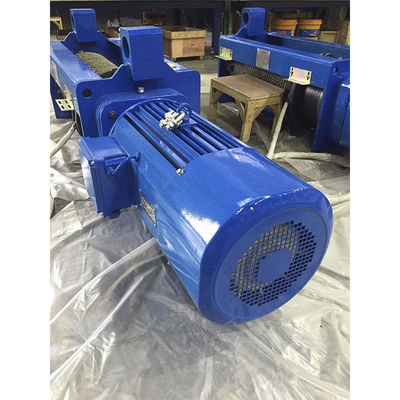

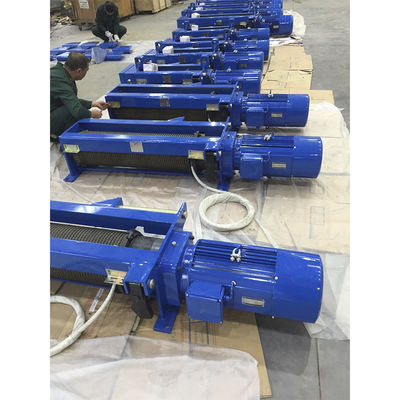

Product show :

2/1 Reeving 8000kg Electric Wire Rope Hoist Trolley Type 0
