Product Details:
Payment & Shipping Terms:
|
| Product Name: | 10 Ton Electric Wire Rope Hoist For Overhead Bridge Crane | Capacity: | 2 T - 50 T |
|---|---|---|---|
| Rope Reeving: | 2/1 Or 4/1 Reeving | Reducer: | Planetary Speed-Down Drive |
| Type: | Fixed And Trolley Type | Speed: | Double Speed |
| High Light: | 4/1 Reeving Electric Wire Rope Hoist,10T Electric Wire Rope Hoist,ISO Electric Wire Rope Hoist |
||

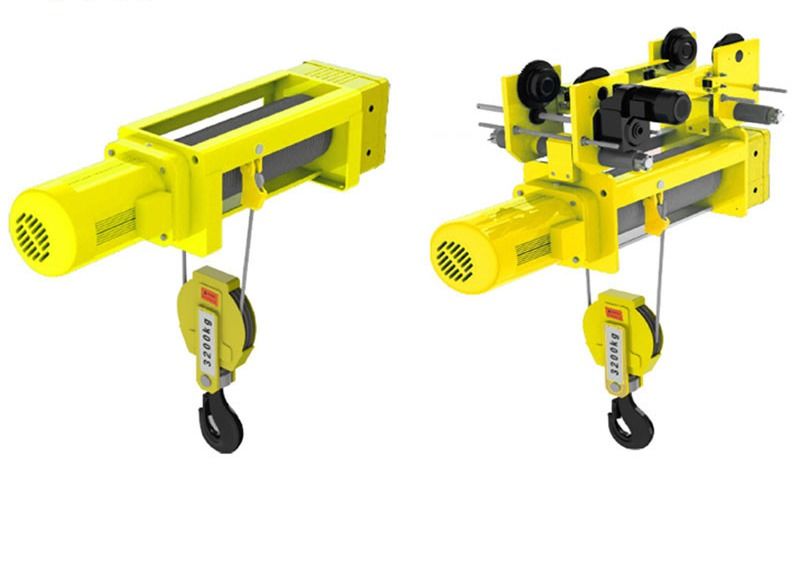

10 Ton Electric Wire Rope Hoist for Overhead Bridge Crane
Product Description
This kind of wire rope hoist has newest designing with quadrate outline, modularized construction, good unitized capacity. The fundamental mode change combine is very convenient and multiform. The special drive composition method is very stationary which save the usual long transmission shaft. The reducer use panetary speed-down drive which have high effective, low yawp long using life. Unique column rotor-taper breaking wheel motor with low yawp, disk reliable. With the advance guide rope technology from overseas, unit is very reliable and safe. High precision and super mechanical spin limiter high quality control electric compnent with low malfunction. The products are complied with the up to date international standard.
Competitive Advantages
- Single speed, double speed or variable speed if client request.
- Smooth starting and stopping.
- Low noise, safe and reliable traveling.
- Convenient maintenance.
- Overload protection device.
- Corrosion resistance and fatigue resistance
Questions before making quotation
The more information you provide, the accurate solution we can prepare for you!
1-Capacity?
2-Lifting height?
3-what is lifting material? How about working environment?
4- Power supply and control voltage?
| Capacity | Lifting Height | Lifting Speed | Lifting Power | Travelling Speed | Travelling Power | Working Group | Traveling | H | C | I-beam | Weight |
| (kg) | m | (m/min) | KW | m/min | (kw) | FEM/ISO | Working Group | (mm) | (mm) | B(mm) | kg |
| FEM/ISO | |||||||||||
| 2000 | 6 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 3M M6 | 2M M5 | 180 | 850 | 100-250 | 309 |
| 9 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 3M M6 | 2M M5 | 180 | 850 | 100-250 | 330 | |
| 12 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 3M M6 | 2M M5 | 180 | 850 | 100-250 | 351 | |
| 15 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 3M M6 | 2M M5 | 180 | 850 | 100-250 | 372 | |
| 18 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 3M M6 | 2M M5 | 180 | 850 | 100-250 | 393 | |
| 3200 | 6 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 2M M5 | 2M M5 | 180 | 850 | 100-250 | 309 |
| 9 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 2M M5 | 2M M5 | 180 | 850 | 100-250 | 330 | |
| 12 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 2M M5 | 2M M5 | 180 | 850 | 100-250 | 351 | |
| 15 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 2M M5 | 2M M5 | 180 | 850 | 100-250 | 372 | |
| 18 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 2M M5 | 2M M5 | 180 | 850 | 100-250 | 393 | |
| 5000 | 6 | 5/0.8 | 6.1/1 | 5/20 | 0.55 | 2M M5 | 2M M5 | 190 | 890 | 150-300 | 380 |
| 9 | 5/0.8 | 6.1/1 | 5/20 | 0.55 | 2M M5 | 2M M5 | 190 | 890 | 150-300 | 423 | |
| 12 | 5/0.8 | 6.1/1 | 5/20 | 0.55 | 2M M5 | 2M M5 | 190 | 890 | 150-300 | 466 | |
| 15 | 5/0.8 | 6.1/1 | 5/20 | 0.55 | 2M M5 | 2M M5 | 190 | 890 | 150-300 | 510 | |
| 18 | 5/0.8 | 6.1/1 | 5/20 | 0.55 | 2M M5 | 2M M5 | 190 | 890 | 150-300 | 552 | |
| 6300 | 6 | 5/0.8 | 6.1/1 | 5/20 | 0.55 | 1Am M4 | 2M M5 | 190 | 890 | 150-300 | 380 |
| 9 | 5/0.8 | 6.1/1 | 5/20 | 0.55 | 1Am M4 | 2M M5 | 190 | 890 | 150-300 | 420 | |
| 12 | 5/0.8 | 6.1/1 | 5/20 | 0.55 | 1Am M4 | 2M M5 | 190 | 890 | 200-350 | 465 | |
| 15 | 5/0.8 | 6.1/1 | 5/20 | 0.55 | 1Am M4 | 2M M5 | 260 | 596 | 200-350 | 510 | |
| 18 | 5/0.8 | 6.1/1 | 5/20 | 0.55 | 1Am M4 | 2M M5 | 260 | 596 | 200-350 | 552 | |
| 8000 | 6 | 5/0.8 | 9.5/1.5 | 5/20 | 0.75 | 3M M6 | 2M M5 | 200 | 1150 | 150-300 | 794 |
| 9 | 5/0.8 | 9.5/1.5 | 5/20 | 0.75 | 3M M6 | 2M M5 | 200 | 1150 | 150-300 | 826 | |
| 12 | 5/0.8 | 9.5/1.5 | 5/20 | 0.75 | 3M M6 | 2M M5 | 200 | 1150 | 150-300 | 870 | |
| 15 | 5/0.8 | 9.5/1.5 | 5/20 | 0.75 | 3M M6 | 2M M5 | 200 | 1150 | 150-300 | 914 | |
| 18 | 5/0.8 | 9.5/1.5 | 5/20 | 0.75 | 3M M6 | 2M M5 | 200 | 1150 | 150-300 | 958 | |
| 10000 | 6 | 5/0.8 | 9.5/1.5 | 5/20 | 0.75 | 2M M5 | 2M M5 | 200 | 1150 | 150-300 | 794 |
| 9 | 5/0.8 | 9.5/1.5 | 5/20 | 0.75 | 2M M5 | 2M M5 | 200 | 1150 | 150-300 | 826 | |
| 12 | 5/0.8 | 9.5/1.5 | 5/20 | 0.75 | 2M M5 | 2M M5 | 200 | 1150 | 150-300 | 870 | |
| 15 | 5/0.8 | 9.5/1.5 | 5/20 | 0.75 | 2M M5 | 2M M5 | 200 | 1150 | 150-300 | 914 | |
| 18 | 5/0.8 | 9.5/1.5 | 5/20 | 0.75 | 2M M5 | 2M M5 | 200 | 1150 | 150-300 | 958 | |
| 12500 | 6 | 4/0.6 | 12.5/2 | 5/20 | 0.75 | 1Am M4 | 2M M5 | 200 | 1150 | 150-300 | 794 |
| 9 | 4/0.6 | 12.5/2 | 5/20 | 0.75 | 1Am M4 | 2M M5 | 200 | 1150 | 150-300 | 826 | |
| 12 | 4/0.6 | 12.5/2 | 5/20 | 0.75 | 1Am M4 | 2M M5 | 200 | 1150 | 150-300 | 870 | |
| 15 | 4/0.6 | 12.5/2 | 5/20 | 0.75 | 1Am M4 | 2M M5 | 200 | 1150 | 150-300 | 914 | |
| 18 | 4/0.6 | 12.5/2 | 5/20 | 0.75 | 1Am M4 | 2M M5 | 200 | 1150 | 150-300 | 958 | |
| 16000 | 6 | 4/0.6 | 16/2.6 | 5/20 | 0.75x2 | 2M M5 | 2M M5 | 250 | 1150 | 250-350 | 1120 |
| 9 | 4/0.6 | 16/2.6 | 5/20 | 0.75x2 | 2M M5 | 2M M5 | 250 | 1150 | 250-350 | 1180 | |
| 12 | 4/0.6 | 16/2.6 | 5/20 | 0.75x2 | 2M M5 | 2M M5 | 250 | 1150 | 250-350 | 1240 | |
| 15 | 4/0.6 | 16/2.6 | 5/20 | 0.75x2 | 2M M5 | 2M M5 | 250 | 1150 | 250-350 | 1300 | |
| 18 | 4/0.6 | 16/2.6 | 5/20 | 0.75x2 | 2M M5 | 2M M5 | 250 | 1150 | 250-350 | 1450 | |
| 20000 | 6 | 4/0.6 | 16/2.6 | 5/20 | 0.75x2 | 1Am M4 | 2M M5 | 250 | 1150 | 250-350 | 1120 |
| 9 | 4/0.6 | 16/2.6 | 5/20 | 0.75x2 | 1Am M4 | 2M M5 | 250 | 1150 | 250-350 | 1180 | |
| 12 | 4/0.6 | 16/2.6 | 5/20 | 0.75x2 | 1Am M4 | 2M M5 | 250 | 1150 | 250-350 | 1240 | |
| 15 | 4/0.6 | 16/2.6 | 5/20 | 0.75x2 | 1Am M4 | 2M M5 | 250 | 1150 | 250-350 | 1300 | |
| 18 | 4/0.6 | 16/2.6 | 5/20 | 0.75x2 | 1Am M4 | 2M M5 | 250 | 1150 | 250-350 | 1450 | |
| 8000 | 20 | 8/1.3 | 16/2.6 | 5/20 | 0.75 | 2M M5 | 2M M5 | 200 | 1150 | 150-300 | 997 |
| 24 | 8/1.3 | 16/2.6 | 5/20 | 0.75 | 2M M5 | 2M M5 | 200 | 1150 | 150-300 | 1036 | |
| 28 | 8/1.3 | 16/2.6 | 5/20 | 0.75 | 2M M5 | 2M M5 | 200 | 1150 | 150-300 | 1075 | |
| 32 | 8/1.3 | 16/2.6 | 5/20 | 0.75 | 2M M5 | 2M M5 | 200 | 1150 | 150-300 | 1114 | |
| 36 | 8/1.3 | 16/2.6 | 5/20 | 0.75 | 2M M5 | 2M M5 | 200 | 1150 | 150-300 | 1153 | |
| 10000 | 20 | 8/1.3 | 16/2.6 | 5/20 | 0.75 | 2M M5 | 2M M5 | 200 | 1150 | 150-300 | 997 |
| 24 | 8/1.3 | 16/2.6 | 5/20 | 0.75 | 2M M5 | 2M M5 | 200 | 1150 | 150-300 | 1036 | |
| 28 | 8/1.3 | 16/2.6 | 5/20 | 0.75 | 2M M5 | 2M M5 | 200 | 1150 | 150-300 | 1075 | |
| 32 | 8/1.3 | 16/2.6 | 5/20 | 0.75 | 2M M5 | 2M M5 | 200 | 1150 | 150-300 | 1114 | |
| 36 | 8/1.3 | 16/2.6 | 5/20 | 0.75 | 2M M5 | 2M M5 | 200 | 1150 | 150-300 | 1153 | |
| 12500 | 20 | 6.3/1 | 16/2.6 | 5/20 | 0.75 | 1Am M4 | 2M M5 | 200 | 1150 | 150-300 | 997 |
| 24 | 6.3/1 | 16/2.6 | 5/20 | 0.75 | 1Am M4 | 2M M5 | 200 | 1150 | 150-300 | 1036 | |
| 28 | 6.3/1 | 16/2.6 | 5/20 | 0.75 | 1Am M4 | 2M M5 | 200 | 1150 | 150-300 | 1075 | |
| 32 | 6.3/1 | 16/2.6 | 5/20 | 0.75 | 1Am M4 | 2M M5 | 200 | 1150 | 150-300 | 1114 | |
| 36 | 6.3/1 | 16/2.6 | 5/20 | 0.75 | 1Am M4 | 2M M5 | 200 | 1150 | 150-300 | 1153 |
After Sale Service :
1. Response: Fast reply all questions from our customers on line or by email/phone call all time 24h.
2. Installation or maintainess problems: Manuals will sent along with products. Please operate according to manuals. If any question, please contact us in time.
3. Quality problems: Our factory is responsible for any problems if it is caused by our reasons (Such as give you free new parts to repair it or give enough some compensation cost to you)
