Product Details:
Payment & Shipping Terms:
|
| Product Name: | 10t Double Girder Overhead Traveling Trolley Electric Wire Rope Hoist | Capacity: | 10t |
|---|---|---|---|
| Lifting Height: | 6/9/12/18m Or At Request | Working Grade: | A3 |
| Lifting Speed: | 7 M/min | Travel Speed: | 20 M/min |
| High Light: | 10t Electric Wire Rope Hoist,7 m/min Electric Wire Rope Hoist |
||

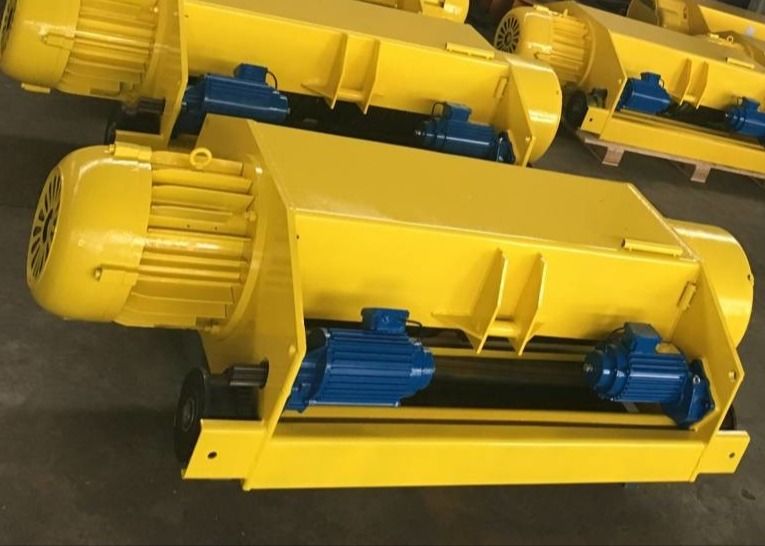

10t Double Girder Overhead Traveling Trolley Electric Wire Rope Hoist
Brief introduction
Wire rope hoist is a kind of small lifting equipment wire rope hoist. It has the advantages of compact structure, light weight, small size,
strong versatility of parts and convenient operation. It can be installed separately on I-beam or mounted on electric Or manual crane,
double beam, cantilever, gantry and other cranes. This 10t double girder electric hoist combine the hoist and the trolley together, which make it more compact, reduce the space occupation and durable.
Advantage
1, Light weight,
2, Small volume, structure compact,
3, Variety of specifications,
4, Running smoothly
5, Easy operation and maintainance
| Model | Lifting Capacity (t) | Lifting Height (m) | Lifting Speed (m/min) | Running Speed (m/min) | Wire Rope Type | Dia.of Wire Rope (mm) | I Beam Track Type | Working Duty | Lifting Motor | Running Motor | ||||
| Power(kw) | R.P.M ( r/min) | Power Supply | Power(kw) | R.P.M ( r/min) | Power Supply | |||||||||
| CD1-0.25 | 0.25 | 3-9 | 8 | 20 | 6*19 | 3.6 | 16-22b | M3 | 0.4 | 1380 | 220-440V 50/60HZ 3Phase | 0.06 | 1400 | 220-440V 50/60HZ 3Phase |
| CD1-0.5 | 0.5 | 6-12 | 8 | 20 | 6*37+1 | 4.8 | 16-28b | M3 | 0.8 | 1380 | 0.2 | 1380 | ||
| CD1-1 | 1 | 6-30 | 8 | 20 | 6*37+1 | 7.4 | 16-28b | M3 | 1.5 | 1380 | 0.2 | 1380 | ||
| CD1-2 | 2 | 6-30 | 8 | 20 | 6*37+1 | 11 | 20a-32c | M3 | 3 | 1380 | 0.4 | 1380 | ||
| CD1-3 | 3 | 6-30 | 8 | 20 | 6*37+1 | 13 | 20a-32c | M3 | 4.5 | 1380 | 0.4 | 1380 | ||
| CD1-5 | 5 | 6-30 | 8 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 7.5 | 1380 | 0.8 | 1380 | ||
| CD1-10 | 10 | 6-30 | 7 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 13 | 1400 | 0.8*2 | 1380 | ||
| CD1-16 | 16 | 6-30 | 3.5 | 20 | 6*37+1 | 15 | 45a-63c | M2 | 13 | 1400 | 0.8*2 | 1380 | ||
| CD1-20 | 20 | 6-30 | 3.5 | 20 | 6*37+1 | 20 | 50a-63c | M2 | 13 | 1400 | 0.8*2 | 1380 | ||
| Model | Lifting Capacity (t) | Lifting Height (m) | Lifting Speed (m/min) | Running Speed (m/min) | Wire Rope Type | Dia.of Wire Rope (mm) | I Beam Track Type | Working Duty | Lifting Motor | Running Motor | ||||
| Power(kw) | R.P.M ( r/min) | Power Supply | Power(kw) | R.P.M ( r/min) | Power Supply | |||||||||
| MD1-0.25 | 0.25 | 3-9 | 8/0.8 | 20 | 6*19 | 3.6 | 16-22b | M3 | 0.4 | 1380 | 220-440V 50/60HZ 3Phase | 0.06 | 1400 | 220-440V 50/60HZ 3Phase |
| MD1-0.5 | 0.5 | 6-12 | 8/0.8 | 20 | 6*37+1 | 4.8 | 16-28b | M3 | 0.2/0.8 | 1380 | 0.2 | 1380 | ||
| MD1-1 | 1 | 6-30 | 8/0.8 | 20 | 6*37+1 | 7.4 | 16-28b | M3 | 0.2/1.5 | 1380 | 0.2 | 1380 | ||
| MD1-2 | 2 | 6-30 | 8/0.8 | 20 | 6*37+1 | 11 | 20a-32c | M3 | 0.4/3.0 | 1380 | 0.4 | 1380 | ||
| MD1-3 | 3 | 6-30 | 8/0.8 | 20 | 6*37+1 | 13 | 20a-32c | M3 | 0.4/4.5 | 1380 | 0.4 | 1380 | ||
| MD1-5 | 5 | 6-30 | 8/0.8 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 0.8/7.5 | 1380 | 0.8 | 1380 | ||
| MD1-10 | 10 | 6-30 | 7/0.7 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 1.5/13 | 1400 | 0.8*2 | 1380 | ||
| MD1-16 | 16 | 6-30 | 3.5/0.35 | 20 | 6*37+1 | 15 | 45a-63c | M2 | 1.5/13 | 1400 | 0.8*2 | 1380 | ||
| MD1-20 | 20 | 6-30 | 3.5/0.35 | 20 | 6*37+1 | 20 | 50a-63c | M2 | 1.5/13 | 1400 | 0.8*2 | 1380 | ||
Questions before quotation
1. Capacity?
2. Lifting height?
3. Single/double lifting speed?
4. Voltage?
The more detail requirements, the more accurate quotations.
