1T 5T Lifting Goods Electric Wire Rope Hoist CD MD Model

MOQ: 1 unit
Price: USD negotiate per unit
Standard Packaging: Plywood case
Delivery Period: 10 -15 working days
Payment Method: L/C, T/T, Western Union, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 500 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE&ISO
Model Number
CD1
Name:
Electric Wire Rope Hoist
Capcity:
0.25t- 50t
Lifting Height:
3m-30m
Voltage:
220v-440v,50HZ/60HZ
Material:
Steel
Usage:
Lifting Goods
Color:
Customized
Structure Type:
Running Type Or Fixed Type
Highlight:

5T Electric Wire Rope Hoist

,

Lifting Goods Electric Wire Rope Hoist

,

Electric Wire Rope Hoist CD MD Model

Product Description

1T 5T Lifting Goods Electric Wire Rope Hoist Leading Crane With Customized Color CD MD Model





CD1 MD1 ELECTRIC WIRE ROPE HOIST WITH TROLLEY OR FIXED TYPE



CD1 MD1 Model, Electric Wire Rope Hoist with Trolley or Fixed Type

Small-sized lifting equipment which can be mounted on single beam cranes, bridge cranes, gantry cranes and arm cranes.

Widely used in factories, mines, harbors, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.



Features and advantages:



1. CD1/MD1 model can be used as a winch after slight modification.

2. Choose single or double lifting speed, even multi-speed with frequency inverters.

3. The suitable rail for low-headroom hoist is H-type rail, and I-type also is available.

4. The recommended rope reeving of the kind of hoist is 2/1, 4/2 or 4/1.

5. The normal traveling speed is 20m/min, or 12.5m/min, 16m/min, 25m/min, 32m/min by request.

6. The normal rail gauge of the double-girder hoist is 1200mm, 1500mm, 1800mm, 2100mm and 2300mm.

7. The normal traveling speed is 20m/min, or 30m/min, 45m/min by request.

8. CD1 has only a normal speed which can satisfy Normal application.

9. MD1 provides two speeds: Normal speed and Low speed. It can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc at a low speed.



Product technical data:



Model Lifting Capacity(t) Lifting Height(m) Lifting Speed(m/min) Running Speed(m/min) Wire Rope Type Dia. Of Wire Rope(mm) I Beam Track Type Working Duty (H)Lifting Height Running Motor
Power(kw) R.P.M(r/min) Power Supply Power(kw) R.P.M(r/min) Power Supply
CD1-0.25 0.25 3-9 8 20 6*19 3.6 16-22b M3 0.4 1380 220-440V 50/60HZ 3 Phase 0.06 1400 220-440V 50/60HZ 3 Phase
CD1-0.5 0.5 6-12 8 20 6*37+1 4.8 16-28b M3 0.8 1380 0.2 1380
CD1-1 1 6-30 8 20 6*37+1 7.4 16-28b M3 1.5 1380 0.2 1380
CD1-2 2 6-30 8 20 6*37+1 11 20a-32c M3 3 1380 0.4 1380
CD1-3 3 6-30 8 20 6*37+1 13 20a-32c M3 4.5 1380 0.4 1380
CD1-5 5 6-30 8 20 6*37+1 15 25a-63c M3 7.5 1380 0.8 1380
CD1-10 10 6-30 7 20 6*37+1 15 25a-63c M3 13 1380 0.8*2 1380
CD1-16 16 6-30 3.5 20 6*37+1 15 45a-63c M3 13 1380 0.8*2 1380
CD1-20 20 6-30 3.5 20 6*37+1 20 50a-63c M3 13 1380 0.8*2 1380

Model Lifting Capacity(t) Lifting Height(m) Lifting Speed(m/min) Running Speed(m/min) Wire Rope Type Dia. Of Wire Rope(mm) I Beam Track Type Working Duty (H)Lifting Height Running Motor
Power(kw) R.P.M(r/min) Power Supply Power(kw) R.P.M(r/min) Power Supply
MD1-0.25 0.25 3-9 8/0.8 20 6*19 3.6 16-22b M3 0.4 1380 220-440V 50/60HZ 3 Phase 0.06 1400 220-440V 50/60HZ 3 Phase
MD1-0.5 0.5 6-12 8/0.8 20 6*37+1 4.8 16-28b M3 0.2/0.8 1380 0.2 1380
MD1-1 1 6-30 8/0.8 20 6*37+1 7.4 16-28b M3 0.2/1.5 1380 0.2 1380
MD1-2 2 6-30 8/0.8 20 6*37+1 11 20a-32c M3 0.4/3 1380 0.4 1380
MD1-3 3 6-30 8/0.8 20 6*37+1 13 20a-32c M3 0.4/4.5 1380 0.4 1380
MD1-5 5 6-30 8/0.8 20 6*37+1 15 25a-63c M3 0.8/7.5 1380 0.8 1380
MD1-10 10 6-30 7/0.7 20 6*37+1 15 25a-63c M3 1.5/13 1380 0.8*2 1380
MD1-16 16 6-30 3.5/0.35 20 6*37+1 15 45a-63c M3 1.5/13 1380 0.8*2 1380
MD1-20 20 6-30 3.5/0.35 20 6*37+1 20 50a-63c M3 1.5/13 1380 0.8*2 1380

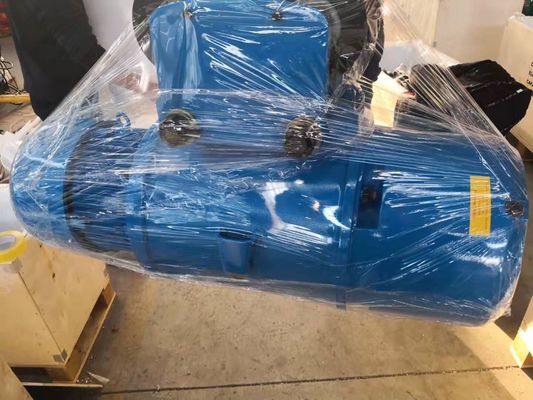

Product show:



1T 5T Lifting Goods Electric Wire Rope Hoist CD MD Model 01T 5T Lifting Goods Electric Wire Rope Hoist CD MD Model 1
