| Product Name: | 220V 3Phase 5 Ton Eletric Chain Hoist | Capacity: | 5 Ton |
|---|---|---|---|
| Lifting Height: | 3/6/9/12/18m Or At Request | Power Supply: | 220V-690V 3Phase 50/60Hz |
| Color: | Yellow/orange Or At Request | OEM: | Yes |
| High Light: | Eletric Chain Hoist 3Phase,220V Eletric Chain Hoist,5 Ton Capacity Eletric Chain Hoist |
||
220V 3Phase 5 Ton Eletric Chain Hoist
Application:
The electric chain hoist is an important lifting equipment in material handling. It is widely used in construction, mining, maritime, factory, warehouse, logistics, port and so on.
Main advantages:
Structure Features
The body chooses to use high strength tensile shell or die casting aluminum case, extrusion molding process thin-walled precision manufacturing, small size, low weight, high strength.
Seperate speed-adjusting system, seal the level 2 coaxial transmission speed gear mechanism with long-service oil bath lubrication system.
The electric hoist powder metallurgy clutch is used for overload protection device. The brake disc adopts dc magnetic field, braking torque, stable and rapid, the noise is small.
Lifting motor
Using high performance lifting motor which can last to work 30 minutes with full loading, and has Grade B insulation.
Lifting chain
The chain of the low carbon steel alloy makes the chain more toughness, strong and wear-resisting, ensuring the safety during work.
Lifting chain hardened surface can prevent the damage of the core materials and products to soften, thus make lifting chain keep for a long time high performance.
The chain can be also extended according to the request of customers' order, and allows you to use more conveniently.
The chain is equipped with chain bag which makes the electric hoist looks clean, tidy and beautiful. the chain bag contains antirust oil, so the chain is not easy to rust , so as to extend the service life of the electric hoist.
Double brake system
Two sets of brake systems, not only reduce the brake failure possibility, but also increase its safety and benefit for heat radiation.
Variable speed tooth
The standard chain electric hoist mainly use the reliable helical gear, it can prolong service lifting through reducing the meshing impact and vibration.
Special design of gear enhance the durability of gear, And gear is made of alloy steel, through professional fine heat treatment obtain the biggest strength.
Control handle with low voltage
The standard low-voltage on chain hoist handle is 24v-36v. Low voltage can effectively protect the operator to prevent a shock damage.(24V-36V is compulsive National standard.
Product technical data:
| Model | Lifting Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Running Speed(m/min) | Lifting Motor | Running Motor | I-Beam(mm) | ||||
| Power(kw) | R.P.M(r/min) | Power Supply | Power(kw) | R.P.M(r/min) | Power Supply | ||||||
| SY-A0.5-1 | 0.5 | 3-9 | 6.8 | 12.2 | 0.75 | 1440 | 220-440V 50/60HZ 3Phase | 0.12 | 1440 | 220-440V 50/60HZ 3Phase | 58-130 |
| SY-A1-1 | 1 | 3-9 | 6.6 | 10/20 | 1.5 | 1440 | 0.4 | 1440 | 80-160 | ||
| SY-A1-2 | 1 | 3-9 | 3.4 | 10/20 | 0.75 | 1440 | 0.4 | 1440 | 80-160 | ||
| SY-A2-1 | 2 | 3-9 | 6.6 | 10/20 | 3.0 | 1440 | 0.4 | 1440 | 82-178 | ||
| SY-A2-2 | 2 | 3-9 | 3.3 | 10/20 | 1.5 | 1440 | 0.4 | 1440 | 82-178 | ||
| SY-A3-1 | 3 | 3-9 | 5.4 | 10/20 | 3.0 | 1440 | 0.4 | 1440 | 100-180 | ||
| SY-A3-2 | 3 | 3-9 | 4.4 | 11/21 | 3.0 | 1440 | 0.4 | 1440 | 100-178 | ||
| SY-A3-3 | 3 | 3-9 | 2.4 | 11/21 | 1.5 | 1440 | 0.4 | 1440 | 110-178 | ||
| SY-A5-2 | 5 | 3-9 | 2.7 | 10/20 | 3.0 | 1440 | 0.75 | 1440 | 110-180 | ||
| SY-A7.5-3 | 7.5 | 3-9 | 1.8 | 10/20 | 3*2 | 1440 | 0.75 | 1440 | 120-180 | ||
| SY-A10-4 | 10 | 3-9 | 2.7 | 10/20 | 3*2 | 1440 | 0.75 | 1440 | 150-202 | ||
| SY-A15-6 | 15 | 3-9 | 1.9 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| SY-A20-8 | 20 | 3-9 | 1.4 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| SY-A25-8 | 25 | 3-9 | 1.1 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| SY-A30-10 | 30 | 3-9 | 0.9 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| SY-A35-16 | 35 | 3-9 | 0.7 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||

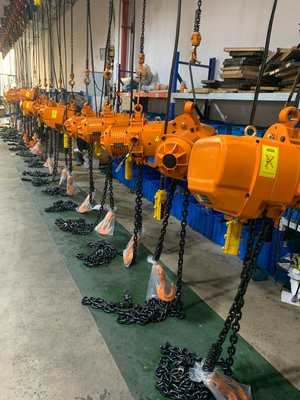

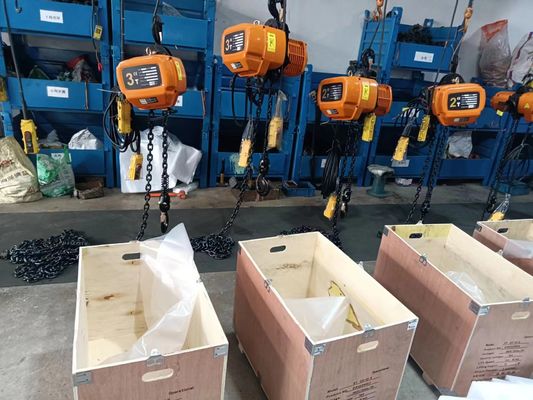

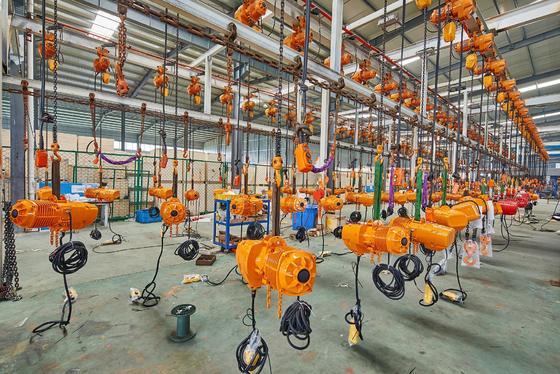

Factory show:
