5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control

Large Image : 5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control

Product Details:

Place of Origin:	China
Brand Name:	JCYC
Certification:	CE ISO9001 manufacturing licence
Model Number:	MD1

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	negotiable
Packaging Details:	Plywood Case
Delivery Time:	15-20 working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Product Name:	5 Ton MD1 Electric Trolley Electric Wire Rope Hoist With Remote Control	Capacity:	5t
Lifting Height:	3m-24m	Lifting Speed:	8/0.8 M/min
Application:	Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane, All Situations	Vlotage:	220V/380V/440V/660V
Highlight:	Electric Trolley Wire Rope Hoist , Remote Control Electric Wire Rope Hoist , 5 Ton MD1 Wire Rope Hoist

5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control

Brief Description:

The electric wire rope hoist MD1 model have features of compact, light, small-sized shape and smooth operation. It can be used not only on the overhead rails, but also be used in conjunction with many types of electric or manual cranes such as the single-grider crane, the double-grider crane, the cantilever crane and the gantry cranes. The eletric hoist model MD1 with double lifting speeds should be used in case where the hoist model CD1 can not meet the requirements for fine abjustments during recision operations.

Producet Technical Parameters:

Model	Lifting Capacity(t)	Lifting Speed(m/min)	Running Speed(m/min)	Wire Rope Type	Dia. Of Wire Rope(mm)	(H)Lifting Height
Model	Lifting Capacity(t)	Lifting Speed(m/min)	Running Speed(m/min)	Wire Rope Type	Dia. Of Wire Rope(mm)	Power(kw)	R.P.M(r/min)	Power Supply
MD1-0.25	0.25	8/0.8	20	6*19	3.6	0.4	1380	220-690V 50/60HZ 3 Phase
MD1-0.5	0.5	8/0.8	20	6*37+1	4.8	0.2/0.8	1380
MD1-1	1	8/0.8	20	6*37+1	7.4	0.2/1.5	1380
MD1-2	2	8/0.8	20	6*37+1	11	0.4/3	1380
MD1-3	3	8/0.8	20	6*37+1	13	0.4/4.5	1380
MD1-5	5	8/0.8	20	6*37+1	15	0.8/7.5	1380
MD1-10	10	7/0.7	20	6*37+1	15	1.5/13	1380
MD1-16	16	3.5/0.35	20	6*37+1	15	1.5/13	1380
MD1-20	20	3.5/0.35	20	6*37+1	20	1.5/13	1380

Questions before make quotation:

Capacity?
Lifting height?
what is lifting material? How about working environment?
Power supply and control voltage?

Product show:

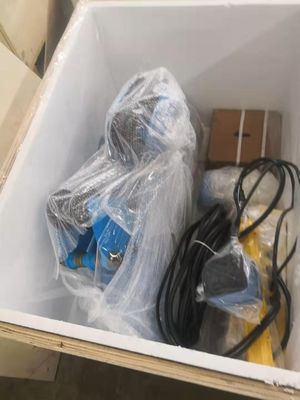

5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control 0

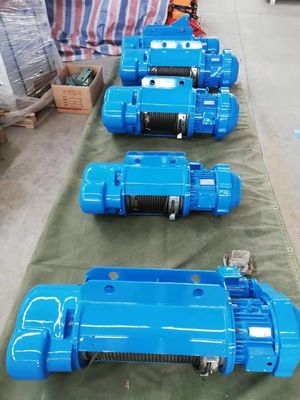

5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control 1

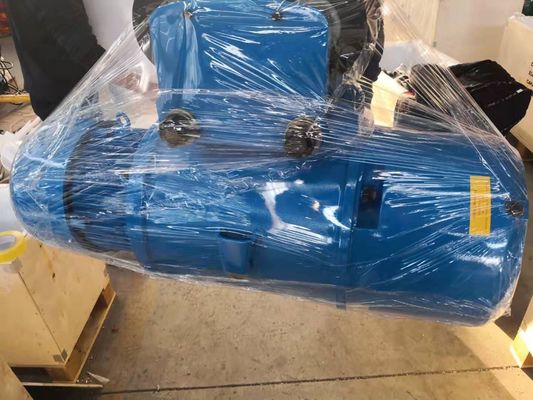

5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control 2

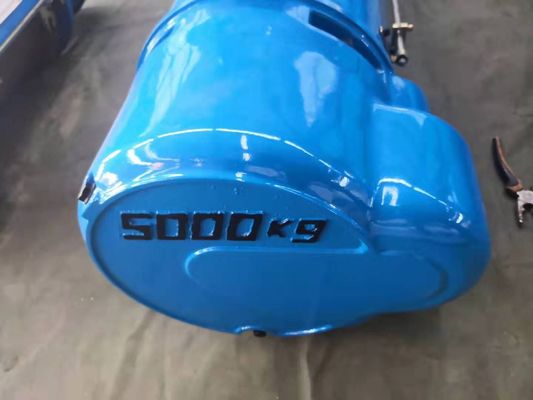

5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control 3

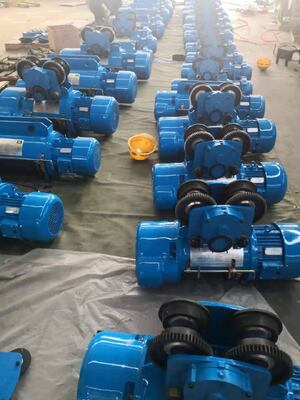

5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control 4

Exhibition

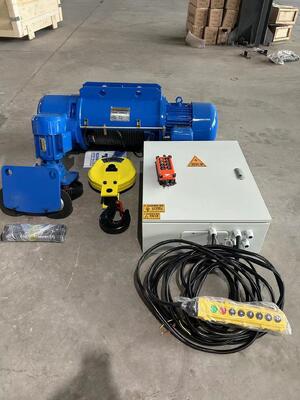

5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control 5
