1 Ton 2 Ton 3 Ton 5 Ton 10 Ton Electric Wire Rope Hoist CD MD

Products

1 Ton 2 Ton 3 Ton 5 Ton 10 Ton Electric Wire Rope Hoist CD MD

MOQ:	1 piece
Price:	negotiable
Standard Packaging:	Wooden Case
Delivery Period:	30 working day
Payment Method:	T/T
Supply Capacity:	1000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

CE ISO9001 manufacturing licence

Model Number

CD MD

Name:

1 Ton 2 Ton 3 Ton 5 Ton 10 Ton Electric Wire Rope Hoist CD MD

Capacity:

1t-100t

Lift Height:

Standard 6/9/12/18m Or At Request

Lift Speed:

8m/min; 0.8/8 M/min

Travel Speed:

20 M/min

Usage:

Railways, Docks, Industrial And Mining Enterprises, Warehouses And Other Construction Areas

Color:

Yellow, Blue, Red, Orange...

Highlight:

8m/min Electric Wire Rope Hoist

50/60HZ 3 Phase Wire Rope Hoist

Construction lifting Wire Rope Hoist

Product Description

1 Ton 2 Ton 3 Ton 5 Ton 10 Ton Electric Wire Rope Hoist CD MD

Product Introduction

CD1 MD1 Type on sale electric wire rope hoist with capacity varied from 0.25t to 32t. It has advantages of high working efficiency, fast lifting speed, durable and easy maintenance. It is our main hot sale electric hoist, contact me for best price.

This type wire rope electric hoist used separately or in combination with single beam, hoist double girder crane, gantry crane , cantilever crane and others, widely used in railways, docks, industrial and mining enterprises, warehouses and other construction areas.

Technical configuration

Model	Lifting Capacity(t)	Lifting Speed(m/min)	Running Speed(m/min)	Wire Rope Type	Dia. Of Wire Rope(mm)	(H)Lifting Height
Model	Lifting Capacity(t)	Lifting Speed(m/min)	Running Speed(m/min)	Wire Rope Type	Dia. Of Wire Rope(mm)	Power(kw)	R.P.M(r/min)	Power Supply
CD1-0.25	0.25	8	20	6*19	3.6	0.4	1380	220-440V 50/60HZ 3 Phase
CD1-0.5	0.5	8	20	6*37+1	4.8	0.8	1380
CD1-1	1	8	20	6*37+1	7.4	1.5	1380
CD1-2	2	8	20	6*37+1	11	3	1380
CD1-3	3	8	20	6*37+1	13	4.5	1380
CD1-5	5	8	20	6*37+1	15	7.5	1380
CD1-10	10	7	20	6*37+1	15	13	1380
CD1-16	16	3.5	20	6*37+1	15	13	1380
CD1-20	20	3.5	20	6*37+1	20	13	1380

Model	Lifting Capacity(t)	Lifting Speed(m/min)	Running Speed(m/min)	Wire Rope Type	Dia. Of Wire Rope(mm)	(H)Lifting Height
Model	Lifting Capacity(t)	Lifting Speed(m/min)	Running Speed(m/min)	Wire Rope Type	Dia. Of Wire Rope(mm)	Power(kw)	R.P.M(r/min)	Power Supply
MD1-0.25	0.25	8/0.8	20	6*19	3.6	0.4	1380	220-440V 50/60HZ 3 Phase
MD1-0.5	0.5	8/0.8	20	6*37+1	4.8	0.2/0.8	1380
MD1-1	1	8/0.8	20	6*37+1	7.4	0.2/1.5	1380
MD1-2	2	8/0.8	20	6*37+1	11	0.4/3	1380
MD1-3	3	8/0.8	20	6*37+1	13	0.4/4.5	1380
MD1-5	5	8/0.8	20	6*37+1	15	0.8/7.5	1380
MD1-10	10	7/0.7	20	6*37+1	15	1.5/13	1380
MD1-16	16	3.5/0.35	20	6*37+1	15	1.5/13	1380
MD1-20	20	3.5/0.35	20	6*37+1	20	1.5/13	1380

Features and advantages

CD1/MD1 type hoist can be used as a winch if with slight modification.
Choose single or double lifting speed, even multi-speed possible with frequency inverters.
The suitable rail for low-headroom hoist is H-type rail, and I-type also is available.
The recommended rope reeving of the kind of hoist is 2/1, 4/2 or 4/1.
The normal rail gauge of the double-girder hoist is 1200mm, 1500mm, 1800mm, 2100mm and 2300mm or at request.
The normal traveling speed is 20m/min, or 30m/min, 45m/min by request.
CD1 has only a normal speed which can satisfy Normal application. MD1 provides two speeds: Normal speed and low speed. With low speed it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc.

Product show:

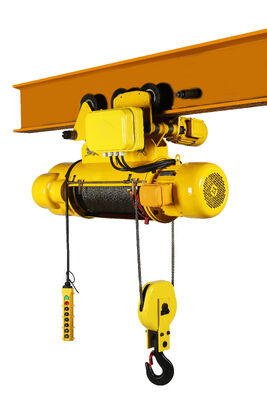

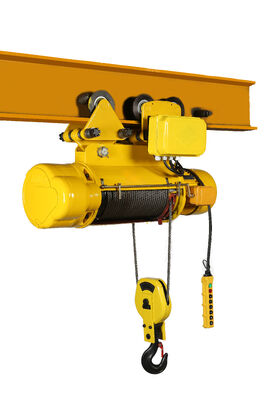

1 Ton 2 Ton 3 Ton 5 Ton 10 Ton Electric Wire Rope Hoist CD MD 0

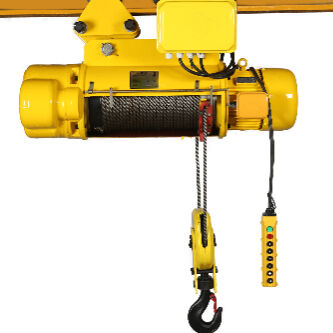

1 Ton 2 Ton 3 Ton 5 Ton 10 Ton Electric Wire Rope Hoist CD MD 1

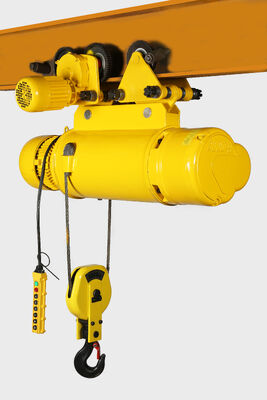

1 Ton 2 Ton 3 Ton 5 Ton 10 Ton Electric Wire Rope Hoist CD MD 2

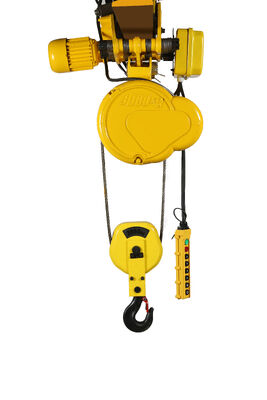

1 Ton 2 Ton 3 Ton 5 Ton 10 Ton Electric Wire Rope Hoist CD MD 3
