European Type Single Girder Double Speed Electric Wire Rope Hoist

MOQ: 1 pcs
Price: 2200usd - 2000usd
Standard Packaging: plywood case
Delivery Period: 10 -15 working days
Payment Method: L/C,T/T,Western Union,D/A,D/P,MoneyGram
Supply Capacity: 500 units per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE&ISO
Model Number
SHSL
Name:
European Type Single Girder Double Speed Electric Wire Rope Hoist
Capacity:
3.2t; 5t; 10t; 20t
Standard Lifting Height:
6/9/12/18M
Lifting Speed:
Double Speed, Frequency Controlled Speed
Working Duty:
M5
Optional:
Wireless Control
Girder:
Single Girder; Double Girder
Highlight:

Electric Wire Rope Hoist European Type

,

Double Speed Electric Wire Rope Hoist

,

M7 Electric Wire Rope Hoist

Product Description
European Type Single Girder Double Speed Electric Wire Rope Hoist
Product Introduction

European Type Electric Wire Rope Hoist

It is a up to date developed product by combining and applying the advanced German technologies. It has compact structure and its frame is in rectangular shape. Its drum is made of seamless steel pipe. Its planetary gearbox, which is in the hoisting drum, electromotor and electric control box is in beeline collocation. The hoist has overload protection , overheating protection and phase relay protection devices. Its modular design can realize the seamless connection with frequency inverter, automatic weighing system and automatic detection system.

Application

It is widely used for overhead crane, gantry crane etc. heavy duty industry, light duty industry especially highly resticted environment plants.

Features
  • Easy and adaptable wire rope hoist
  • Rugged and compact
  • Modular construction and easy maintenance
  • Light weight
  • Small volumn
  • Clearance height minimum
Configuration
Capacity
(t)		 Lifting Height
(m)		 Lifting Speed
(m/min)		 Lifting Motor
(kw)		 Travelling Speed
(m/min)		 TravellingMotor
(kw)		 Lifting System
(FEM/ISO)		 Travelling System
(FEM/ISO)		 I-Beam Width
(mm)
2 6/9/12/15/18 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 150-300
3.2 6/9/12/15/18 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 150-300
5 6/9/12/15/18 5/0.8 6.1/1 5/20 0.37 2M M5 2M M5 200-350
6.3 6/9/12/15/18 5/0.8 6.1/1 5/20 0.37 1Am M4 2M M5 200-350
8 6/9/12/15/18 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 200-410
10 6/9/12/15/18 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 200-410
12.5 6/9/12/15/18 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 200-410
16 6/9/12/15/18 4/0.6 16/2.6 5/20 0.75*2 2M M5 2M M5 300-450
20 6/9/12/15/18 4/0.6 16/2.6 5/20 0.75*2 1Am M4 2M M5 300-450
8 20/24/28/32/36 8/1.3 12.5/2 5/20 0.75 2M M5 2M M5 200-410
10 20/24/28/32/36 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200-410
12.5 20/24/28/32/36 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 200-410

Product show

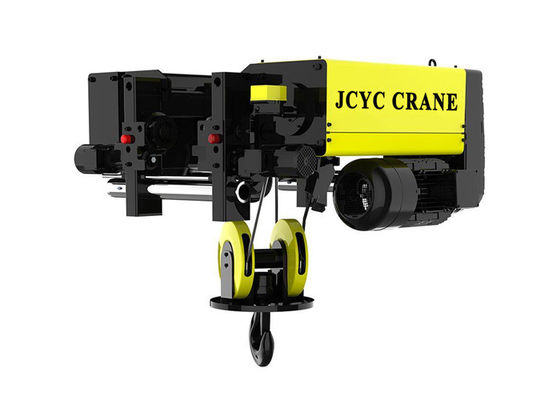

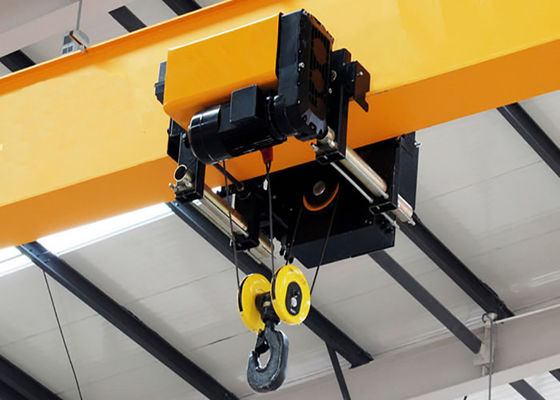

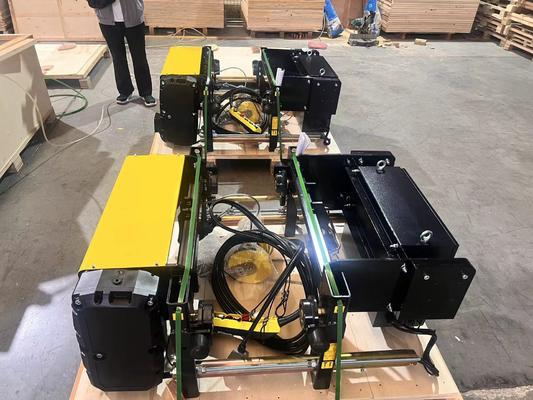

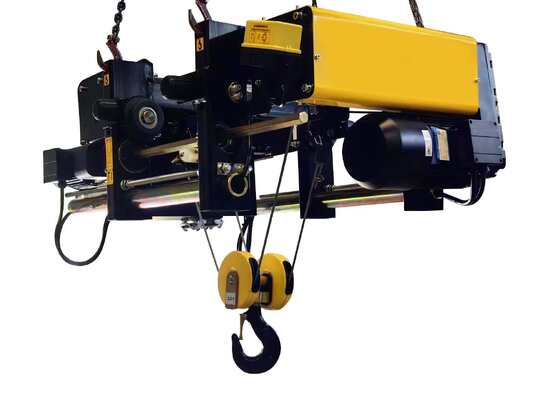

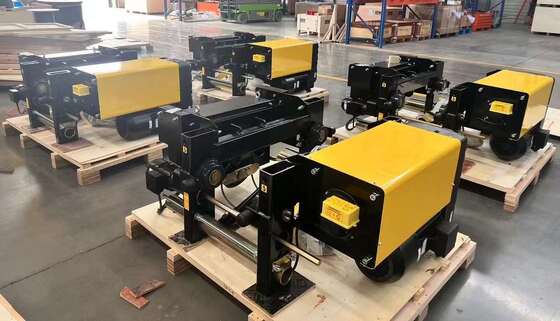

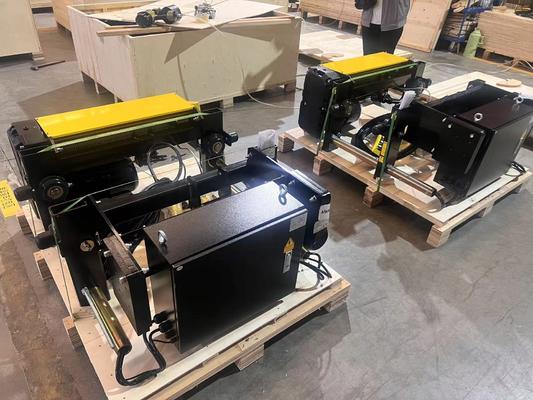

European Type Single Girder Double Speed Electric Wire Rope Hoist 0

European Type Single Girder Double Speed Electric Wire Rope Hoist 1

European Type Single Girder Double Speed Electric Wire Rope Hoist 2

European Type Single Girder Double Speed Electric Wire Rope Hoist 3

European Type Single Girder Double Speed Electric Wire Rope Hoist 4

European Type Single Girder Double Speed Electric Wire Rope Hoist 5
