Remote Control 25t 8M/Min EOT Wire Rope Crane Hoist
  • name

Remote Control 25t 8M/Min EOT Wire Rope Crane Hoist

MOQ: 1 piece
Price: negotiable
Standard Packaging: Plywood Case
Delivery Period: 30 working day
Supply Capacity: 1000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE ISO9001 manufacturing licence
Model Number
CD1
Product Name:
Mini Electric Wire Rope Hoist 1 Ton With Remote Control
Work Load:
1t-25t
Lifting High:
6/9/12/18m Or At Request
Control Voltage:
24/36/48V
Application:
EOT Crane
Lifting Speed:
0.8/8 M/min
Highlight:

EOT Wire Rope Crane Hoist

,

8M/Min Wire Rope Crane Hoist

,

Low Headroom Wire Rope Hoists

Product Description

Mini Electric Wire Rope Hoist 1 Ton With Remote Control





Product Introduction



CD1 model electric wire rope hoist has light weight. Capacity is from 0.25t to 25t. It has many advantages, such as high working efficiency, fast lifting speed, durable and easy maintenance.

Small-sized lifting equipment which can be mounted on single beam, bridge, gantry and arm cranes.

CD1 model electric wire rope hoist is widely used in factories, mines, harbors, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.



Product Features



1. CD1/MD1 model can be used as a winch after slight modification.

2. Choose single or double lifting speed, even multi-speed with frequency inverters.

3. The suitable rail for low-headroom hoist is H-type rail, and I-type also is available.

4. The recommended rope reeving of the kind of hoist is 2/1, 4/2 or 4/1.

5. The normal traveling speed is 20m/min, or 12.5m/min, 16m/min, 25m/min, 32m/min by request.

6. The normal rail gauge of the double-girder hoist is 1200mm, 1500mm, 1800mm, 2100mm and 2300mm.

7. The normal traveling speed is 20m/min, or 30m/min, 45m/min by request.

8. CD1 has only a normal speed which can satisfy Normal application.

9. MD1 provides two speeds: Normal speed and Low speed. It can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc at a low speed.



Product technical parameters



Model Lifting Capacity(t) Lifting Speed(m/min) Running Speed(m/min) Wire Rope Type Dia. Of Wire Rope(mm) (H)Lifting Height
Power(kw) R.P.M(r/min) Power Supply
CD1-0.25 0.25 8 20 6*19 3.6 0.4 1380 220-440V 50/60HZ 3 Phase
CD1-0.5 0.5 8 20 6*37+1 4.8 0.8 1380
CD1-1 1 8 20 6*37+1 7.4 1.5 1380
CD1-2 2 8 20 6*37+1 11 3 1380
CD1-3 3 8 20 6*37+1 13 4.5 1380
CD1-5 5 8 20 6*37+1 15 7.5 1380
CD1-10 10 7 20 6*37+1 15 13 1380
CD1-16 16 3.5 20 6*37+1 15 13 1380
CD1-20 20 3.5 20 6*37+1 20 13 1380

Model Lifting Capacity(t) Lifting Speed(m/min) Running Speed(m/min) Wire Rope Type Dia. Of Wire Rope(mm) (H)Lifting Height
Power(kw) R.P.M(r/min) Power Supply
MD1-0.25 0.25 8/0.8 20 6*19 3.6 0.4 1380 220-440V 50/60HZ 3 Phase
MD1-0.5 0.5 8/0.8 20 6*37+1 4.8 0.2/0.8 1380
MD1-1 1 8/0.8 20 6*37+1 7.4 0.2/1.5 1380
MD1-2 2 8/0.8 20 6*37+1 11 0.4/3 1380
MD1-3 3 8/0.8 20 6*37+1 13 0.4/4.5 1380
MD1-5 5 8/0.8 20 6*37+1 15 0.8/7.5 1380
MD1-10 10 7/0.7 20 6*37+1 15 1.5/13 1380
MD1-16 16 3.5/0.35 20 6*37+1 15 1.5/13 1380
MD1-20 20 3.5/0.35 20 6*37+1 20 1.5/13 1380



Product show:

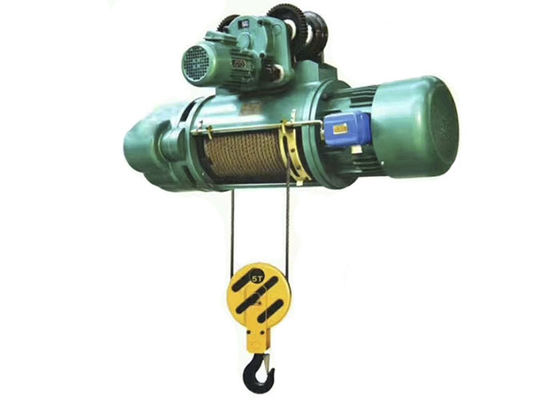

Remote Control 25t 8M/Min EOT Wire Rope Crane Hoist 0
