Capacity: | 5T/10T/20T | Lifting Height: | 9m,12m,18m,24m |
---|---|---|---|
Voltage: | 220v-440v,50HZ/60HZ | Color: | As Per Request |
Duty Group: | ISO M3 - ISO M5 | Girder: | Single Girder/Double Girder |
High Light: | 5 Ton Electric Wire Rope Hoist,18m Wire Rope Hoist |
Electric Wire Cable Rope hoist 5T Electric Single Girder Hoist 12m / 18m Lifting Height High Working Efficiency

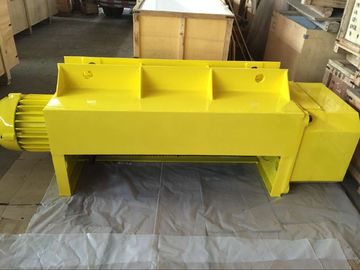

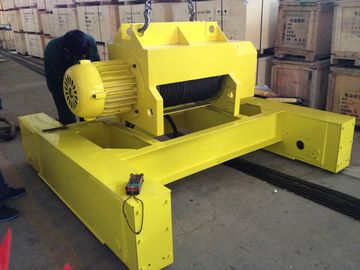

CD Model, Electric Wire Rope Hoist with Trolley or Fixed Type
Small-sized lifting equipment which can be mounted on single beam cranes, bridge cranes, gantry cranes and arm cranes.
Widely used in factories, mines, harbors, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
Model | Lifting Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Running Speed(m/min) | Wire Rope Type | Dia. Of Wire Rope(mm) | I Beam Track Type | Working Duty | (H)Lifting Height | Running Motor | ||||
Power(kw) | R.P.M(r/min) | Power Supply | Power(kw) | R.P.M(r/min) | Power Supply | |||||||||
CD1-0.25 | 0.25 | 3-9 | 8 | 20 | 6*19 | 3.6 | 16-22b | M3 | 0.4 | 1380 | 220-440V 50/60HZ 3 Phase | 0.06 | 1400 | 220-440V 50/60HZ 3 Phase |
CD1-0.5 | 0.5 | 6-12 | 8 | 20 | 6*37+1 | 4.8 | 16-28b | M3 | 0.8 | 1380 | 0.2 | 1380 | ||
CD1-1 | 1 | 6-30 | 8 | 20 | 6*37+1 | 7.4 | 16-28b | M3 | 1.5 | 1380 | 0.2 | 1380 | ||
CD1-2 | 2 | 6-30 | 8 | 20 | 6*37+1 | 11 | 20a-32c | M3 | 3 | 1380 | 0.4 | 1380 | ||
CD1-3 | 3 | 6-30 | 8 | 20 | 6*37+1 | 13 | 20a-32c | M3 | 4.5 | 1380 | 0.4 | 1380 | ||
CD1-5 | 5 | 6-30 | 8 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 7.5 | 1380 | 0.8 | 1380 | ||
CD1-10 | 10 | 6-30 | 7 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 13 | 1380 | 0.8*2 | 1380 | ||
CD1-16 | 16 | 6-30 | 3.5 | 20 | 6*37+1 | 15 | 45a-63c | M3 | 13 | 1380 | 0.8*2 | 1380 | ||
CD1-20 | 20 | 6-30 | 3.5 | 20 | 6*37+1 | 20 | 50a-63c | M3 | 13 | 1380 | 0.8*2 | 1380 | ||
