Product Details:
Payment & Shipping Terms:
|
Product Name: | CD1 Electric Wire Rope Hoist | Motor Brand: | Nanjing Special Motor |
---|---|---|---|
Color: | Blue /Yellow | Lift Speed: | 8m/min (as Customised) |
Capacity: | 2t-32t | Lifting Height: | 6/9/12/24m |
High Light: | electric lifting hoist,stainless steel wire rope hoist |

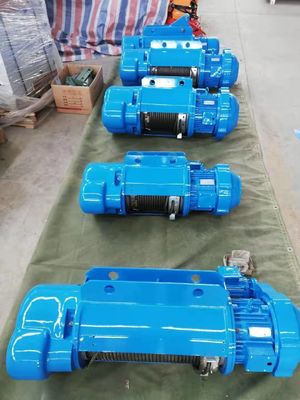

CD1 Type Wire Rope Electric Hoist Customized Popular Model 380V
Product Description
Product Application
The CD and MD type wire rope electric hoist is a kind of light and small lifting equipment, which can be installed on single beam crane, bridge crane, gantry crane, arm cranes, cantilever cranes, etc. It can also be used as a winch. It is widely used in factories, mines, harbors, warehouses, cargo storage areas and shops. CD has one speed, MD has two speed.
Our factory can produce 1-50 tons of wire rope electric winch hoist, including CD and MD type, low headroom hoist, explosion proof electric hoist, European type electric hoist and chain hoist. The hoist can be with pendent control and wireless remote control. Totally can be customised strictly according to your specific requirement.
Product Technical parameters
Model | Lifting Capacity (t) | Lifting Height (m) | Lifting Speed (m/min) | Running Speed (m/min) | Wire Rope Type | Dia.of Wire Rope (mm) | I Beam Track Type | Working Duty | Lifting Motor | Running Motor | ||||
Power(kw) | R.P.M ( r/min) | Power Supply | Power(kw) | R.P.M ( r/min) | Power Supply | |||||||||
CD1-0.25 | 0.25 | 3-9 | 8 | 20 | 6*19 | 3.6 | 16-22b | M3 | 0.4 | 1380 | 220-440V 50/60HZ 3Phase | 0.06 | 1400 | 220-440V 50/60HZ 3Phase |
CD1-0.5 | 0.5 | 6-12 | 8 | 20 | 6*37+1 | 4.8 | 16-28b | M3 | 0.8 | 1380 | 0.2 | 1380 | ||
CD1-1 | 1 | 6-30 | 8 | 20 | 6*37+1 | 7.4 | 16-28b | M3 | 1.5 | 1380 | 0.2 | 1380 | ||
CD1-2 | 2 | 6-30 | 8 | 20 | 6*37+1 | 11 | 20a-32c | M3 | 3 | 1380 | 0.4 | 1380 | ||
CD1-3 | 3 | 6-30 | 8 | 20 | 6*37+1 | 13 | 20a-32c | M3 | 4.5 | 1380 | 0.4 | 1380 | ||
CD1-5 | 5 | 6-30 | 8 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 7.5 | 1380 | 0.8 | 1380 | ||
CD1-10 | 10 | 6-30 | 7 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 13 | 1400 | 0.8*2 | 1380 | ||
CD1-16 | 16 | 6-30 | 3.5 | 20 | 6*37+1 | 15 | 45a-63c | M2 | 13 | 1400 | 0.8*2 | 1380 | ||
CD1-20 | 20 | 6-30 | 3.5 | 20 | 6*37+1 | 20 | 50a-63c | M2 | 13 | 1400 | 0.8*2 | 1380 |
