Product Details:
Payment & Shipping Terms:
|
| Product Name: | Under Slung Hoist Electric Wire Rope Hoist With Electromagnetic Brake | Usage: | Lifting And Moving Materials |
|---|---|---|---|
| Warranty: | 12 Months | Capacity: | 2 Ton |
| Lifting Height: | 6m, 9m, 12m, 18m, 30m Etc. | Power Supply: | 380V 3P 50/60HZ |
| High Light: | electric lifting hoist,stainless steel wire rope hoist |
||

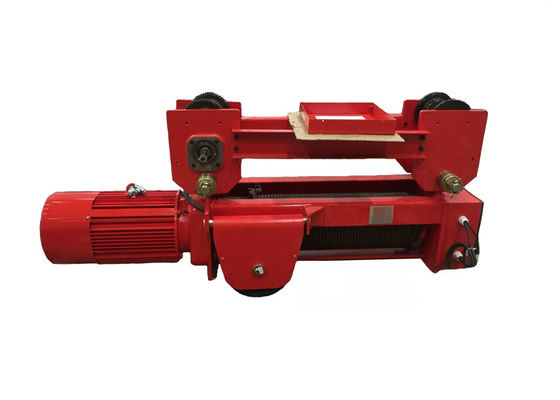

Under Slung Hoist Electric Wire Rope Hoist With Electromagnetic Brake
Product Introduction
Characters of under-slung hoist: advanced performance structure, small volume, light weight, reliable performance, easy to handle, wide using scope, convenient to lift heavies, load and unload, maintain equipment, and lift cargos, and it also can be installed on a suspended I-beam, curve track, cantilever crane track and fixed point to lift heavies. It’s the best helper for contemporary enterprises to manufacture products and carry materials.
Product Advantages
* Compact and high efficient motor, low power consumption.
* Most tensile safety hooks: Both the top and bottom hooks are made of high tensile alloy steel with special treatment; It guarantees the hook will not break and deform gradually under a sudden extra-load.
* Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
Product Technical parameters
JCYC-SHS-A 2/1 Electric Wire Rope Hoist
| Model | Capacity (t) | Lifting motor (kW) | Lifting speed (m/min) |
Travel motor (kW) | Travel speed (m/min) |
H Lifting Height | ||||||
| 6m | 9m | 12m | 18m | 24m | 30m | |||||||
| SHS-A 1t | 1 | 1.5 | 8.4 | 0.4 0.4/0.13 | 20 | L0 | 384 | 481 | 578 | 772 | 966 | 1160 |
| 1.5/0.4 | 8.4/2.1 | 20/6.7 | L1 | 584 | 681 | 778 | 972 | 1166 | 1360 | |||
| S | 96 | 144 | 192 | 288 | 384 | 480 | ||||||
| SHS-A 2t | 2 | 3 | 7.2 | 0.4 0.4/0.13 | 20 | L0 | 458 | 562 | 716 | 924 | 1132 | 1340 |
| 3/1 | 7.2/2.4 | 20/6.7 | L1 | 667 | 771 | 925 | 1133 | 1341 | 1549 | |||
| S | 104 | 156 | 209 | 313 | 417 | 521 | ||||||
| SHS-A 3.2t | 3.2 | 4.5 | 7 | 0.4 0.4/0.13 | 20 | L0 | 490 | 599 | 758 | 976 | 1194 | 1412 |
| 4.5/1.1 | 7/1.6 | 20/6.7 | L1 | 718 | 827 | 986 | 1204 | 1422 | 1640 | |||
| S | 110 | 164 | 219 | 328 | 437 | 546 | ||||||
| SHS-A 5t | 5 | 7.5 | 7.6 | 0.75 0.75/0.25 | 20 | L0 | 520 | 635 | 829 | 1058 | 1287 | 1516 |
| 7.5/2.0 | 7.6/1.8 | 20/6.7 | L1 | 792 | 907 | 1101 | 1330 | 1559 | 1788 | |||
| S | 118 | 177 | 229 | 344 | 458 | 572 | ||||||
| SHS-A 8t | 8 | 13 | 8 | 0.75 0.75/0.25 | 20 | L0 | 572 | 689 | 885 | 1118 | 1351 | 1584 |
| 13/3.4 | 8/2 | 20/6.7 | L1 | 888 | 1005 | 1201 | 1434 | 1667 | 1900 | |||
| S | 117 | 175 | 233 | 350 | 466 | 583 | ||||||
| SHS-A 10t | 10 | 13 | 6.4 | 0.75 0.75/0.25 | 20 | L0 | 572 | 689 | 885 | 1118 | 1351 | 1584 |
| 13/3.4 | 6.4/1.6 | 20/6.7 | L1 | 888 | 1005 | 1201 | 1434 | 1667 | 1900 | |||
| S | 117 | 175 | 233 | 350 | 466 | 583 | ||||||
JCYC-SHS-C 4/1 Electric Wire Rope Hoist
| Model | Capacity (t) | Lifting motor (kW) | Lifting speed (m/min) |
Travel motor (kW) | Travel speed (m/min) |
H Height of Lift | ||||
| 6m | 9m | 12m | 15m | |||||||
| SHS-C 3.2t | 3.2 | 3 | 3.6 | 0.4 0.4/0.13 | 20 | L0 | 716 | 924 | 1132 | 1340 |
| 3/1 | 3.6/1.2 | 20/6.7 | L1 | 925 | 1133 | 1341 | 1549 | |||
| S | 209 | 313 | 417 | 521 | ||||||
| SHS-C 6.3t | 6.3 | 4.5 | 3.5 | 0.75 0.75/0.25 | 20 | L0 | 758 | 976 | 1194 | 1412 |
| 4.5/1.1 | 3.5/0.8 | 20/6.7 | L1 | 986 | 1204 | 1422 | 1640 | |||
| S | 219 | 328 | 437 | 546 | ||||||
| SHS-C 10t | 10 | 7.5 | 3.8 | 0.75 0.75/0.25 | 20 | L0 | 829 | 1058 | 1287 | 1516 |
| 7.5/2.0 | 3.8/0.9 | 20/6.7 | L1 | 1101 | 1330 | 1559 | 1788 | |||
| S | 229 | 344 | 458 | 572 | ||||||
| SHS-C 16t | 16 | 13 | 4 | 0.75×2 0.75/0.25×2 | 20 | L0 | 885 | 1118 | 1351 | 1584 |
| 13/3.4 | 4.0/1.0 | 20/6.7 | L1 | 1201 | 1434 | 1667 | 1900 | |||
| S | 233 | 350 | 466 | 583 | ||||||
| SHS-C 20t | 20 | 13 | 3.2 | 0.75×2 0.75/0.25×2 | 20 | L0 | 885 | 1118 | 1351 | 1584 |
| 13/3.4 | 3.2/0.8 | 20/6.7 | L1 | 1201 | 1434 | 1667 | 1900 | |||
| S | 233 | 350 | 466 | 583 | ||||||
FAQ:
1. Are you manufacturer or trade Company?
Thanks for your question. We are a factory founded in 1991 with trade team for international service.
2. About quality:
Before packing, all the hoists will be inspected carefully. And we take detailed pictures and make records for each single product. With our serial no. you will track the details about the products.
3. About spare parts:
We manunfactur 80% spare parts in our factory to control high quality, and the rest 20% are from overseas and China's most famous supplier.
4. How about sample & MOQ policy?
Thanks for your question. Welcome sample order. MOQ can be 1 set.
5. What is your lead time for your goods?
Thanks for your question. Normally 15~20 working days after received payment, and about 30 days during Chinese new year and hot season.
6.What should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you!
A- lifting capacity?
B-lifting height?
C-what is lifting material? How about working environment?
D- Power supply and control voltage?
