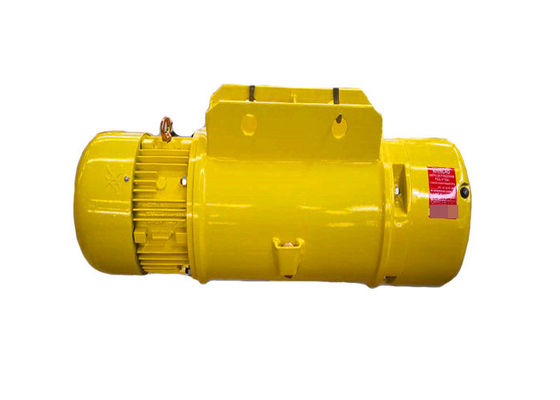

Overhead 2 Ton Wire Rope Electric Hoist Customized For Mines / Harbors

Overhead 2 Ton Wire Rope Electric Hoist Customized For Mines / Harbors
Overhead 2 Ton Wire Rope Electric Hoist Customized For Mines / Harbors

Large Image :  Overhead 2 Ton Wire Rope Electric Hoist Customized For Mines / Harbors

Product Details:
Place of Origin: CHINA
Brand Name: JCYC
Certification: CE & ISO
Model Number: CD1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden cases
Delivery Time: 15 to 30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets per month
Detailed Product Description
Product Name: Overhead 2 Ton Wire Rope Electric Hoist Customized For Mines / Harbors Motor: Nanjing Special Motor
Maximum Lifting Weight: 2 Ton Maximum Lifting Height: At Your Request
Condition: Brand New Lift Speed: 8m/min (as Customised)
High Light:

electric lifting hoist

,

stainless steel wire rope hoist

Overhead 2 Ton Wire Rope Electric Hoist Customized For Mines / Harbors





Product Description



Product Application



The CD and MD type wire rope electric hoist is a kind of light and small lifting equipment, which can be installed on single beam crane, bridge crane, gantry crane, arm cranes, cantilever cranes, etc. It can also be used as a winch. It is widely used in factories, mines, harbors, warehouses, cargo storage areas and shops. CD has one speed, MD has two speed.



Our factory can produce 1-50 tons of wire rope electric winch hoist, including CD and MD type, low headroom hoist, explosion proof electric hoist, European type electric hoist and chain hoist. The hoist can be with pendent control and wireless remote control. Totally can be customised strictly according to your specific requirement.



Product Technical parameters



Overhead 2 Ton Wire Rope Electric Hoist Customized For Mines / Harbors 0



Model Lifting Capacity (t) Lifting Height (m) Lifting Speed (m/min) Running Speed (m/min) Wire Rope Type Dia.of Wire Rope (mm) I Beam Track Type Working Duty Lifting Motor Running Motor
Power(kw) R.P.M ( r/min) Power Supply Power(kw) R.P.M ( r/min) Power Supply
CD1-0.25 0.25 3-9 8 20 6*19 3.6 16-22b M3 0.4 1380 220-440V 50/60HZ 3Phase 0.06 1400 220-440V 50/60HZ 3Phase
CD1-0.5 0.5 6-12 8 20 6*37+1 4.8 16-28b M3 0.8 1380 0.2 1380
CD1-1 1 6-30 8 20 6*37+1 7.4 16-28b M3 1.5 1380 0.2 1380
CD1-2 2 6-30 8 20 6*37+1 11 20a-32c M3 3 1380 0.4 1380
CD1-3 3 6-30 8 20 6*37+1 13 20a-32c M3 4.5 1380 0.4 1380
CD1-5 5 6-30 8 20 6*37+1 15 25a-63c M3 7.5 1380 0.8 1380
CD1-10 10 6-30 7 20 6*37+1 15 25a-63c M3 13 1400 0.8*2 1380
CD1-16 16 6-30 3.5 20 6*37+1 15 45a-63c M2 13 1400 0.8*2 1380
CD1-20 20 6-30 3.5 20 6*37+1 20 50a-63c M2 13 1400 0.8*2 1380





Product Spare Parts:


1. Reducer:
As an independent part, loading and unloading conveniently.


2. Control Box:
Fire Stop Device which can cut off the circuit in case of emergency to protect operation safe



3. Cone-shaped motor:
Lifting motor is higher starting torque tapered brake rotor asynchronous motor,need not extra

brake.Insulation is B grade or F grade, Motor Protection Grade is IP44/IP54.


4. Button Switch:
Handle control:light and convenient, offer two kinds :ring control and wireless remote control.





FAQ:


1. Are you manufacturer or trade Company?

Thanks for your question. We are a factory founded in 1991 with trade team for international service.

2. About quality:
Before packing, all the hoists will be inspected carefully. And we take detailed pictures and make records for each single product. With our serial no. you will track the details about the products.

3. About spare parts:

We manunfactur 80% spare parts in our factory to control high quality, and the rest 20% are from overseas and China's most famous supplier.

4. How about sample & MOQ policy?
Thanks for your question. Welcome sample order. MOQ can be 1 set.

5. What is your lead time for your goods?
Thanks for your question. Normally 15~20 working days after received payment, and about 30 days during Chinese new year and hot season.

6.What should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you!
A- lifting capacity?
B-lifting height?
C-what is lifting material? How about working environment?
D- Power supply and control voltage?
