Promotion Electric Wire Rope Winch Model Gate Hoist For Water Power Engineering

Promotion Electric Wire Rope Winch Model Gate Hoist For Water Power Engineering
Promotion Electric Wire Rope Winch Model Gate Hoist For Water Power Engineering Promotion Electric Wire Rope Winch Model Gate Hoist For Water Power Engineering

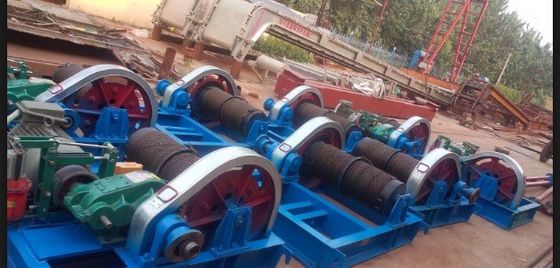

Large Image :  Promotion Electric Wire Rope Winch Model Gate Hoist For Water Power Engineering

Product Details:
Place of Origin: China
Brand Name: JCYC
Certification: CE&ISO
Model Number: JM
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD negotiate per unit
Packaging Details: Plywood case
Delivery Time: 10 -15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Sling Type: Wire Rope Application: Water Power Engineering
Speed: Low Speed Drum Dia: 175-1100 Mm
Maximum Lifting Height: Alternative Maximum Lifting Weight: 30 Ton
High Light:

wire rope crane hoist

,

electric lifting hoist



Electric Wire Rope Winch Model Gate Hoist for Water Power Engineering





Slow speed use for crane and installation industry feature

  • Precision needle bearing used in high-load areas offering lower friction level and longer life
  • Electrical parts protected by steel box from rain
  • Emergency stop button for emergency
  • Steel boxes equip with lock to avoid other staffs in addition to operator to operate winches
  • Gear reducer driving type
  • It could lift, drag and drop vertically, obliquely
  • Rope winding orderly, safe and reliable on performance
  • The big curvature, fiber oil lubrication, galvanized cover of the wire rope extend its service life
  • Corrosion resistant painting
  • Running stably, Reliable operation with low noise (no exceed 85dB)
  • Pass 1.25 times static overload test





Model Cable rated pull
(kg)		 Cable rated
speed
(m/min)		 Wire rope
(ɸmm)		 Reduction box Drum(mm)
Type Transmission
ratio		 Dia(ɸ) Length
JM2 2000 12 15.53 JZQ350 23.34 260 480
JM3 3000 10 17 JZQ350 31.50 310 510
JM5 5000 11 21.50 JZQ400 23.34 400 730
JM8 8000 10 26 JZQ500 31.50 500 900
JM10 10000 9 30 JZQ650 40.17 550 1000
JM12 12000 9 32 JZQ650 40.17 650 1000
JM16 16000 6.6 36.5 JZQ750 31.50 750 1830
JM20 20000 7.7 39 JZQ750 31.50 750 1830
JM25 25000 8.5 42 JZQ750 31.50 850 1925
JM30 30000 8.5 48 JZQ850 23.34 960 1960



Model Wire length
(m)		 Type Motor Power (kw) Rotate speed
(r/min)		 Arrester Size
(cm)		 Weight(kg)
Without rope With rope
JM2 150 Y160M-6 7.5 970 TJ2-200 115x100x60 630 760
JM3 180 Y160M-6 7.5 970 TJ2-200 138x106x65 680 870
JM5 250 YZR180L-8 11 685 TJ2-300 185x135x90 1400 1890
JM8 250 YZR225M-8 22 715 YWZ-300 205x278x105 3000 3740
JM10 300 YZR250M1-8 30 720 YWZ-300 220x180x110 4000 5450
JM12 300 YZR250M2-8 37 725 YWZ-300 250x190x120 5500 7350
JM16 450 Y2ZR280-8 45 717 YWZ-400 390x300x245 7500 12360
JM20 500 YZR250M2-6 45 965 YWZ-400 400x300x170 8500 12300
JM25 500 YZR280S-6 55 969 YWZ-400 412x300x200 9500 13920
JM30 500 YZR280S-6 75 969 YWZ-400 450x300x250 11000 17200
