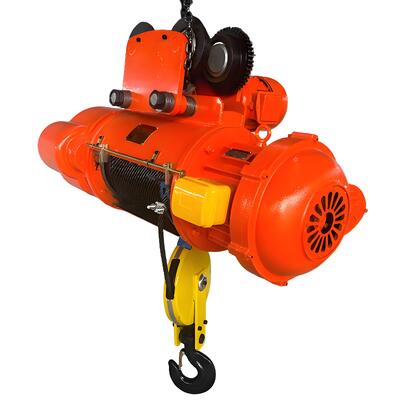

CD / MD Electric Wire Rope Hoists Lifting Equipment With Cable Trolley
  • name
  • name
  • name
  • name
  • name
  • name

CD / MD Electric Wire Rope Hoists Lifting Equipment With Cable Trolley

MOQ: 1 set
Price: negotiable
Standard Packaging: Standard export wooden cases
Delivery Period: 15 to 20 working days
Payment Method: L/C,T/T,Western Union
Supply Capacity: 300 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE ISO
Model Number
CD/MD
Product Name:
CD / MD Electric Hoist With Cable Trolley
Capacity:
0.25 To 20T
Lifting Height:
6 - 30m
Running Speed:
20 M/min
Power Supply:
220-440V, 50/60HZ, 3Phase
Working Duty:
M3 Or At Your Request
Highlight:

wire rope crane hoist

,

electric lifting hoist

Product Description
CD/MD Electric Wire Rope Hoists with Cable Trolley
Professional electric wire rope hoist lifting equipment designed for industrial applications with integrated cable trolley system.
Technical Specifications
Model Lifting Capacity (t) Lifting Height (m) Lifting Speed (m/min) Running Speed (m/min) Wire Rope Type Dia. of Wire Rope (mm) I Beam Track Type Working Duty Lifting Motor Running Motor
Power(kw) | R.P.M (r/min) | Power Supply Power(kw) | R.P.M (r/min) | Power Supply
CD1-0.25 0.25 3-9 8 20 6*19 3.6 16-22b M3 0.4 | 1380 | 220-440V 50/60HZ 3Phase 0.06 | 1400 | 220-440V 50/60HZ 3Phase
CD1-0.5 0.5 6-12 8 20 6*37+1 4.8 16-28b M3 0.8 | 1380 0.2 | 1380
CD1-1 1 6-30 8 20 6*37+1 7.4 16-28b M3 1.5 | 1380 0.2 | 1380
CD1-2 2 6-30 8 20 6*37+1 11 20a-32c M3 3 | 1380 0.4 | 1380
CD1-3 3 6-30 8 20 6*37+1 13 20a-32c M3 4.5 | 1380 0.4 | 1380
CD1-5 5 6-30 8 20 6*37+1 15 25a-63c M3 7.5 | 1380 0.8 | 1380
CD1-10 10 6-30 7 20 6*37+1 15 25a-63c M3 13 | 1400 0.8*2 | 1380
CD1-16 16 6-30 3.5 20 6*37+1 15 45a-63c M2 13 | 1400 0.8*2 | 1380
CD1-20 20 6-30 3.5 20 6*37+1 20 50a-63c M2 13 | 1400 0.8*2 | 1380
CD / MD Electric Wire Rope Hoists Lifting Equipment With Cable Trolley 0
Product Features
  • Reducer: Three helical gear transmission mechanism with heat-treated alloy steel gears and gear shafts. High-quality cast iron box and cover ensure tight sealing. Self-contained design for easy maintenance.
  • Control Box: Emergency main circuit cutoff with trip up/down fire protection stopper. Reliable electrical components ensure safe operation and long service life.
  • Wire Rope: GB1102-74 (6*37+1)-type lifting rope for maximum durability and performance.
  • Cone Motor: Long prototype rotor brake motor with 25% duty cycle. B grade or F grade insulation with IP44 or IP54 electrical protection.
  • Button Switch: Hand-type operation with lightweight, flexible design. Available in rope operation and cordless remote control options.
CD / MD Electric Wire Rope Hoists Lifting Equipment With Cable Trolley 1
Packaging & Shipping
CD / MD Electric Wire Rope Hoists Lifting Equipment With Cable Trolley 2 CD / MD Electric Wire Rope Hoists Lifting Equipment With Cable Trolley 3 CD / MD Electric Wire Rope Hoists Lifting Equipment With Cable Trolley 4
Product Exhibition
CD / MD Electric Wire Rope Hoists Lifting Equipment With Cable Trolley 5
Custom Order Guide
Please provide your specifications based on the technical drawings above, or share your application requirements for our expert recommendation.
  • 1. Load capacity: ___ t?
  • 2. Lifting height: ___ m?
  • 3. (For crane) Span: ___ m?
  • 4. Industrial voltage: ___ V ___ Hz ___ Phases?
  • 5. Working Duty: ___ ?
  • 6. Working conditions: ___ h/day? Full load frequency? Working intensity?
  • 7. Other special specifications or requirements?
