CD / MD Electric Wire Rope Hoists Lifting Equipment With Cable Trolley

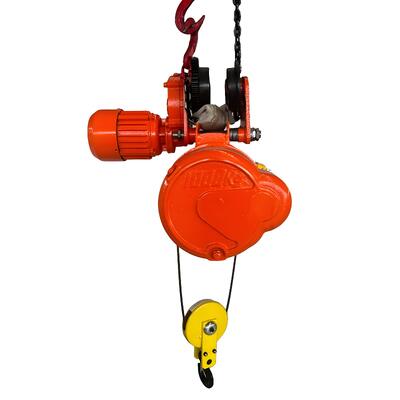

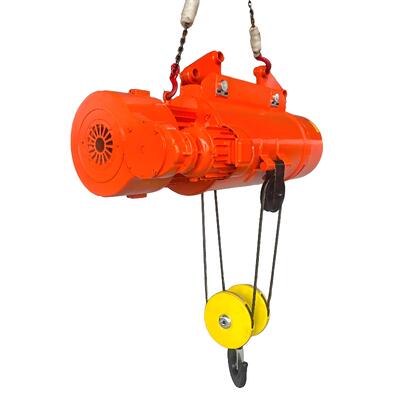

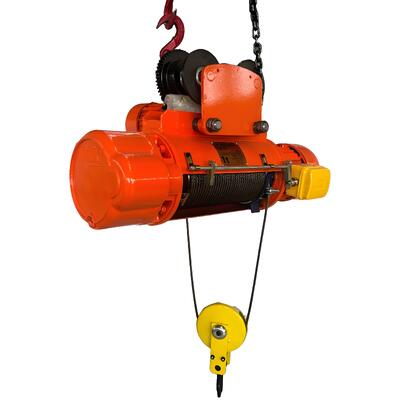

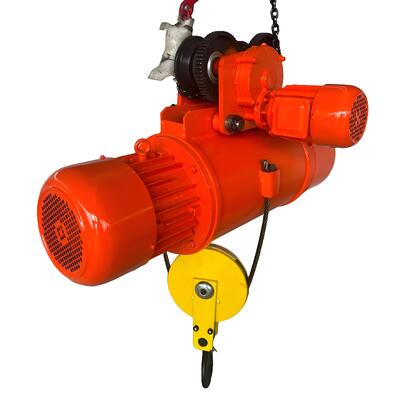

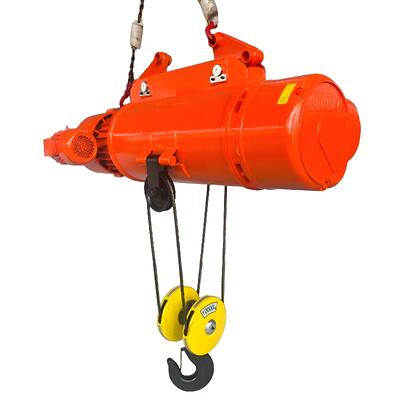

Large Image : CD / MD Electric Wire Rope Hoists Lifting Equipment With Cable Trolley

Product Details:

Place of Origin:	China
Brand Name:	JCYC
Certification:	CE ISO
Model Number:	CD/MD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Standard export wooden cases
Delivery Time:	15 to 20 working days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Product Name:	CD / MD Electric Hoist With Cable Trolley	Capacity:	0.25 To 20T
Lifting Height:	6 - 30m	Running Speed:	20 M/min
Power Supply:	220-440V, 50/60HZ, 3Phase	Working Duty:	M3 Or At Your Request
Highlight:	wire rope crane hoist , electric lifting hoist

CD/MD Electric Wire Rope Hoists with Cable Trolley

Professional electric wire rope hoist lifting equipment designed for industrial applications with integrated cable trolley system.

Technical Specifications

Model	Lifting Capacity (t)	Lifting Height (m)	Lifting Speed (m/min)	Running Speed (m/min)	Wire Rope Type	Dia. of Wire Rope (mm)	I Beam Track Type	Working Duty	Lifting Motor	Running Motor
									Power(kw) \| R.P.M (r/min) \| Power Supply	Power(kw) \| R.P.M (r/min) \| Power Supply
CD1-0.25	0.25	3-9	8	20	6*19	3.6	16-22b	M3	0.4 \| 1380 \| 220-440V 50/60HZ 3Phase	0.06 \| 1400 \| 220-440V 50/60HZ 3Phase
CD1-0.5	0.5	6-12	8	20	6*37+1	4.8	16-28b	M3	0.8 \| 1380	0.2 \| 1380
CD1-1	1	6-30	8	20	6*37+1	7.4	16-28b	M3	1.5 \| 1380	0.2 \| 1380
CD1-2	2	6-30	8	20	6*37+1	11	20a-32c	M3	3 \| 1380	0.4 \| 1380
CD1-3	3	6-30	8	20	6*37+1	13	20a-32c	M3	4.5 \| 1380	0.4 \| 1380
CD1-5	5	6-30	8	20	6*37+1	15	25a-63c	M3	7.5 \| 1380	0.8 \| 1380
CD1-10	10	6-30	7	20	6*37+1	15	25a-63c	M3	13 \| 1400	0.8*2 \| 1380
CD1-16	16	6-30	3.5	20	6*37+1	15	45a-63c	M2	13 \| 1400	0.8*2 \| 1380
CD1-20	20	6-30	3.5	20	6*37+1	20	50a-63c	M2	13 \| 1400	0.8*2 \| 1380

Product Features

Reducer: Three helical gear transmission mechanism with heat-treated alloy steel gears and gear shafts. High-quality cast iron box and cover ensure tight sealing. Self-contained design for easy maintenance.
Control Box: Emergency main circuit cutoff with trip up/down fire protection stopper. Reliable electrical components ensure safe operation and long service life.
Wire Rope: GB1102-74 (6*37+1)-type lifting rope for maximum durability and performance.
Cone Motor: Long prototype rotor brake motor with 25% duty cycle. B grade or F grade insulation with IP44 or IP54 electrical protection.
Button Switch: Hand-type operation with lightweight, flexible design. Available in rope operation and cordless remote control options.
