3t 5t Electric Wire Rope Hoist Single Girder Low Headroom

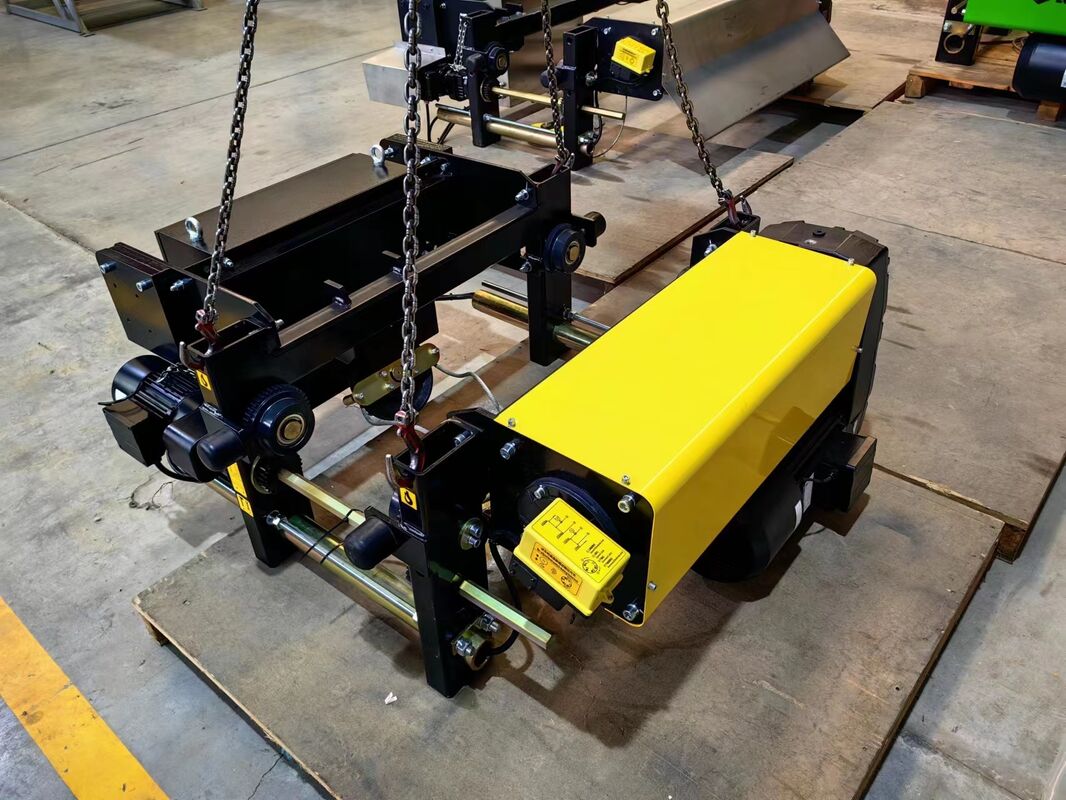

Large Image : 3t 5t Electric Wire Rope Hoist Single Girder Low Headroom

Product Details:

Place of Origin:	Chongqing China
Brand Name:	JCYC
Certification:	CE & ISO
Model Number:	SHSL

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	standard export cases
Delivery Time:	15 to 20 working days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	3000 sets per month

Contact Now

Detailed Product Description

Product Name:	3t 5t Electric Wire Rope Hoist Single Girder Low Headroom	Type:	Single Girder
Capacity:	3T 5T	Lifting Height:	3m To 36m
Lifting Speed:	Double Speed (refer To Parameters)	Port:	Shanghai
Highlight:	electric lifting hoist , stainless steel wire rope hoist

3t 5t Electric Wire Rope Hoist Single Girder Low Headroom

Technique Parameters

Capacity ton	Lifting height m	Lifting speed m/min	Lifting motor kw	Lifting System FEM/ISO
2t	6/9/12/15/18	5/0.8	3.2/0.45	3M	M6
3.2t	6/9/12/15/18	5/0.8	3.2/0.45	2M	M5
5t	6/9/12/15/18	5/0.8	6.1/1	2M	M5
6.3t	6/9/12/15/18	5/0.8	6.1/1	2M	M5
8t	6/9/12/15/18	5/0.8	9.5/1.5	3M	M6
10t	6/9/12/15/18	5/0.8	9.5/1.5	2M	M5
12.5t	6/9/12/15/18	4/0.6	12.5/2	2M	M5
16t	6/9/12/15/18	4/0.6	16/2.6	2M	M5
20t	6/9/12/15/18	4/0.6	16/2.6	1Am	M4
8t	20/24/28/32/36	8/1.3	12.5/2	2M	M5
10t	20/24/28/32/36	8/1.3	16/2.6	2M	M5
12.5t	20/24/28/32/36	6.3/1	16/2.6	1Am	M4

Specifications

CE factory, high quality
Safety, low noise
Low repair rate
Competitive price
Advanced technology

High configuration

Modular structure, can shorten the product development and manufacturing cycle, increase the product line, improve product quality, easy to reuse, upgrade, maintenance and product after the removal of waste, recycling and processing.
Integrated electrical components - small size, low failure rate, low maintenance costs;
The utility model has the advantages that the lifting speed is slow and the speed is fast, and the utility model solves the harsh sound of slow and fast switching of the European calabash;
Bus control technology to achieve large car control signal transmission, reduce the failure rate;
Multi function monitoring unit. The lifting mechanism can monitor the flow number, number and overload of each control point of action is normal or not, by recording the data from the remaining safe working cycle of gourd, gourd life detection;
Delay switch technology is used to ensure that the pole changing motor can be converted to the slow speed from fast to slow,Play the role of anti - shock protection.
Lifting frequency conversion with a safety circuit, even if the inverter failure will not occur safety incidents.
Application of fuzzy control technology in anti swing control;
Using pulse generator technology to monitor the motor running state;

Product package show

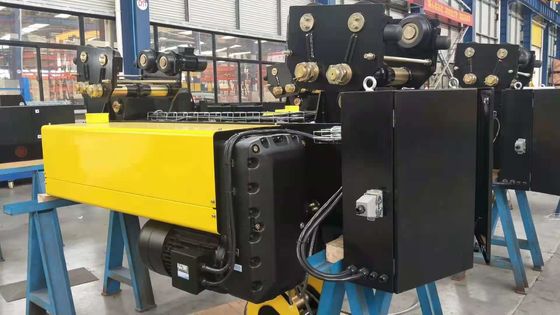

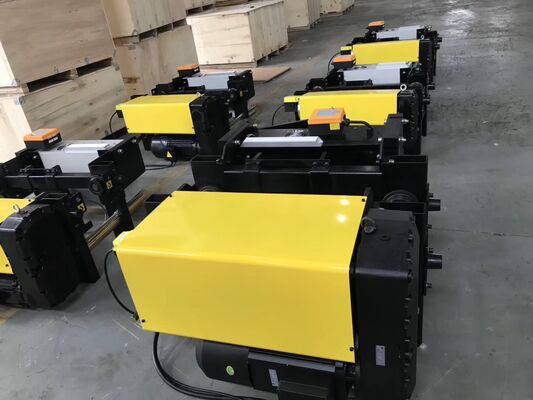

3t 5t Electric Wire Rope Hoist Single Girder Low Headroom 0

3t 5t Electric Wire Rope Hoist Single Girder Low Headroom 1

3t 5t Electric Wire Rope Hoist Single Girder Low Headroom 2

3t 5t Electric Wire Rope Hoist Single Girder Low Headroom 3

3t 5t Electric Wire Rope Hoist Single Girder Low Headroom 4

3t 5t Electric Wire Rope Hoist Single Girder Low Headroom 5

3t 5t Electric Wire Rope Hoist Single Girder Low Headroom 6
