Product Details:
Payment & Shipping Terms:
|
| Lifting Capcaity: | 3.2-20t | Classification: | M4 |
|---|---|---|---|
| Rope Reeving: | 2/1, 4/1 | Lifting Speed: | Single, Double |
| Lifting Height: | 6m-30m | Feature: | Standard Double-rail |
| High Light: | electric lifting hoist,stainless steel wire rope hoist |
||
3.2 T To 20t Liftingelectric Wire Rope Winch Standard Double Rail Crab
Product Description:
3.2t to 20t Standard Double-rail Crab Electric Wire Rope Hoist for Lifting
Product Usage:
Widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
Features and advantages:
1. Particularly favorable hook paths.
2. Anti derailment and lift-off protection design.
3. Makes optimum use of headroom.
4. Excellent approach dimensions thanks to compact design.
5. The main parts of it adopt high quality material to ensure durability.
6. Special specifications and marks can be made according to customers' requirements.
7. High quality and wide adaptation.
8. Excellent performance and safety.
9. 1 year warranty
10. Sample order, OEM and ODM orders are all acceptable.
Product Parameter:
| Type | Capacity(t) | Classification | Rope Reeving | Lifting Speed(m/min) | Motor Power(kw) | Hmin(mm) | H1(mm) | S(mm) | Lifting Height(m) | ||||||
| Single Speed | Double Speed | ||||||||||||||
| SYSH5 | 3.2 | M4 | 2/1 | 7 | 7/1.6 | 4.5 | 212 | 783 | 0.0182H | ／ | 9 | 12 | 18 | 24 | 30 |
| 6.3 | 4/1 | 3.5 | 3.5/0.8 | 4.5/1.1 | 232 | 795 | 6 | 9 | 12 | 15 | ／ | ／ | |||
| SYSH6 | 5 | M4 | 2/1 | 7.6 | 7.6/1.8 | 7.5 | 302 | 818 | 0.0191H | ／ | 9 | 12 | 18 | 24 | 30 |
| 10 | 4/1 | 3.8 | 3.8/0.9 | 7.5/2 | 312 | 830 | 6 | 9 | 12 | 15 | ／ | ／ | |||
| SYSH7 | 8 | M4 | 2/1 | 8 | 8/2 | 13 | 362 | 892 | 0.0194H | ／ | 9 | 12 | 18 | 24 | 30 |
| 16 | 4/1 | 4 | 4/1 | 13/3.4 | 290 | 1042 | 6 | 9 | 12 | 15 | ／ | ／ | |||
| SYSH8 | 10 | M4 | 2/1 | 6.4 | 6.4/1.6 | 13 | 362 | 892 | 0.0194H | ／ | 9 | 12 | 18 | 24 | 30 |
| 20 | 4/1 | 3.2 | 3.2/0.8 | 13/3.4 | 290 | 1042 | 6 | 9 | 12 | 15 | ／ | ／ | |||

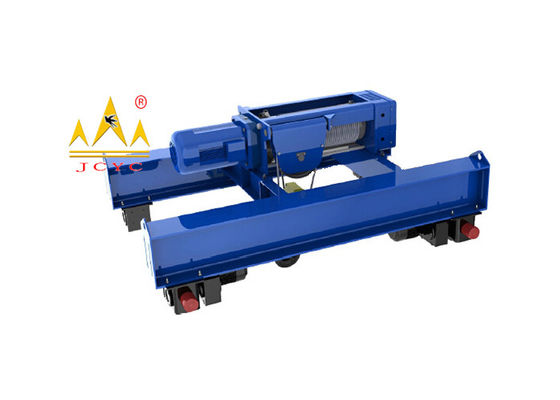

Product Photo:
Warm Tips:
| Warm tips Before Make A Order | We need your confirmation about below information: |
|
1. Trade term, for example, EXW, FOB or CIF? 10. OEM, ODM, sample, trial and mixed orders are all ok. |
