CD MD Double Girder Electric Wire Rope Hoist With Electric Traveling Trolley
  • name
  • name
  • name
  • name

CD MD Double Girder Electric Wire Rope Hoist With Electric Traveling Trolley

MOQ: 1 set
Price: negotiable
Standard Packaging: standard export cases
Delivery Period: 15 to 20 working days
Payment Method: L/C,T/T,Western Union
Supply Capacity: 500 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
Chongqing China
Brand Name
JCYC
Certification
CE & ISO
Model Number
CD1
Product Name:
Double Girder Rail Electric Wire Rope Construction Hoist With Electric Traveling Trolley
Type:
Double Girder
Sling Type:
Wire Rope
Capacity:
0.25 ~ 80t
Lifting Height:
3 ~ 50 M Or Customized
Working Class:
M3 ~ M6
Power Supply:
AC-3Phase-220//230380/400/415/440V-50/60Hz
Motor Protection Class:
IP54 IP55
Control Way:
Ground Handle Control(Push Button),wireless Remote Control
Highlight:

electric lifting hoist

,

stainless steel wire rope hoist

Product Description

Double Girder Rail Construction Small Electric Wire Rope Hoists With Electric Traveling Trolley

Warm tips

We need you confirm below information when send inquiry to us:

  1. FOB or CIF price?(If CIF price,tell us your nearest sea port)
  2. Quantity?(set)
  3. Loading capacity?(ton)
  4. Lifting height?(m)
  5. Working voltage?(V,HZ,Phase)
  6. Working environment?
  7. How many hours the hoist works one day?
  8. Any other requirement do you need?
We will offer professional design solution and best quotation once getting your confirm above info.

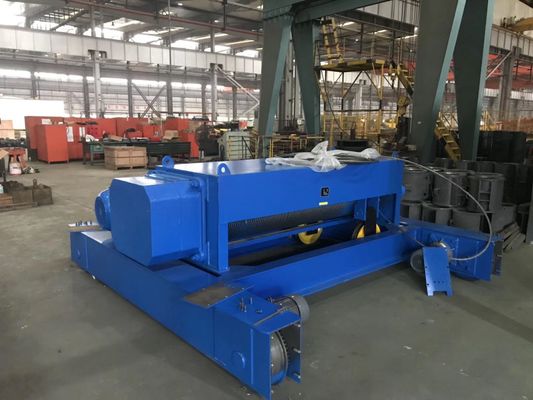

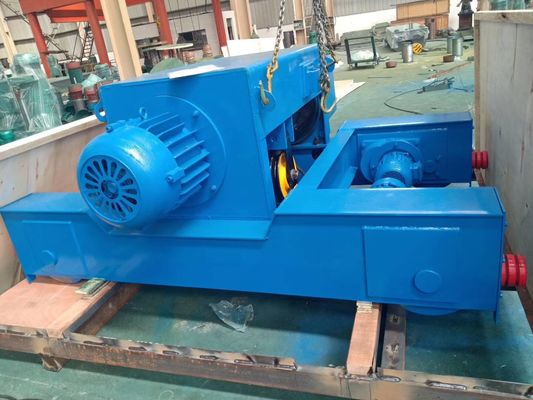

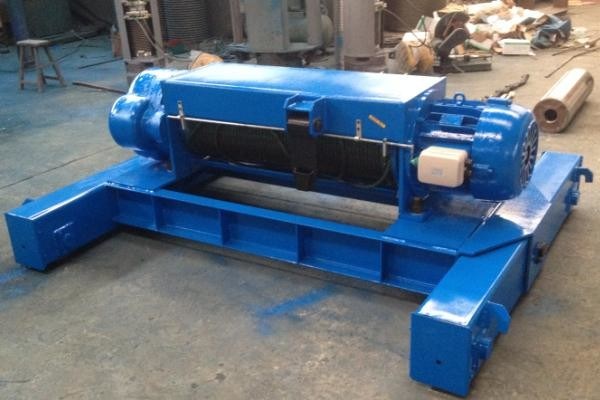

CD MD Double Girder Electric Wire Rope Hoist With Electric Traveling Trolley 0

CD MD Double Girder Electric Wire Rope Hoist With Electric Traveling Trolley 1

CD MD Double Girder Electric Wire Rope Hoist With Electric Traveling Trolley 2

CD MD Double Girder Electric Wire Rope Hoist With Electric Traveling Trolley 3

Technical parameters of wire rope electric hoist

Loading capacity 0.25 ~ 80t
Lifting height 3 ~ 50 m or customized
Lifting speed

Single speed: 0.3 ~ 8 m/min; or customized

Variable frequency speed: 0.1 ~ 12.5 m/min; or customized
Working class M3 ~ M6
Working temperature -20 ~ 40 ℃
Power supply AC-3Phase-220//230380/400/415/440V-50/60Hz
Control voltage DC-36 / 48V
Motor protection class IP54 IP55
Control way Ground handle control(Push button),wireless remote control
Safety device Buffer,current overload protection,overload device,power failure protection
Application area Factory,workshop,warehouse,power station,logstic,etc.
Painting color Yellow,Red or Customzied
Remarks:Above parameter just for your reference,specical requirements can be customized based on clients' demands.

CD MD Double Girder Electric Wire Rope Hoist With Electric Traveling Trolley 4

CD MD Double Girder Electric Wire Rope Hoist With Electric Traveling Trolley 5
