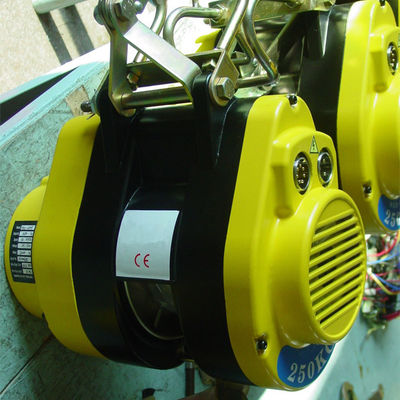

Portable Mini Electric Wire Hoist Suspending 20m Height Lightweight
  • name

Portable Mini Electric Wire Hoist Suspending 20m Height Lightweight

MOQ: 1 set
Price: negotiable
Standard Packaging: Standard export cases
Delivery Period: 15 to 20 working days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 500 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE
Model Number
JCYC-HSM
Product Name:
Mini Winch Small Suspending Mini Electric Hoist
Rated Voltage(V):
AC 100/110/120 220/230/240 50/60 HZ
Lifting Height:
20m
Lifting Speed:
12&15m/min
Feature:
Light Self-weight And Portable
Color:
As Your Request
Highlight:

electric lifting hoist

,

stainless steel wire rope hoist

Product Description

China Manufacture Mini Winch Small Suspending Mini Electric Hoist





Product specifications:



Model Rated voltage
(V)		 Input power
(W)		 Rated load
(Kg)		 Diameter of cable
(mm)		 Lifting speed
(m/min)		 Lifting height
(m)		 N.W
(Kg)
HSM-100F AC 100/110/120
220/230/240
50/60HZ		 580 100 Φ3.8 15 20 27
HSM-150F 780 150
HSM-200F 1050 200 Φ4.2 12 29
HSM-250F 1200 250

Portable Mini Electric Wire Hoist Suspending 20m Height Lightweight 0



Features of suspending electric winch/hoist:



1.hand-hold design, it's convenient for assembly and carry.

2.rugged aluminum Alloy body construction. light weight.

3.with temperature protection can longer service life.

4.adopt dual braking system,Double protection,safe and reliable.

5.adopt upper limit switch,when wire rope finish,the motor will stop automatically.

6.adopte high tensile Alloy galvanized wire rope , wear resistant,high safty factor.

7.All gear are made from high quality alloy steel of extreme surface hardness,

Gear operate in sealed oil bath,long service life.
