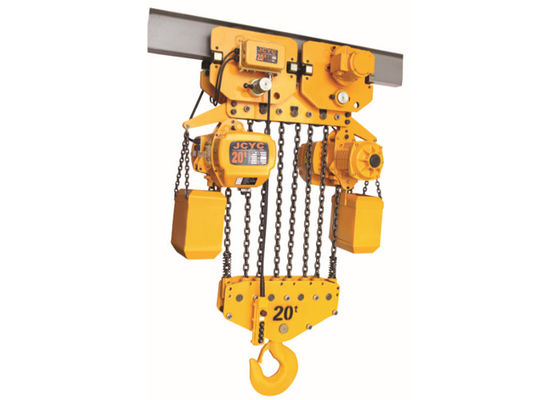

20 ton Capacity 220V-440V Voltage Electric Chain Hoist with 3m-50m Height and Motorized Trolley

Large Image : 20 ton Capacity 220V-440V Voltage Electric Chain Hoist with 3m-50m Height and Motorized Trolley

Product Details:

Place of Origin:	CHINA
Brand Name:	JCYC
Certification:	ISO
Model Number:	SY-A

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$300-$10000
Packaging Details:	Plywood case
Delivery Time:	20 working days
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	500 pcs / week

Contact Now

Detailed Product Description

Model:	Standard Headroom Type	Capacity:	20 Ton
Voltage:	220 V - 440 V	Color:	As Per Request
Chain Dia.:	11.2 Mm	Work Load:	0.25-5 Ton
Hoist Power:	3 Kw	Rail Width:	100-200 Mm
Height:	3m-50m	Lifting Power:	8/0.8kw
Hoist Height:	3-50 M	Key Words:	Electric Chain Hoist, Electric Trolley
Protection Grade:	IP54	Chain Length:	Standard 3m
Lowering Speed:	3m/min
Highlight:	electric hoist trolley with Double brake , motorized chain hoist , Standard Headroom Electric Chain Hoist

Standard Headroom Motorized Electric Chain Hoist With Trolley With Double Brake System

Product Description

Standard Headroom Electric Chain Hoist With Electric Trolley 20 ton

Brief Introduction

This electric chain hoist features a compact, lightweight design with single/triple phase power supply. It offers quick operation, easy installation, and reliable security, making it ideal for various applications including warehouses, garages, farms, machine shops, and home improvement projects.

Main Advantages

High-strength tensile shell or die-casting aluminum case for durability
Sealed 2-stage coaxial transmission speed gear mechanism with oil bath lubrication
Powder metallurgy clutch for overload protection
DC magnetic field brake disc for stable, rapid braking with low noise

Key Features

Lifting Motor

High-performance motor capable of continuous operation for 30 minutes at full load with Grade B insulation.

Lifting Chain

Low carbon steel alloy construction for enhanced toughness and wear resistance
Hardened surface protects core materials and maintains long-term performance
Chain length can be customized to customer requirements
Includes chain bag with anti-rust oil to prevent corrosion and extend service life

Double Brake System

Two sets of brake systems significantly reduce failure possibilities while improving safety and heat dissipation.

Variable Speed Gear

Reliable helical gear design reduces meshing impact and vibration, prolonging service life. Alloy steel construction with professional heat treatment ensures maximum strength.

Control Handle

Standard low-voltage (24V-36V) operation protects operators from shock hazards, complying with national safety standards.

Technical Specifications

Lifting Capacity (t)	Lifting Height (m)	Lifting Speed (m/min)	Running Speed (m/min)	Lifting Motor	Running Motor	I-Beam (mm)
Power (kw)	R.P.M (r/min)	Power Supply	Power (kw)	R.P.M (r/min)	Power Supply
0.5	3-9	6.8	12.2	0.75	1440	220-440V 50/60HZ 3Phase	0.12	1440	220-440V 50/60HZ 3Phase	58-130
1	3-9	6.6	10/20	1.5	1440	220-440V 50/60HZ 3Phase	0.4	1440	220-440V 50/60HZ 3Phase	80-160
1	3-9	3.4	10/20	0.75	1440	220-440V 50/60HZ 3Phase	0.4	1440	220-440V 50/60HZ 3Phase	80-160
2	3-9	6.6	10/20	3.0	1440	220-440V 50/60HZ 3Phase	0.4	1440	220-440V 50/60HZ 3Phase	82-178
2	3-9	3.3	10/20	1.5	1440	220-440V 50/60HZ 3Phase	0.4	1440	220-440V 50/60HZ 3Phase	82-178
3	3-9	5.4	10/20	3.0	1440	220-440V 50/60HZ 3Phase	0.4	1440	220-440V 50/60HZ 3Phase	100-180
3	3-9	4.4	11/21	3.0	1440	220-440V 50/60HZ 3Phase	0.4	1440	220-440V 50/60HZ 3Phase	100-178
3	3-9	2.4	11/21	1.5	1440	220-440V 50/60HZ 3Phase	0.4	1440	220-440V 50/60HZ 3Phase	110-178
5	3-9	2.7	10/20	3.0	1440	220-440V 50/60HZ 3Phase	0.75	1440	220-440V 50/60HZ 3Phase	110-180
7.5	3-9	1.8	10/20	3*2	1440	220-440V 50/60HZ 3Phase	0.75	1440	220-440V 50/60HZ 3Phase	120-180
10	3-9	2.7	10/20	3*2	1440	220-440V 50/60HZ 3Phase	0.75	1440	220-440V 50/60HZ 3Phase	150-202
15	3-9	1.9	10/20	3*2	1440	220-440V 50/60HZ 3Phase	0.75*2	1440	220-440V 50/60HZ 3Phase	150-220
20	3-9	1.4	10/20	3*2	1440	220-440V 50/60HZ 3Phase	0.75*2	1440	220-440V 50/60HZ 3Phase	150-220
25	3-9	1.1	10/20	3*2	1440	220-440V 50/60HZ 3Phase	0.75*2	1440	220-440V 50/60HZ 3Phase	150-220
30	3-9	0.9	10/20	3*2	1440	220-440V 50/60HZ 3Phase	0.75*2	1440	220-440V 50/60HZ 3Phase	150-220
35	3-9	0.7	10/20	3*2	1440	220-440V 50/60HZ 3Phase	0.75*2	1440	220-440V 50/60HZ 3Phase	150-220
