Normal Headroom Electric Wire Rope Hoist With Monorail Trolley

Products

Normal Headroom Electric Wire Rope Hoist With Monorail Trolley

MOQ:	1 unit
Price:	USD negotiable per unit
Standard Packaging:	Plywood case
Delivery Period:	10 -15 working days
Payment Method:	L/C,T/T,Western Union
Supply Capacity:	500 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

CE&ISO

Model Number

HC-A & HC-B

Name:

Normal Headroom Electric Wire Rope Hoist With Monorail Trolley

Capcity:

3.2t-20t

Lifting Height:

3m-24m

Voltage:

220v-440v,50HZ/60HZ,3P

Reeving:

2/1; 4/1

Speed:

Single Speed Or Double Speed

Control:

Pendant Control Or Radio Control

Color:

Blue, Yellow, Red...

Highlight:

electric lifting hoist

stainless steel wire rope hoist

Product Description

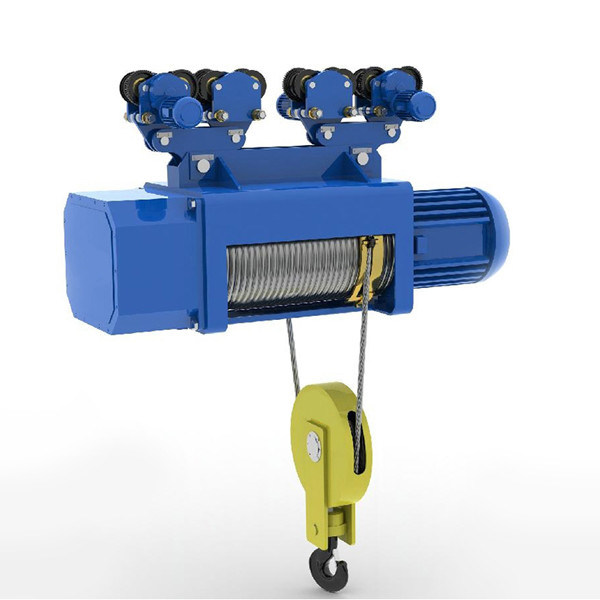

Normal Headroom Electric Wire Rope Hoist With Monorail Trolley

Product Description:

Electric hoist is the most popular hoist for single girder overhead cane, because of their characteristics of tight structure, smart body, safety and reliability, common-used parts, well changeable property, strong lifting capacity as well as convenient maintenance. The new type hc light small wireless remote control electric hoist can also work by fixing to a section of I-beam. It is a light duty designed.

Preferably used in manufacturing buildings that have enough working space for an overhead crane. Depending on the lifting height needed, the hoist is assembled with one or two motorized travel trolleys and one or two motor-reducers. The trolleys are also available in an articulated version to run on curves. For them two travel motor-reducers are by default.

Model	Lifting Capacity(t)	Lifting Height(m)	Lifting Speed(m/min)	Running Speed(m/min)	Wire Rope Type	Dia. Of Wire Rope	I Beam Track Type	Working Duty	Lifting Motor			Running Motor
Model	Lifting Capacity(t)	Lifting Height(m)	Lifting Speed(m/min)	Running Speed(m/min)	Wire Rope Type	Dia. Of Wire Rope	I Beam Track Type	Working Duty	Power(kw)	R.P.M(r/min)	Power Supply	Power(kw)	R.P.M(r/min)	Power Supply
HC-A0.25	0.25	3-9	8	20	6*19	3.6	16-22b	M3	0.4	1380	220-440V 50/60HZ, 3 Phase	0.06	1400	220-440V 50/60HZ, 3 Phase
HC-A0.5	0.5	6-12	8	20	6*37+1	4.8	16-28b	M3	0.8	1380		0.2	1380
HC-A1	1	6-30	8	20	6*37+1	7.4	16-28b	M3	1.5	1380		0.2	1380
HC-A2	2	6-30	8	20	6*37+1	11	20a-32c	M3	3	1380		0.4	1380
HC-A3	3	6-30	8	20	6*37+1	13	20a-32c	M3	4.5	1380		0.4	1380
HC-A5	5	6-30	8	20	6*37+1	15	25a-63c	M3	7.5	1380		0.8	1380
HC-A10	10	6-30	7	20	6*37+1	15	25a-63c	M3	13	1400		0.8*2	1380
HC-A16	16	6-30	3.5	20	6*37+1	15	45a-63c	M2	13	1400		0.8*2	1380
HC-A20	20	6-30	3.5	20	6*37+1	20	50a-63c	M2	13	1400		0.8*2	1380

Model	Lifting Capacity(t)	Lifting Height(m)	Lifting Speed(m/min)	Running Speed(m/min)	Wire Rope Type	Dia. Of Wire Rope	I Beam Track Type	Working Duty	Lifting Motor			Running Motor
Model	Lifting Capacity(t)	Lifting Height(m)	Lifting Speed(m/min)	Running Speed(m/min)	Wire Rope Type	Dia. Of Wire Rope	I Beam Track Type	Working Duty	Power(kw)	R.P.M(r/min)	Power Supply	Power(kw)	R.P.M(r/min)	Power Supply
HC-B16	16	9-48	3.5(3.5/0.35)	20	6*19	17.5	50a-63c	M3	13(13/1.5)	920(1400)	220-440V 50/60HZ, 3 Phase	0.8*2	1380	220-440V 50/60HZ, 3 Phase
HC-B20	20	9-24	3.5/0.3(4/0.4)	20	6*37+1	20	50a-63c	M6	18.5(18.5/3)	920(1400)		0.8*4	1380
HC-B25	25	9-24	2.4/0.24(3/0.3)	20	6*37+1	20	50a-63c	M6	18.5(18.5/3)	920(1400)		0.8*4	1380
HC-B32	32	9-24	2.4/0.24(3/0.3)	20	6*37+1	26	50a-63c	M3	18.5(18.5/3)	920		1.5*4	1380
HC-B50	50	9-24	2.4/0.24	20	6*37+1	26	50a-63c	M3	18.5(18.5/3)	920		1.5*4	1380
HC-B80	80	9-24	2.4/0.24	20	6*37+1	26	50a-63c	M3	18.5(18.5/3)	920		1.5*4	1380

Safety Features:

Safety is the most important issue for new type hc light small wireless remote control electric hoist. To ensure the safety, we equip the following safety devices:

eight overload protection device
Lifting height limit device
Voltage lower protection function
Phase sequence protection function
Emergency stop function
Rain cover for outside hoist, driving units, electrical cubicle
Warming indicator, flashing lights and warming sound
Wireless infra-detector for anti-collusion

Exhibition:
