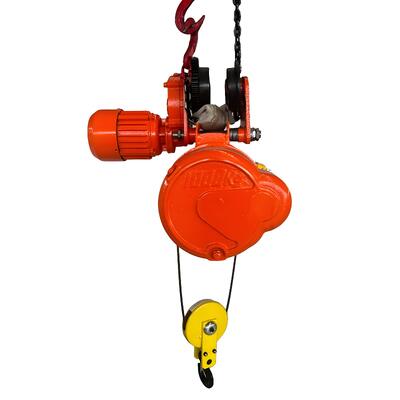

Electric Wire Rope Hoist CD MD 220V 380v For Factory Warehouse
  • name
  • name
  • name
  • name
  • name
  • name

Electric Wire Rope Hoist CD MD 220V 380v For Factory Warehouse

MOQ: 1 set
Price: Negotiable
Standard Packaging: Plywood case
Payment Method: T/T,L/C,Western Union
Supply Capacity: 500 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE & ISO
Model Number
CD1
Product Name:
CD MD Factory Supply Electric Wire Rope Hoist
Model No.:
CD MD
Capacity:
0.25t To 20t
Lifting Height:
3 To 30m
Running Speed:
20 M/min
Power Supply:
220 V-440 V, 3 Phase, 50/60 HZ
Mobile:
Up, Down, Left And Right
Lifting Speed:
0.8 M/min; 8 M/min
Highlight:

wire rope crane hoist

,

electric lifting hoist

Product Description
Electric Wire Rope Hoist CD MD 220V 380v For Factory Warehouse
Electric Wire Rope Hoist Winch 220 To 440V - Professional industrial lifting solution designed for factory and warehouse applications.
Product Features
  • Light Dead Weight
  • Small Occupied Space
  • High Working Performance
  • Easy Operation
  • Safe and Reliable
  • Low Operation and Maintenance Costs
Technical Specifications
Model CD1 0.25T CD1 0.5T CD1 1T CD1 2T CD1 3T CD1 5T CD1 10T CD1 16T CD1 20T
Capacity (T) 0.25 0.5 1 2 3 5 10 16 20
Standard Lifting Height (m) 3-9 6-12 6-30 6-30 6-30 6-30 9-30 9-18 9-18
Lifting Speed (m/min) 8 8 8 8 8 8 7 3.5 3.5
Running Speed (m/min) 20 20 20 20 20 20 20 20 20
Wire Rope Type 6X9 D-6X37+1 D-6X37+1 D-6X37+1 D-6X37+1 D-6X37+1 D-6X37+1 6X37+1 6X37+1
I-beam Track Type 16-22b 16-28b 16-28b 20a-32c 20a-32c 25a-63c 25a-63c 45a-63c 50a-63c
Loop Track Minimum Radius (m) 0.8 1.5 1.5-4 2-4 2-4 2.5-5 2.5-9 3-4.6 3-4.6
Power Supply: 220V-440V, 3 phase, 50/60HZ
Working Duty: Mid M3 (CD1 0.25T-10T), Mid M2 (CD1 16T-20T)
Factory Showcase

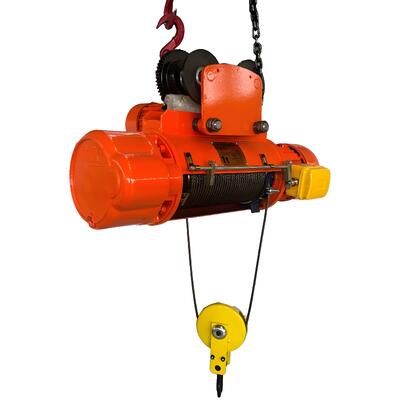

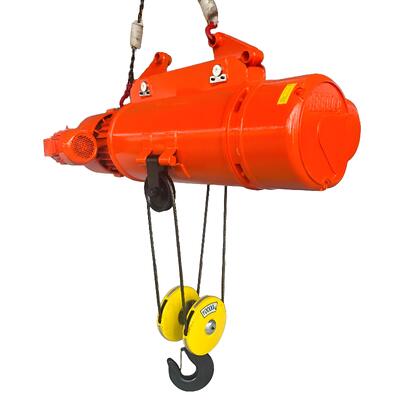

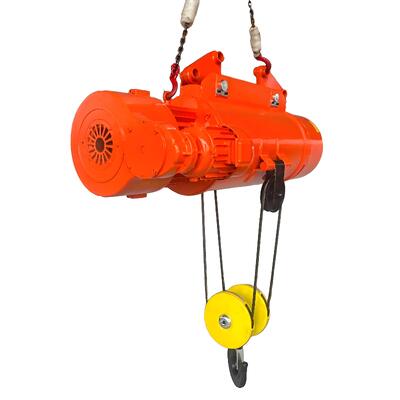

Electric Wire Rope Hoist CD MD 220V 380v For Factory Warehouse 0 Electric Wire Rope Hoist CD MD 220V 380v For Factory Warehouse 1
Tags:

electric lifting hoist,

stainless steel wire rope hoist,

wire rope crane hoist
