Light Duty Electric Wire Rope Hoist with Small Volume and High Working Performance CD1 Model 1T to 20T Capacity

Large Image : Light Duty Electric Wire Rope Hoist with Small Volume and High Working Performance CD1 Model 1T to 20T Capacity

Product Details:

Place of Origin:	China
Brand Name:	JCYC
Certification:	CE & ISO
Model Number:	CD1

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Plywood case
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	500 sets per month

Contact Now

Detailed Product Description

Product Name:	Electric Wire Rope Hoist CD1 1T 2T 3T 5T 10T	Model No.:	CD1
Capacity:	0.25t To 20t	Lifting Height:	3 To 30m
Lifting Speed:	8 M/min; 0.8/8m/min	Running Speed:	20 M/min
Power Supply:	220 V-440 V, 3 Phase, 50/60 HZ	Mobile:	Up, Down, Left And Right
Highlight:	wire rope crane hoist , electric lifting hoist

Electric Wire Rope Hoist CD1 Series (1T-20T Capacity)

This electric wire rope hoist is widely used in factories, mines, harbors, warehouses, cargo storage areas and shops, essential for raising working efficiency and improving working conditions.

Technical Specifications

Model	CD1 0.25T	CD1 0.5T	CD1 1T	CD1 2T	CD1 3T	CD1 5T	CD1 10T	CD1 16T	CD1 20T
Capacity (T)	0.25	0.5	1	2	3	5	10	16	20
Standard lifting height (m)	3-9	6-12	6-30	6-30	6-30	6-30	9-30	9-18	9-18
Lifting Speed (m/min)	8	8	8	8	8	8	7	3.5	3.5
Running Speed (m/min)	20	20	20	20	20	20	20	20	20
Wire rope type	6X9	D-6X37+1	D-6X37+1	D-6X37+1	D-6X37+1	D-6X37+1	D-6X37+1	6X37+1	6X37+1
I-beam track type	16-22b	16-28b	16-28b	20a-32c	20a-32c	25a-63c	25a-63c	45a-63c	50a-63c
Loop track minium radius (m)	0.8	1.5	1.5-4	2-4	2-4	2.5-5	2.5-9	3-4.6	3-4.6

General Specifications

Power supply: 220V-440V, 3phase, 50/60HZ
Working Duty: Mid M3 (0.25T-10T), Mid M2 (16T-20T)

Product Features

Light Duty
Small Volume
High Working Performance
Easy Operation
Safe and Reliable
Low Operation and Maintenance Costs

Available Models

CD1/MD1, normal type, Lifting capacity: 0.5 - 20 tons
HC, normal type, Lifting capacity: 8- 63 tons
HB/HBS, Explosion proof type, Lifting capacity: 0.5- 20tons
HY, Smelting type, Lifting capacity: 3- 20tons
LH, Double rails, Lifting capacity: 2- 63tons
All models Stationary type, foot mounted type hoist, Lifting capacity: 0.5- 63tons
All models Center lifting type, Lifting capacity upto 16tons
All models Over-long lifting height type, lifting height can upto 120m
Electric Chain hoist, Lifting capacity: 0.5 - 20tons
All kinds non-standard model hoist according to your actual working conditions design

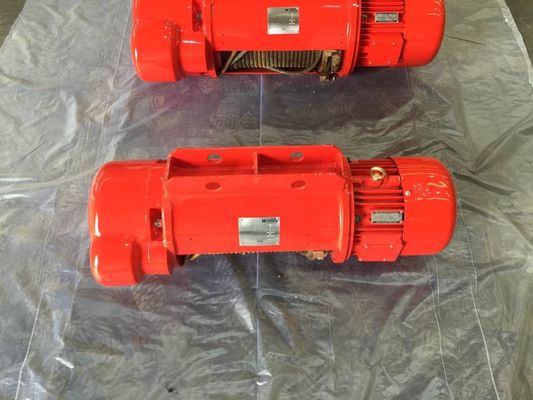

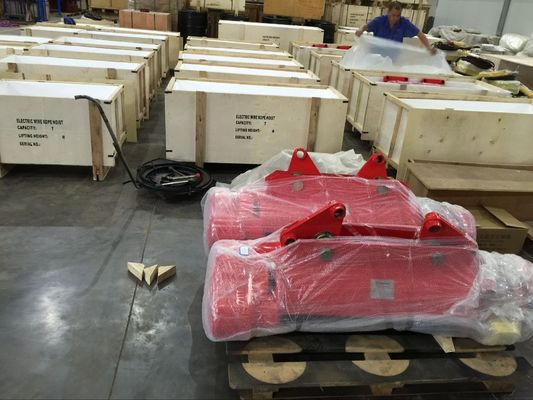

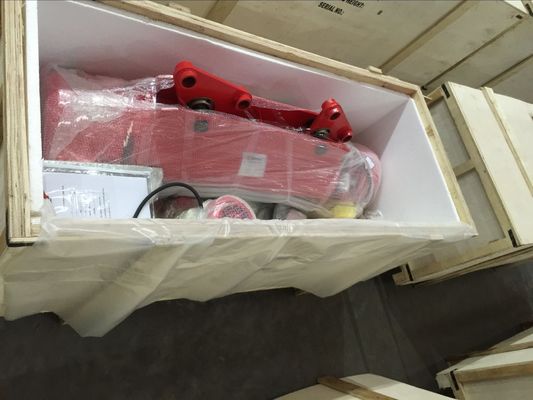

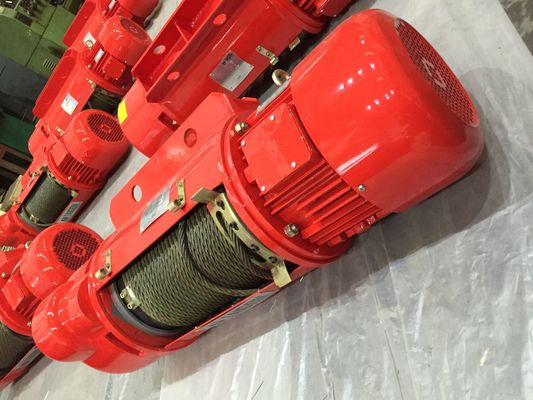

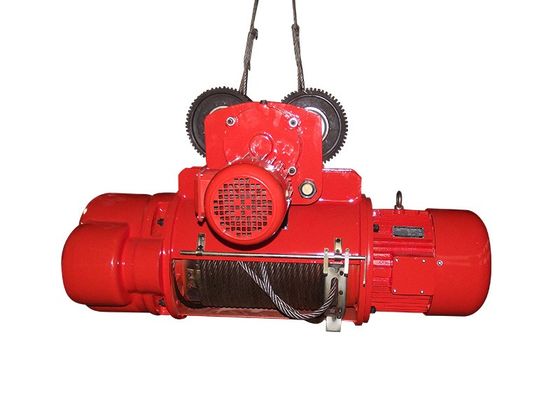

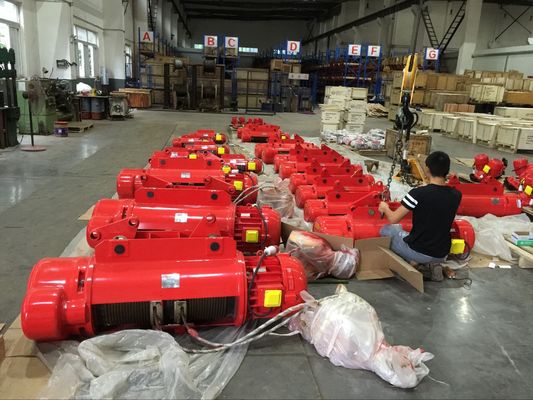

Product Images
