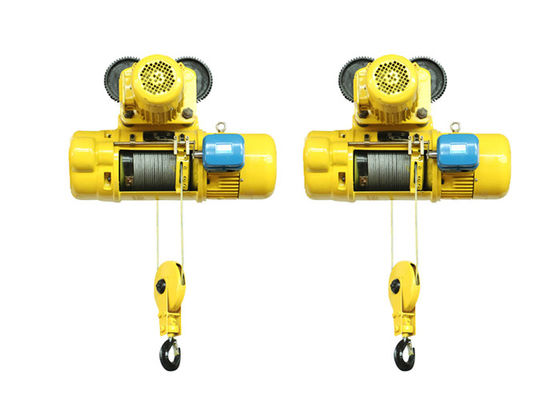

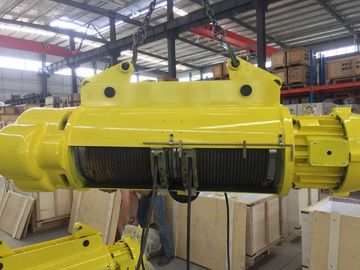

Yellow / Red Color Wire Rope Crane Hoist 0.25 To 20 Ton Cd Type For Construction
  • name
  • name
  • name
  • name

Yellow / Red Color Wire Rope Crane Hoist 0.25 To 20 Ton Cd Type For Construction

MOQ: 1 pcs
Price: Negotiable
Standard Packaging: Plywood case
Delivery Period: 15 working days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 500 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE & ISO
Model Number
CD1
Product Name:
Yellow / Red Color Wire Rope Crane Hoist 0.25 To 20 Ton Cd Type For Construction
Max Capacity:
20t
Running Speed:
20m/min
Lifting Speed:
8m/min
Power Supply:
220v-440v，50/60hz
Working Duty:
M3
Highlight:

wire rope crane hoist

,

electric lifting hoist

Product Description

0.25 - 20 Ton CD Electric Wire Rope Hoist with Yellow or Red Color for Construction​CD Wire rope electric hoist





Product Brief Introduction:



1. Capacity 0.25-32tons Lifting height 6-100m Duty class-M3

2. It can mounted on single beam overhead cranes.

3. It is essential in raising working efficiency and improving working conditions.

4. Gantry Cranes, Jib Type CD,Eletric hoist as only one normal Speed which can satisfy normal application.

5. It is widely used in factories, mines, haybours, wirehouses, cargo storage area and shops.



Note:

A. The standard lifting height is 6,9,12,18,24,30 and 36 meters.
B. The lifting speed can be single speed or double speed, even multi-speed with frequency inverters.
C. The suitable rail for the low-headroom hoist is H-type rail, and I-type rail is also available.
D. The recoomended rope reeving of this kind of hoist is 2/1, 4/2 or 4/1.
E. The normal traveling speed is 20m/min or 30m/min, and 12.5, 16, 25, 32m/min by request.
F. The normal rail gauge of the double-girder hoist is 1200, 1500, 1800, 2100 and 2300.



Technical Parameters:



Model CD1 0.25T CD1 0.5T CD1 1T CD1 2T CD1 3T CD1 5T CD1 10T CD1 16T CD1 20T
Capacity T 0.25 0.5 1 2 3 5 10 16 20
Standard lifting height m 3-9 6-12 6-30 6-30 6-30 6-30 9-30 9-18 9-18
Lifting Speed m/min 8 8 8 8 8 8 7 3.5 3.5
Running Speed m/min 20 20 20 20 20 20 20 20 20
Wire rope type 6X9 D-6X37+1 D-6X37+1 D-6X37+1 D-6X37+1 D-6X37+1 D-6X37+1 6X37+1 6X37+1
I-beam track type 16-22b 16-28b 16-28b 20a-32c 20a-32c 25a-63c 25a-63c 45a-63c 50a-63c
Loop track minium radius m 0.8 1.5 1.5-4 2-4 2-4 2.5-5 2.5-9 3-4.6 3-4.6
Power supply 220V-440V,3phase,50/60HZ
Working Duty Mid M3 Mid M3 Mid M3 Mid M3 Mid M3 Mid M3 Mid M3 Mid M2 Mid M2
