Product Details:
Payment & Shipping Terms:
|
| Max. Lifting Height: | 30m | Max. Lifting Weight: | 990kg |
|---|---|---|---|
| Power:: | 480W-1600W Input Power | Application:: | Small Crane |
| Installation:: | Special Crane | Condition:: | New |
| High Light: | wire rope crane hoist,electric lifting hoist |
||
Product Description:

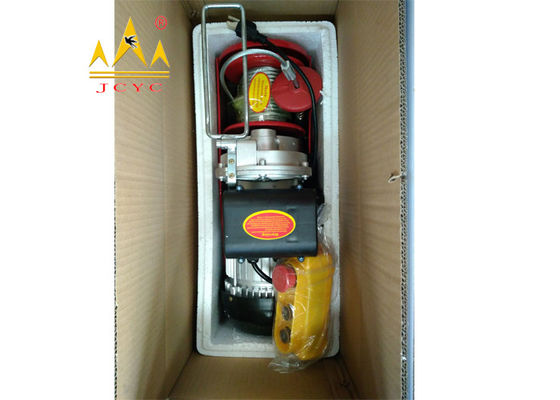

Latest Mini Portable Electric Wire Rope Hoist
Usage:
Widely used in places like factories, mines, agriculture, electric power, constructions, docks, warehouses, etc.
Advantages and Features:
■ With emergency stop switch
■ Reinforced braking switch with position limit
■ Protection class up to IP54
■ With thermal prevention device
■ Widely used for installing machines, lifting and transferring loads, loading and unloading trucks, etc.
■ Latest European standard.
■ Has safety device like up and down position limit.
■ Certified for CE, GS, EMC and RoHs, etc.
■ 100% copper motor with heavy duty.
■ Red, yellow or customized color.
■ Capacity from 100kg to 990kg, has two methods usage: single hook and double hooks.
■ Can be fixed onto hoist frame.
Basic Information:
| Model: | SY-PA200-1200 |
| Type: | Electric Hoist |
| Certification: | CE, ISO9001:2000, GS/TUV |
| Installation: | Special Crane |
| Condition: | New |
| Trademark: | JCYC, OEM |
| Usage: | Construction Hoist |
| Hooks Number: | 2 Hooks |
| Package: | Standard Export Package |
| Application: | Small Crane |
| Origin: | China |
| HS Code: | 84251100 |
| Type of Work: | Special Weight Level |
| Structure: | Boom Crane |
| Color: | Red Yellow or Customized Color |
| Warranty: | 1 Year |
| Sling Type: | Wire Rope |
| Application: | Bridge Crane, Lifting Platform, Small Crane, Workshop Crane |
Parameter:
| Model | Hook Usage | Rated Power |
Input Power (w) |
Rated Capacity (kg) |
Lifting Speed (m/min) |
Lifting Height (m) |
QTY/CTN (pc) |
CTN Size (cm) |
G.W/N.W (kg) |
| SY-PA200 | Single | 220V/230V/240V,50/60HZ | 480 | 100 | 10 | 12 | 2 | 49*43*16 | 24/22 |
| Double | 200 | 5 | 6 | ||||||
| SY-PA250 | Single | 510 | 125 | 10 | 12 | ||||
| Double | 250 | 5 | 6 | ||||||
| SY-PA300 | Single | 600 | 150 | 10 | 12 | ||||
| Double | 300 | 5 | 6 | ||||||
| SY-PA400 | Single | 950 | 200 | 10 | 12 | 52*48*17 | 36/34 | ||
| Double | 400 | 5 | 6 | ||||||
| SY-PA500 | Single | 1020 | 250 | 10 | 12 | ||||
| Double | 500 | 5 | 6 | ||||||
| SY-PA600 | Single | 1200 | 300 | 10 | 12 | ||||
| Double | 600 | 5 | 6 | ||||||
| SY-PA700 | Single | 1250 | 350 | 8 | 12 | 54*50*17 | 38/36 | ||
| Double | 700 | 4 | 6 | ||||||
| SY-PA800 | Single | 1300 | 400 | 8 | 12 | ||||
| Double | 800 | 4 | 6 | ||||||
| SY-PA990 | Single | 1600 | 500 | 8 | 12 | 1 | 62*24*35 | 33/32 |
Warm Note:
International standard production, strong technology team, excellent sales and after-sales service, JCYC is the best partner on your successful business road. OEM, ODM, sample, trial and mixed orders are all acceptable.
