Product Details:
Payment & Shipping Terms:
|
| Product Name: | CD MD Electric Wire Rope Hoist | Model.: | CD MD |
|---|---|---|---|
| Standard Lifting Height: | 3m | Included Function:: | Emergency Stop, Voltage Upper / Lower Limit Protector, Limit Switch, Etc. |
| Max. Lifting Capacity:: | 32t | Package:: | Standard Export Package |
| High Light: | wire rope crane hoist,electric lifting hoist |
||
Product Description:
CD, MD Series Electric Wire Rope Hoist
Usage:
The travelling configuration hoist usually can be installed separately on suspension I-steel runway (straight or curve) or box beam, as well as be incorporated into lifting system such as single, double girder/beam crane, cantilever cranes, gantry crane, etc.
Features and advantages:
1. National standardized light lifting equipment.
2. Rated work classification is M3.
3. CD type has only one lifting speed while MD type has two.
4. Compact body, small size, light weight and modular convertible parts.
5. Durable and safe, it is easy to operate, install and maintain.
6. Ideal to use for 3 phase, light moderate duty service applications.
7. Can get very large lifting height by simply modifying its design parameters.
8. Easy to be refitted and mounted on a support deck or foundation to work as electric hoist winch.
Product Details:
| Model: | CD, MD Series |
| Origin: | China |
| Max. Lifting Height: | 30m |
| Lifting Speed: | 8m/min |
| Power: | 220V-440V, 50/60HZ, 3 Phase |
| HS Code: | 8425110000 |
| Included Function: | Emergency Stop, Voltage Upper / Lower Limit Protector, Limit Switch, etc. |
| Trademark: | JCYC, OEM |
| Max. Lifting Capacity: | 32t |
| Travelling Speed: | 20m/min |
| Color: | Yellow or Customized Color |
| Warranty: | 1 Year |
| Working Level: | Mid M3, Mid M2 |
| Package: | Standard Export Package |

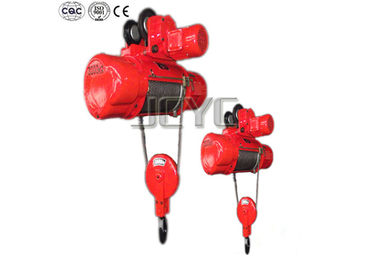

Photo:
Warm Note:
International standard production, strong technology team, excellent sales and after-sales service, JCYC is the best partner on your successful business road. OEM, ODM, sample, trial and mixed orders are all acceptable.
