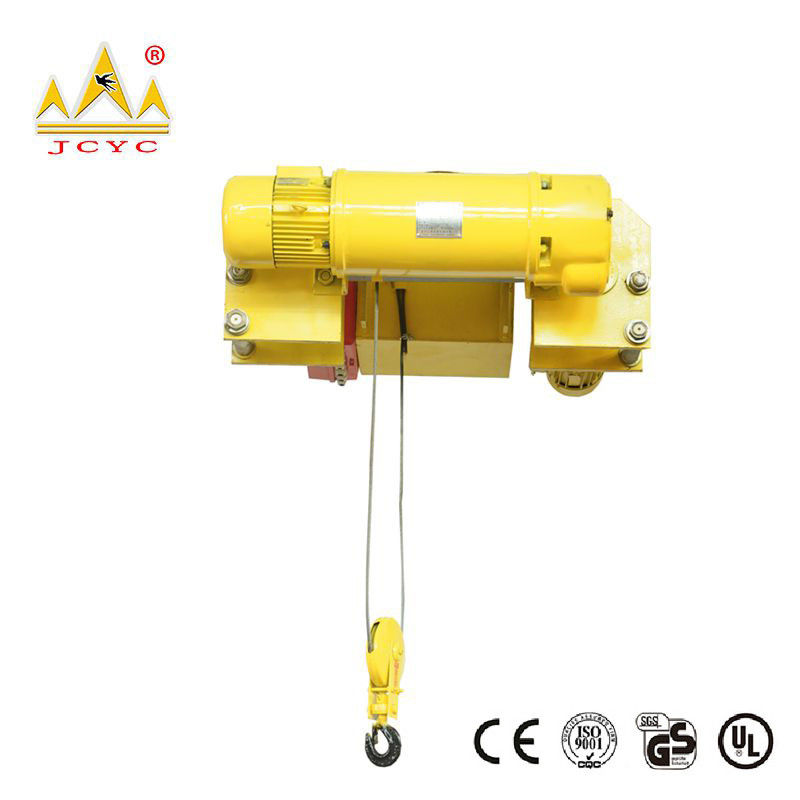

Low Noise Electric Low Headroom Wire Rope Hoists Saving Space

Low Noise Electric Low Headroom Wire Rope Hoists Saving Space
Low Noise Electric Low Headroom Wire Rope Hoists Saving Space

Large Image :  Low Noise Electric Low Headroom Wire Rope Hoists Saving Space

Product Details:
Place of Origin: Chongqing China
Brand Name: JCYC
Certification: CE & ISO
Model Number: CDL MDL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export plywood case
Delivery Time: 15 to 20 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets per month
Detailed Product Description
Product Name: Low Headroom Electric Hoist Model No.: CDL MDL
Speed: Single Or Double Speed Capacity: 0.5-16 T
Usage: Construction Hoist Hoisting Height: 6-30 M
Power: AC 380V 50HZ 3P
High Light:

wire rope crane hoist

,

electric lifting hoist

Low Headroom Type Saving Space Wire Rope Electric Hoist





Product advantages

  • CE factory, good quality with competitive price
  • Superior safety and reliability
  • Low repair rate
  • Smooth starting and stopping
  • Low noise, reasonable structure, favorable performance
  • Advanced technology



Product Description

  • Imported motor can be selected,high-level work,up to M5,with low nise.
  • Apply to factory, warehouse, wharf, power plants, construction sites and other places.
  • Especially suitable for building or site which headroom is restricted, be used to maximize the effective lifting height.
  • High quality material as follows:

         1.Electrical equipment: Schneider, Control box material: Q235B
         2.Motor: Nanjing special electric
         3.Bearing: Ha‘erbin Bearing
         4.Gear: 20Chromium manganese titanium
         5.Hook: 40 chrimium forge
         6.Wire rope: Guizhou Julong limited liability company
         7.Transmission shaft: 45#quenched and tempered steel
         8.Cover and coiling block: thicken steel plate





Technical Parameters



Model CDL MDL
Capacity tons 0.5 1 2 3 5 10 16
Hoisting height m 6,9,12 6,9,12,18,24,30 9,12,18,24,30
Hoisting speed m/min 8(0.8/8) 8(0.8/8) 7(0.7/7) 3.5(0.35/3.5)
Travel m/min 20/30 20/30 20/30 20/30 20/30 20/30 18
Wire rope Dia.(mm) 4.8 7.4 11 13 15 15 17.5
Spec. 6x37+FC 6x37+FC 6x37+FC 6x37+FC
Hoisting motor Type ZD121-4 ZD122-4 ZD131-4 ZD132-4 ZD141-4 ZD151-4 ZD151-4
ZDS1      0.2/0.8 ZDS1  0.2/1.5 ZDS1 0.4/3.0 ZDS1 0.4/4.5 ZDS1 0.8/7.5 ZDS1 1.5/13 ZDS1 1.5/13
Power(kw) 0.8(0.2/0.8) 1.5(0.2/1.5) 3.0(0.4/3.0) 4.5(0.4/4.5) 7.5(0.8/7.5) 1.(1.5/13) 13(1.5/13)
Rotation speed(r/min) 1380 1380 1380 1380 1400 1400 1400
(A) 2.2(0.72/2.4) 4.3(0.72/4.3) 7.6(1.25/7.6) 11(2.4/11) 18(2.4/18) 30(5.2/30) 30(5.2/30)
Travel motor Type ZDY111-4 ZDY111-4 ZDY112-4 ZDY112-4 ZDY121-4 ZDY121-4 ZDY121-4
Power(kw) 0.2 0.2 0.4 0.4 0.8 0.8x2 0.8x2
Rotation speed(r/min) 1380 1380 1380 1380 1380 1380 1380
Current(A) 0.72 0.72 1.25 1.25 2.4 2.4 2.4
Power AC 380V 50HZ 3P
