10 Ton Single Speed CD Electric Wire Rope Hoist With 1 Year Warranty

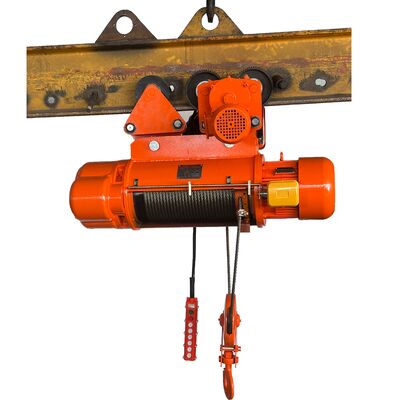

Large Image : 10 Ton Single Speed CD Electric Wire Rope Hoist With 1 Year Warranty

Product Details:

Place of Origin:	Chongqing China
Brand Name:	JCYC
Certification:	CE & ISO
Model Number:	CD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Plywood case
Delivery Time:	A week
Payment Terms:	T/T
Supply Ability:	500 sets per month

Contact Now

Detailed Product Description

Product Name:	CD Electric Wire Rope Hoist	Capacity:	0.25-20 T
Standard Lifting Height:	3-18 M	Lifting Speed:	8 M/min
Running Speed:	20 M/min	Power Supply:	220 V-440 V, 3 Phase, 50/60 HZ
Type:	Mobile	Application:	Construction
Warranty:	1 Year
Highlight:	wire rope crane hoist , electric lifting hoist

10 Ton Single Speed CD Electric Wire Rope Hoist

The CD1 and MD1 Electric Wire Rope Hoists are compact lifting equipment that can be mounted on single-beam cranes, bridge cranes, gantry cranes, and jib cranes. With slight modifications, they can also be used as winches.

These hoists are widely used in factories, mines, harbors, warehouses, cargo storage areas, and workshops, significantly enhancing work efficiency and improving working conditions.

Model CD1 Electric Hoist operates at a single, normal speed, suitable for general applications.

Model MD1 Electric Hoist offers two speeds: normal speed and low speed. The low speed allows for precise lifting and unloading, sand box molding, machine tool maintenance, and other specialized tasks.

Technical Parameters

Model	CD1 0.25T	CD1 0.5T	CD1 1T	CD1 2T	CD1 3T	CD1 5T	CD1 10T	CD1 16T	CD1 20T
Capacity T	0.25	0.5	1	2	3	5	10	16	20
Standard lifting height m	3-9	6-12	6-30	6-30	6-30	6-30	9-30	9-18	9-18
Lifting Speed m/min	8	8	8	8	8	8	7	3.5	3.5
Running Speed m/min	20	20	20	20	20	20	20	20	20
Wire rope type	6X9	D-6X37+1	D-6X37+1	D-6X37+1	D-6X37+1	D-6X37+1	D-6X37+1	6X37+1	6X37+1
I-beam track type	16-22b	16-28b	16-28b	20a-32c	20a-32c	25a-63c	25a-63c	45a-63c	50a-63c
Loop track minimum radius m	0.8	1.5	1.5-4	2-4	2-4	2.5-5	2.5-9	3-4.6	3-4.6
Power supply	220V-440V,3phase,50/60HZ
Working Duty	Mid M3	Mid M3	Mid M3	Mid M3	Mid M3	Mid M3	Mid M3	Mid M2	Mid M2
