Product Details:
Payment & Shipping Terms:
|
| Name: | 0.5t To 16t Low Headroom Electric Wire Rope Hoist Leading Crane Double Speed | Lifting Capcity: | 0.5t-16t |
|---|---|---|---|
| Lifting Height: | 6m-12m, 6m-30m, 9m-30m | Speed: | Double |
| Color: | Yellow And Customized Color | Usage: | Industry, Construction And So On |
| Feature: | Low Headroom | ||
| High Light: | wire rope crane hoist,electric lifting hoist |
||
0.5t to 16t Low Headroom Electric Wire Rope Hoist Leading Crane Double Speed
Product Description:
MDL Low Headroom Electric Wire Rope Hoist
It is a lifting equipment which designed on the basis of MD1.
Usage:
Widely used in factories, mines, harbors, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
Features and advantages:
1. Choose single or double lifting speed, even multi-speed with frequency inverters.
2. The suitable rail for low-headroom hoist is H-type rail, and I-type also is available.
3. MDL provides two speeds: Normal speed and Low speed. It can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc at a low speed.
4. High quality and wide adaptation.
5. Excellent performance and 1 year warranty.
6. Sample order, OEM and ODM orders are all welcomed.

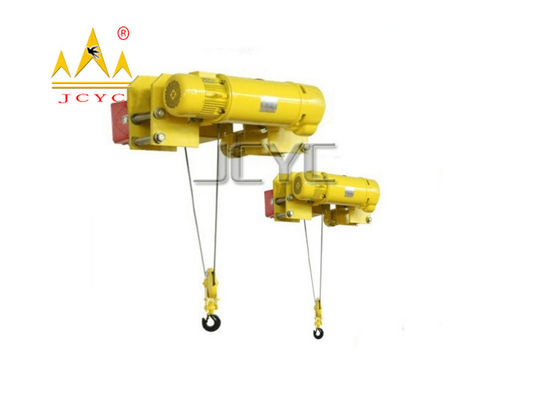

Photo:
Parameter:
| Model | Lifting Capacity(t) | Lifting Height(m) | Travelling Speed(m/min) | Wire Rope(Spec.) | Dia. Of Wire Rope(mm) | Lifting Motor | Power Supply | Running Motor |
| Power(kw) | Power(kw) | |||||||
| 0.5 | 6-12 | 8(0.8/8) | 20/30 | 6*37+FC | 4.8 | 0.8(0.2/0.8) | AC380V 50HZ,3P | 0.2 |
| 1 | 6-30 | 8(0.8/8) | 20/30 | 6*37+FC | 7.4 | 1.5(0.2/1.5) | 0.2 | |
| 2 | 6-30 | 8(0.8/8) | 20/30 | 6*37+FC | 11 | 3(0.4/3) | 0.4 | |
| 3 | 6-30 | 8(0.8/8) | 20/30 | 6*37+FC | 13 | 4.5(0.4/4.5) | 0.4 | |
| 5 | 6-30 | 8(0.8/8) | 20/30 | 6*37+FC | 15 | 7.5(0.8/7.5) | 0.8 | |
| 10 | 9-30 | 7(0.7/7) | 20/30 | 6*37+FC | 15 | 13(1.5/13) | 0.8*2 | |
| 16 | 9-30 | 3.5(0.35/3.5) | 18 | 6*37+FC | 17.5 | 13(1.5/13) | 0.8*2 |
Warm Note:
OEM, ODM, sample, trial and mixed orders are all welcomed to test our quality and service.
