0.5t to 16t Low Headroom Electric Wire Rope Hoist Double Speed

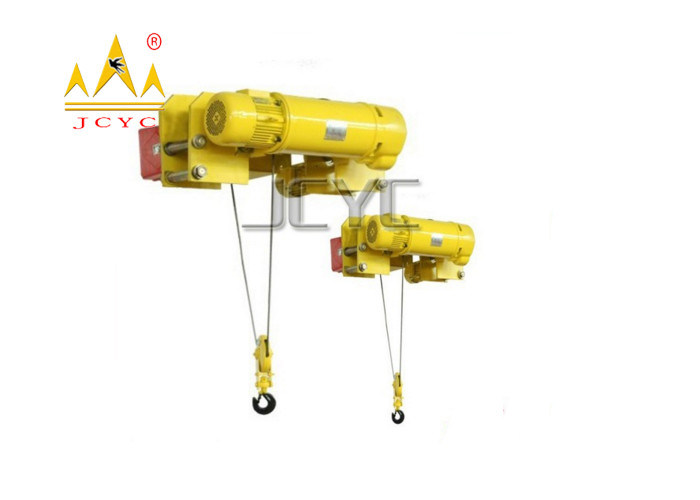

Large Image : 0.5t to 16t Low Headroom Electric Wire Rope Hoist Double Speed

Product Details:

Place of Origin:	China
Brand Name:	JCYC
Certification:	CE, ISO
Model Number:	MDL

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	Standard Export Package
Delivery Time:	about 12 workdays if no store
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5500 pcs per month

Contact Now

Detailed Product Description

Name:	Electric Wire Rope Hoist	Lifting Capcity:	0.5t-16t
Lifting Height:	6m-12m, 6m-30m, 9m-30m	Speed:	Double
Usage:	Industry, Construction And So On	Feature:	Low Headroom
Highlight:	wire rope crane hoist , electric lifting hoist

0.5t to 16t Low Headroom Electric Wire Rope Hoist Double Speed

MDL Low Headroom Electric Wire Rope Hoist is advanced lifting equipment designed based on the MD1 model, engineered for precision and efficiency in industrial applications.

Applications

Widely utilized in factories, mines, harbors, warehouses, cargo storage areas, and commercial shops to enhance operational efficiency and improve working conditions.

Key Features & Advantages

Available in single or double lifting speeds, with multi-speed options through frequency inverters
Compatible with H-type rails (I-type rails also available)
Dual-speed operation: Normal and Low speed for precise loading, unloading, sand box mounding, and machine tool maintenance
High-quality construction with wide adaptation capabilities
Excellent performance backed by 1-year warranty
Accepts sample orders, OEM, and ODM requests

Technical Specifications

Model	Lifting Capacity (t)	Lifting Height (m)	Travelling Speed (m/min)	Wire Rope Spec.	Dia. of Wire Rope (mm)	Lifting Motor Power (kw)	Power Supply	Running Motor Power (kw)
0.5	6-12	8(0.8/8)	20/30	6×37+FC	4.8	0.8(0.2/0.8)	AC380V 50HZ,3P	0.2
1	6-30	8(0.8/8)	20/30	6×37+FC	7.4	1.5(0.2/1.5)	AC380V 50HZ,3P	0.2
2	6-30	8(0.8/8)	20/30	6×37+FC	11	3(0.4/3)	AC380V 50HZ,3P	0.4
3	6-30	8(0.8/8)	20/30	6×37+FC	13	4.5(0.4/4.5)	AC380V 50HZ,3P	0.4
5	6-30	8(0.8/8)	20/30	6×37+FC	15	7.5(0.8/7.5)	AC380V 50HZ,3P	0.8
10	9-30	7(0.7/7)	20/30	6×37+FC	15	13(1.5/13)	AC380V 50HZ,3P	0.8×2
16	9-30	3.5(0.35/3.5)	18	6×37+FC	17.5	13(1.5/13)	AC380V 50HZ,3P	0.8×2

Ordering Information: OEM, ODM, sample, trial and mixed orders are all welcomed to test our quality and service.
