Product Details:
Payment & Shipping Terms:
|
| Lifting Height: | 9m-48m | Capcity: | 16t-80t |
|---|---|---|---|
| Lifting Speed: | 0.24, 2.4, 0.35, 3.5m/min | Power Supply: | 220v-440v,50HZ/60HZ, 3 Phases |
| Usage: | Industry, Constructruction, Ports, Etc | Working Duty: | Mid 3; Light M3,M6 |
| Highlight: | wire rope crane hoist,electric lifting hoist |
||
16t to 80t Blue Color Electric Wire Rope Hoist Adapts to Industry And Construction
Product Description:
Blue Color Electric Wire Rope Hoist with Huge Capacity
It is a lifting equipment which designed on the basis of MD1.
Usage:
Widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
Features and advantages:
1. Color variety.
2. Different power supply is available.
3. High quality material includes Q235B Schneider Control box, 20 Chromium manganese titanium gear and 40 chromium forge hook, etc.
4. Transmission shaft: 45#quenched and tempered steel; with thicken steel plate cover and coiling block.
5. High quality and wide adaptation.
6. Excellent performance.
7. 1 year warranty
8. Sample, OEM or ODM is ok
9. Standard export package is very stable and durable.

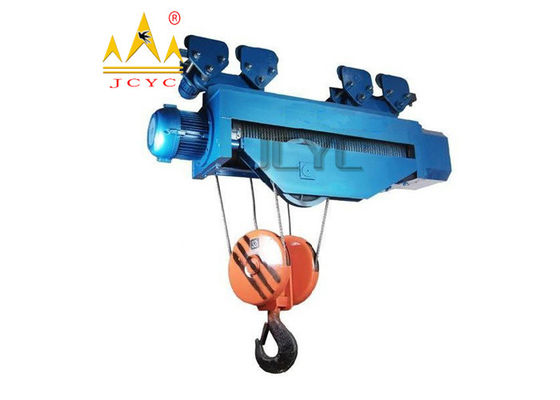

Photo:
Parameter:
| Model | Lifting Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Running Speed(m/min) | Wire Rope Type | Dia. Of Wire Rope | I Beam Track Type | Working Duty | Lifting Motor | Running Motor | ||||
| Power(kw) | R.P.M(r/min) | Power Supply | Power(kw) | R.P.M(r/min) | Power Supply | |||||||||
| HC-B16 | 16 | 9-48 | 3.5(3.5/0.35) | 20 | 6*19 | 17.5 | 50a-63c | M3 | 13(13/1.5) | 920(1400) | 220-440V 50/60HZ, 3 Phase | 0.8*2 | 1380 | 220-440V 50/60HZ, 3 Phase |
| HC-B20 | 20 | 9-24 | 3.5/0.3(4/0.4) | 20 | 6*37+1 | 20 | 50a-63c | M6 | 18.5(18.5/3) | 920(1400) | 0.8*4 | 1380 | ||
| HC-B25 | 25 | 9-24 | 2.4/0.24(3/0.3) | 20 | 6*37+1 | 20 | 50a-63c | M6 | 18.5(18.5/3) | 920(1400) | 0.8*4 | 1380 | ||
| HC-B32 | 32 | 9-24 | 2.4/0.24(3/0.3) | 20 | 6*37+1 | 26 | 50a-63c | M3 | 18.5(18.5/3) | 920 | 1.5*4 | 1380 | ||
| HC-B50 | 50 | 9-24 | 2.4/0.24 | 20 | 6*37+1 | 26 | 50a-63c | M3 | 18.5(18.5/3) | 920 | 1.5*4 | 1380 | ||
| HC-B80 | 80 | 9-24 | 2.4/0.24 | 20 | 6*37+1 | 26 | 50a-63c | M3 | 18.5(18.5/3) | 920 | 1.5*4 | 1380 | ||
Warm Note:
OEM, ODM, sample, trial and mixed orders are all welcomed to test our quality and service.
