PRODUCTS DETAILS

Home > Products >

Fast Type Mini Electric Wire Rope Hoist With Emergency Stop Switch

Products

Fast Type Mini Electric Wire Rope Hoist With Emergency Stop Switch

MOQ:	1 unit
Price:	Negotiable
Standard Packaging:	Standard Export Package
Delivery Period:	aroubd 12 workdays if no store
Payment Method:	L/C, T/T, Western Union
Supply Capacity:	5000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

CE, ISO

Model Number

PA Series

Product Name:

Fast Type Mini Electric Wire Rope Hoist With Emergency Stop Switch

Condition:

New Product

Capacity:

100kg-1000kg

Speed:

4-10m/min

Height:

6m-12m

Power Supply:

AC 100-240V, 50/60HZ Single Phase

Highlight:

wire rope crane hoist

electric lifting hoist

Product Description

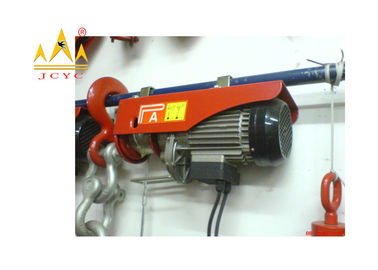

Fast Type Mini Electric Wire Rope Hoist With Emergency Stop Switch

Product Description:

PA Series Mini Electric Wire Rope Crane Hoist Fast Type With Emergency Stop Switch

Usage:

The suspension mini electric hoist belongs to mini electric hoists; it can be only fixed use without trolley. Very suitable for daily civilian using, industrial production line, freight logistics and other places.

Features and Advantages:

1. Small wire rope hoist with emergency stop switch.

2. Reinforced braking switch with position limit.

3. Protection class ups to IP54.

4. Mini steel wire rope hoist with thermal prevention device.

5. Combine with PA Series Mini electric hoists or chain hoists.

6. Can running on beam and move the load.

7. Single phase and optional voltage like 110V, 120V, 220V, 230V, etc.

8. Unique design and elegant shape.

9. The suspension parts allows an unique and safe installation.

10. Increases service life by 20 times.

Parameters:

Model	Use	Rated Voltage	Input Power(W)	Rated Capacity(kg)	Lifting Speed(m)	Lifting Height(m)	G.W/N.W(kg)	Package Size(mm)

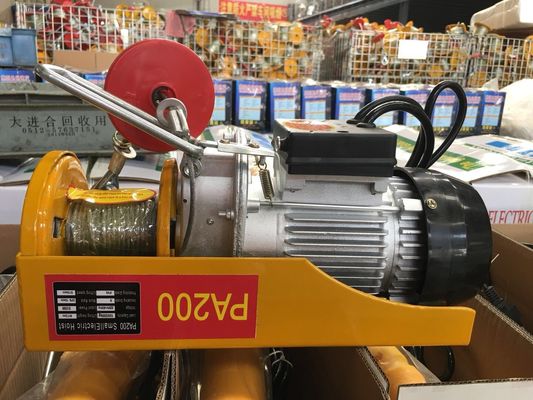

PA200	Single-hook	AC220/230V, 50/60Hz, Single Phase	480	100	10	12	31/29	494147
PA200	Double-hook		480	200	5	6
PA250	Single-hook		510	125	10	12
PA250	Double-hook		510	250	5	6
PA300	Single-hook		600	150	10	12
PA300	Double-hook		600	300	5	6
PA400	Single-hook		950	200	10	12	35/33	544848
PA400	Double-hook		950	400	5	6
PA500	Single-hook		1020	250	10	12
PA500	Double-hook		1020	500	5	6
PA600	Single-hook		1200	300	10	12	37/35
PA600	Double-hook		1200	600	5	6	39/37
PA800	Single-hook		1300	400	8	12	56/54
PA800	Double-hook		1300	800	4	6
PA1000	Single-hook		1600	500	8	12		625153

Warm Note:

OEM, ODM, sample, trial and mixed orders are all welcomed to test our quality and service.

Product show
