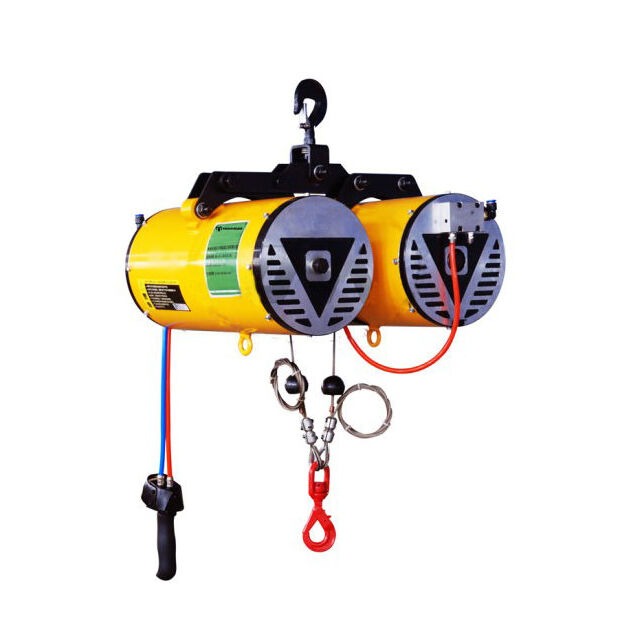

400kg Lifting Tools / Pneumatic Balancer with Wire Rope Reel

400kg Lifting Tools / Pneumatic Balancer with Wire Rope Reel
400kg Lifting Tools / Pneumatic Balancer with Wire Rope Reel 400kg Lifting Tools / Pneumatic Balancer with Wire Rope Reel 400kg Lifting Tools / Pneumatic Balancer with Wire Rope Reel

Large Image :  400kg Lifting Tools / Pneumatic Balancer with Wire Rope Reel

Product Details:
Place of Origin: China
Brand Name: JCYC, OEM
Certification: CE, ISO
Model Number: QBM
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: around 12 workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 per month
Detailed Product Description
High Light:

horizontal lifting clamp

,

steel lifting clamps

400kg Lifting Tools / Pneumatic Balancer with Wire Rope Reel​





Usage:



Suitable for occasions requiring stable transportation, like production, processing and lifting of aircraft, aerospace, automobiles, precision machinery, fragile and explosive products, etc.



Features and advantages:



1. Durable, reliable and free maintenance wire rope reel.

2. Double dustproof ball bearing with thrust.

3. The piston and cylinder are lubricated by Germany grease so the reciprocating movement is lighter and smoother when compressed air enters the cylinder.

4. Pneumatic valve: Precision piston motion controls in and out air, achieves floating and balance functions.

5. The button control handle accurately and effectively controls speed and rhythm of lifting and dropping.

6. Gas protection: the brake will be automatically locked and directly controlled by centrifugal brake when the gas source is suddenly cut off to prevent loads from falling off.

7. Brake mechanism: a centrifugal brake system can effectively controls suddenly rise or drop of wire rope and hook which caused by suddenly weight loss or falling.

8. Ball screw: the piston pushes roller in the drum to rotate the roller synchronously so drives wire rope to lifting loads.

9. Working principle: the pressure energy of compressed air will be converted into rotary mechanical energy by movement of cylinder piston and the output torque drives the lifting mechanism to run. It has a balanced control valve and a control switch to lifting and balancing objects.

10. Our professional enginnering and technical personnel can make the best handling solution for you according to your specific usage and installation requirements.

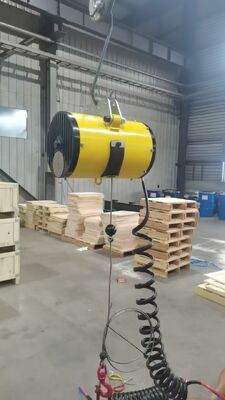

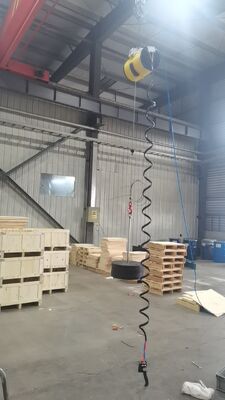

Photo:

400kg Lifting Tools / Pneumatic Balancer with Wire Rope Reel 0

400kg Lifting Tools / Pneumatic Balancer with Wire Rope Reel 1

Parameter:



Items Unit Specifications
Capacity kg 0-60 60-100 100-200 200-400
SWL m 1.4 1.8 2 1
Φ mm 165 260 260 260
L mm 410 406 520 520
A1 mm 240 290 290 290
A2 mm 400 450 450 450
Number of Wire Rope pc 1 1 1 2
Working Medium Compressed Air
Working Pressure mpa 0.1-0.7 0.1-0.7 0.1-0.7 0.1-0.7
Air Consumption M3/min 0.27 0.33 0.35 0.36
Hose Fitting Thread in G 3/8 G 3/8 G 3/8 G 3/8
Hose Dia. mm 10/12 10/12 10/12 10/12
N.W kg 25 37 58 62
Speed Range Rated Load Speed UP m/min 59 30 17 8
No load Speed Down m/min 23 25 26 28



Warm Note:



OEM, ODM, sample order, trial order and mixed order are all acceptable. One year warranty and free replacement if any quality problem inside 7 days.
