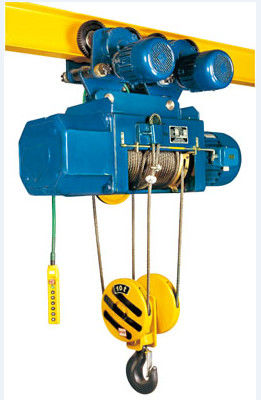

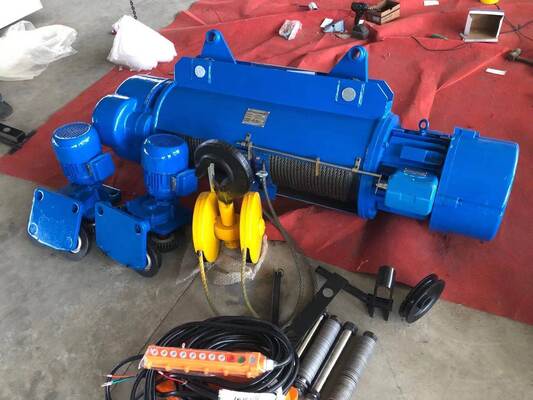

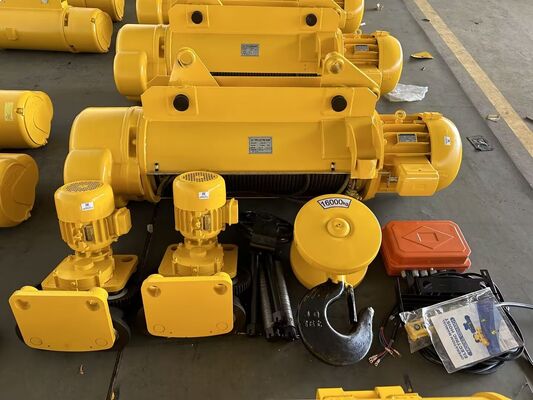

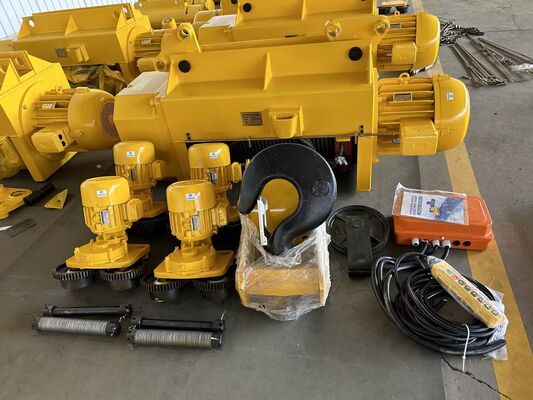

10 T Large Capacity Electric Wire Rope Hoist with 220v-440v,50HZ/60HZ Power and 6m Lifting Height

MOQ: 1 unit
Price: $500-$10000
Standard Packaging: Plywood case
Delivery Period: 10 -15 working days
Payment Method: L/C,T/T,Western Union
Supply Capacity: 500 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE&ISO
Model Number
HC-A & HC-B
Product Name:
10 T Large Capacity Electric Wire Rope Hoist Blue Color
Capcity:
0.25t-50t
Standard Lifting Height:
6m
Color:
Blue
Voltage:
220v-440v,50HZ/60HZ
Usage:
Lifting Goods
Highlight:

wire rope crane hoist

,

stainless steel wire rope hoist

Product Description
10 T Large Capacity Electric Wire Rope Hoist Blue Color
The HC-A & HC-B Model Electric Wire Rope Hoist is a high-performance lifting equipment designed based on CD1/MD1 standards. Ideal for industrial applications in factories, mines, harbors, warehouses, cargo storage areas, and shops, this hoist significantly enhances work efficiency and improves operational conditions.
Key Features and Advantages
  • Available in multiple color options
  • Flexible power supply configurations
  • Premium materials including Q235B Schneider Control box, 20 Chromium manganese titanium gear, and 40 chromium forged hook
  • Durable transmission shaft made of 45# quenched and tempered steel with thickened steel plate cover and coiling block
  • Exceptional performance and wide adaptability
  • Comprehensive 1-year warranty
  • Customization options available (Sample, OEM, or ODM)
Technical Specifications
Model Lifting Capacity (t) Lifting Height (m) Lifting Speed (m/min) Running Speed (m/min) Wire Rope Type Dia. Of Wire Rope I Beam Track Type Working Duty Lifting Motor Running Motor
Power (kw) R.P.M (r/min) Power Supply Power (kw) R.P.M (r/min) Power Supply
HC-A0.25 0.25 3-9 8 20 6*19 3.6 16-22b M3 0.4 1380 220-440V 50/60HZ, 3 Phase 0.06 1400 220-440V 50/60HZ, 3 Phase
HC-A0.5 0.5 6-12 8 20 6*37+1 4.8 16-28b M3 0.8 1380 220-440V 50/60HZ, 3 Phase 0.2 1380 220-440V 50/60HZ, 3 Phase
HC-A1 1 6-30 8 20 6*37+1 7.4 16-28b M3 1.5 1380 220-440V 50/60HZ, 3 Phase 0.2 1380 220-440V 50/60HZ, 3 Phase
HC-A2 2 6-30 8 20 6*37+1 11 20a-32c M3 3 1380 220-440V 50/60HZ, 3 Phase 0.4 1380 220-440V 50/60HZ, 3 Phase
HC-A3 3 6-30 8 20 6*37+1 13 20a-32c M3 4.5 1380 220-440V 50/60HZ, 3 Phase 0.4 1380 220-440V 50/60HZ, 3 Phase
HC-A5 5 6-30 8 20 6*37+1 15 25a-63c M3 7.5 1380 220-440V 50/60HZ, 3 Phase 0.8 1380 220-440V 50/60HZ, 3 Phase
HC-A10 10 6-30 7 20 6*37+1 15 25a-63c M3 13 1400 220-440V 50/60HZ, 3 Phase 0.8*2 1380 220-440V 50/60HZ, 3 Phase
HC-A16 16 6-30 3.5 20 6*37+1 15 45a-63c M2 13 1400 220-440V 50/60HZ, 3 Phase 0.8*2 1380 220-440V 50/60HZ, 3 Phase
HC-A20 20 6-30 3.5 20 6*37+1 20 50a-63c M2 13 1400 220-440V 50/60HZ, 3 Phase 0.8*2 1380 220-440V 50/60HZ, 3 Phase
10 T Large Capacity Electric Wire Rope Hoist with 220v-440v,50HZ/60HZ Power and 6m Lifting Height 0 10 T Large Capacity Electric Wire Rope Hoist with 220v-440v,50HZ/60HZ Power and 6m Lifting Height 1 10 T Large Capacity Electric Wire Rope Hoist with 220v-440v,50HZ/60HZ Power and 6m Lifting Height 2
