Product Details:
Payment & Shipping Terms:
|
| Capacity: | 1 T-12.5 T | Color: | Customized |
|---|---|---|---|
| Voltage: | 220v-440v,50HZ/60HZ | Lifting Speed: | Single Speed , Double Speed , Frequency Controlled Speed |
| Lifting Height: | 6 M - 36 M | Material: | Steel |
| High Light: | electric lifting hoist,stainless steel wire rope hoist |
||

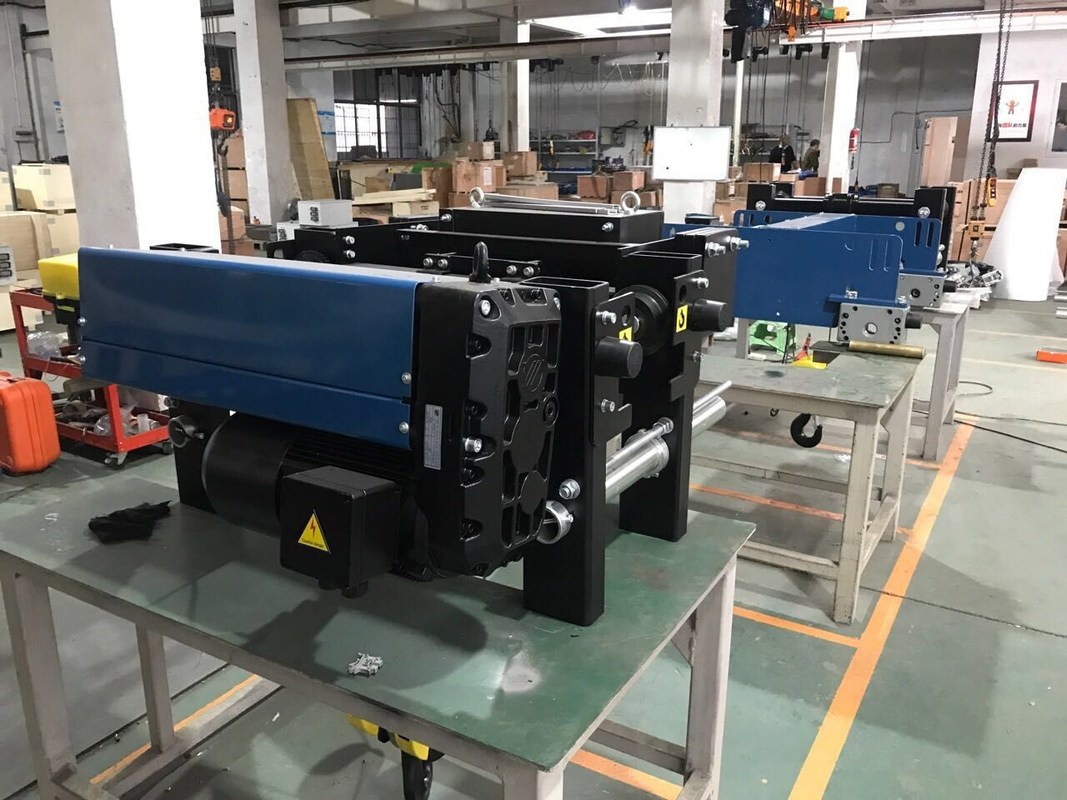

Low Headroom Crane Electric Wire Rope Hoist With Pendant Control or Remote control
Product Details:
Low-headroom design, Enclosed in-line gear train with oil bath lubrication, Mechanical load brake and Electric motor brake
Widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
Features and advantages:
1. High performance hoist delivers exceptional reliability in even the most demanding applications.
2. Maximize overhead clearance and minimizes beam-to-hook distance.
3. Protect loads and production machinery from unnecessary contact and damage.
4. Specified by the military because all critical welds are magnetic particle inspected.
5. Top-quality components and design features provide operator peace-of-mind.
6. High quality and wide adaptation.
7. Excellent performance and 1 year warranty.
8. Sample, OEM and ODM are all ok.
Product parameters:
| Capacity (t) |
Lifting Height (m) |
Lifting Speed (m/min) |
Lifting Motor (kw) |
Travelling Speed (m/min) |
TravellingMotor (kw) |
Lifting System (FEM/ISO) |
Travelling System (FEM/ISO) |
I-Beam Width (mm) |
||
| 2 | 6/9/12/15/18 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 3M | M6 | 2M | M5 | 150-300 |
| 3.2 | 6/9/12/15/18 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 150-300 |
| 5 | 6/9/12/15/18 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 200-350 |
| 6.3 | 6/9/12/15/18 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 1Am | M4 | 2M | M5 | 200-350 |
| 8 | 6/9/12/15/18 | 5/0.8 | 9.5/1.5 | 5/20 | 0.75 | 3M | M6 | 2M | M5 | 200-410 |
| 10 | 6/9/12/15/18 | 5/0.8 | 9.5/1.5 | 5/20 | 0.75 | 2M | M5 | 2M | M5 | 200-410 |
| 12.5 | 6/9/12/15/18 | 4/0.6 | 12.5/2 | 5/20 | 0.75 | 1Am | M4 | 2M | M5 | 200-410 |
| 16 | 6/9/12/15/18 | 4/0.6 | 16/2.6 | 5/20 | 0.75*2 | 2M | M5 | 2M | M5 | 300-450 |
| 20 | 6/9/12/15/18 | 4/0.6 | 16/2.6 | 5/20 | 0.75*2 | 1Am | M4 | 2M | M5 | 300-450 |
| 8 | 20/24/28/32/36 | 8/1.3 | 12.5/2 | 5/20 | 0.75 | 2M | M5 | 2M | M5 | 200-410 |
| 10 | 20/24/28/32/36 | 8/1.3 | 16/2.6 | 5/20 | 0.75 | 2M | M5 | 2M | M5 | 200-410 |
| 12.5 | 20/24/28/32/36 | 6.3/1 | 16/2.6 | 5/20 | 0.75 | 1Am | M4 | 2M | M5 | 200-410 |
Product show
