Standard Headroom Electric Wire Rope Hoist With Motor Trolley Designed Double Speed

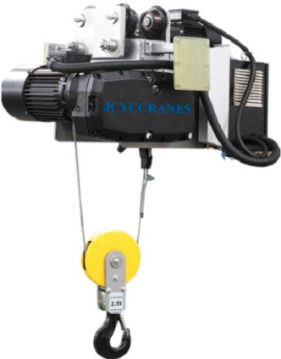

Large Image : Standard Headroom Electric Wire Rope Hoist With Motor Trolley Designed Double Speed

Product Details:

Place of Origin:	China
Brand Name:	JCYC
Certification:	CE&ISO
Model Number:	SHSL-D

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD negotiate per unit
Packaging Details:	Plywood case
Delivery Time:	10 -15 working days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	500 pcs per month

Contact Now

Detailed Product Description

Name:	Standard Headroom Electric Wire Rope Hoist	Usage:	Construction Hoist
Power Source:	Electric	Maximum Lifting Weight:	50t
Maximum Lifting Height:	30m	Lift Speed:	5/0.8m/mim
Highlight:	electric lifting hoist , stainless steel wire rope hoist

Standard Headroom Electric Wire Rope Hoist With Motor Trolley - Double Speed Design

These standard headroom electric hoists with motor trolleys are designed for industrial applications including factories, warehouses, and storage yards for material handling. Not suitable for flammable, explosive, or corrosive environments.

Key Features & Advantages

Double speed lifting motor for 1t-32t capacity hoists; variable frequency lifting motor for 32t-80t capacity hoists
Electromagnetic disc brake with maintenance-free design
Integrated lifting limit switch for safety
Trolley equipped with variable frequency motor, speed range: 5-20m/min
Motor protection grade: IP55, insulation grade: F
Hook set includes safety buckles for secure operation
Load lifting limiter for overload protection

Technical Specifications

Capacity (kg)	Lifting Height (m)	Lifting Speed (m/min)	Lifting Power (KW)	Travelling Speed (m/min)	Travelling Power (kw)	Working Group (FEM/ISO)	Traveling Working Group (FEM/ISO)	I-beam B(mm)
2000	6	5/0.8	3.2/0.45	5/20	0.37	3M M6	2M M5	100-250
	9	5/0.8	3.2/0.45	5/20	0.37	3M M6	2M M5	100-250
	12	5/0.8	3.2/0.45	5/20	0.37	3M M6	2M M5	100-250
	15	5/0.8	3.2/0.45	5/20	0.37	3M M6	2M M5	100-250
	18	5/0.8	3.2/0.45	5/20	0.37	3M M6	2M M5	100-250
3200	6	5/0.8	3.2/0.45	5/20	0.37	2M M5	2M M5	100-250
	9	5/0.8	3.2/0.45	5/20	0.37	2M M5	2M M5	100-250
	12	5/0.8	3.2/0.45	5/20	0.37	2M M5	2M M5	100-250
	15	5/0.8	3.2/0.45	5/20	0.37	2M M5	2M M5	100-250
	18	5/0.8	3.2/0.45	5/20	0.37	2M M5	2M M5	100-250
5000	6	5/0.8	6.1/1	5/20	0.55	2M M5	2M M5	150-300
	9	5/0.8	6.1/1	5/20	0.55	2M M5	2M M5	150-300
	12	5/0.8	6.1/1	5/20	0.55	2M M5	2M M5	150-300
	15	5/0.8	6.1/1	5/20	0.55	2M M5	2M M5	150-300
	18	5/0.8	6.1/1	5/20	0.55	2M M5	2M M5	150-300

Note: Additional capacity configurations from 6300kg to 20000kg are available with varying specifications. Please contact us for complete technical data.

Product Images
