Product Details:
Payment & Shipping Terms:
|
| Category: | Conductor Line | Feature: | Good Conductivity |
|---|---|---|---|
| Application: | Power Supply System For Crane Traveling | Dimensions: | Customised |
| Max. Current: | 240A | Max. Voltage: | 660V |
| High Light: | steel crane wheels,crane wheel blocks |
||

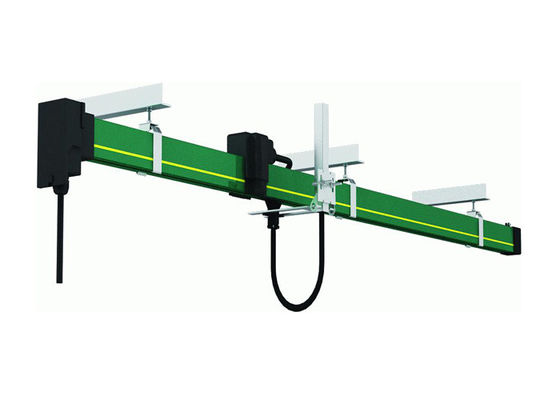

Light Weight Good Conductivity Sliding Contact Line Conductor Bar Systems
Specifications:
| Electrical parameters: | |
| Max. Current | 240A |
| Max. Voltage | 660V |
| Dielectric strength | 30-40KV/mm |
| Spec. resistance | 5 ×1015 Ohm × cm |
| Surface resistivity | 1013 Ohm × cm |
| Leakage resistance | CTI600-2.7 |
| Mechanical parameters: | |
| Flexible strength | 75N/mm2 ±10% |
| Tensile strength | 40N/mm2 ±10% |
| Temperature range: | |
| Standard Housing | -20ºC — +70ºC |
| High Temp. Housing | -10ºC — +115ºC |
| Low Temp. Housing | -40ºC — +80ºC |
| Combustibility: | |
| Flame retardant | Class B1 - no flaming particles, self-extinguishing |
| Resistance to chemicals: | |
| +45ºC | |
| Gasoline | Sulphuric acid 50% |
| Mineral oil | Caustic soda 25% & 50% |
| Grease | Hydro-chloric acid, concentrated |
Product Description:
| Model | Poles | Conductor cross section (mm²) | Max. Current (A) | Leakage-distance (mm) | Max. Voltage (V) | Resistance (Ω/km) | Weight (kg) |
| HFP56-4-8/35 | 4 | 8 | 35 | 35 | 660 | 1.944 | 2.09 |
| HFP56-4-10/50 | 4 | 10 | 50 | 35 | 660 | 1.656 | 2.16 |
| HFP56-4-12/65 | 4 | 12 | 65 | 35 | 660 | 1.321 | 2.23 |
| HFP56-4-15/80 | 4 | 15 | 80 | 35 | 660 | 1.137 | 2.30 |
| HFP56-4-20/100 | 4 | 20 | 100 | 33 | 660 | 1.011 | 2.43 |
| HFP56-4-25/120 | 4 | 25 | 120 | 33 | 660 | 0.713 | 2.56 |
| HFP56-4-35/140 | 4 | 35 | 140 | 33 | 660 | 0.522 | 2.95 |
| HFP56-4-50/170 | 4 | 50 | 170 | 33 | 660 | 0.337 | 3.25 |
| HFP56-4-70/210 | 4 | 70 | 210 | 33 | 660 | 0.265 | 3.85 |
| HFP56-4-80/240 | 4 | 80 | 240 | 30 | 660 | 0.233 | 4.16 |
