10 Ton Span 20M Single Girder End Carriage With Motor For Overhead Crane
  • name
  • name
  • name
  • name

10 Ton Span 20M Single Girder End Carriage With Motor For Overhead Crane

MOQ: 1 set
Price: 650 usd
Standard Packaging: Plywood case
Delivery Period: 15 to 20 working days
Payment Method: T/T
Supply Capacity: 200 to 300 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE & ISO9001
Model Number
JCYC-KEC
Product Name:
Single Girder End Carriage
Capacity:
1ton-20ton
Span:
3-30m
Use:
For Overhead Crane
Traveling Speed:
20m/min
Working Temperature:
-25℃ – 50℃
Highlight:

crane wheel

,

crane wheel blocks

Product Description
10 Ton Span 20M Single Girder End Carriage With Motor For Overhead Crane
Complete single girder end carriage assembly with integrated motor system designed for overhead crane applications.
Selection Guide
Capacity-Based Wheel Selection
  • Below 3 tons: LD150 wheels or LD200 wheels
  • 3–10 tons: LD300 wheels
Runway Type Wheel Selection
  • I-beams (14#, 16#, 18#, 20#): LD150 wheels with wheel groove width 110/130 mm
  • Rail steel (12#, 15#, 18#): LD200 wheels with wheel groove width 60 mm
Example: 5-Ton Crane with 6m Lifting Height
For capacities above 3 tons, LD300 wheels are recommended.
End Carriage Set Components
  • 2 × end carriages
  • 4 × wheels
  • 2 × motors
  • 2 × gearboxes
  • 4 × buffer blocks
End Carriage Length Selection
  • Span ≤ 5 m: 1.2 m end carriage
  • Span 5–7.5 m: 1.5 m end carriage
  • Span 7.5–12 m: 2.0 m end carriage
Key Features & Advantages
  • High-quality materials: Premium steel construction for strong structure and long service life
  • High-performance bearings: Smooth operation with low noise and reduced wear
  • Quality assurance: Box-type steel plate beam design, resistant to deformation
  • Carburized gears: Large starting torque, stable and smooth running speed
  • Copper-winding motor: Smooth start-up, strong power output, long service life
  • Customizable: End carriage solutions tailored to customer requirements
Technical Specifications
10 Ton Span 20M Single Girder End Carriage With Motor For Overhead Crane 0
Model Crane Rectangular Wheel Size Motor power S1
(mm)		 S2
(mm)		   W1
(mm)		 W2
(mm)
GL125-15 1t-7.5m 150*150*6 W125*60 0.3KW*2 1500  1300  400  500
GL125-20 1t-11.5m 150*150*6 W125*60 0.3KW*2 2000  1800  400  500
GL125-25 1t-16.5m 150*150*6 W125*60 0.3KW*2 2500  2300  400  500
GL160-15 2t/3t-7.5m 150*200*8 W160*70 0.4KW*2 1500  1200  400  500
GL160-20 2t/3t-11.5m 150*200*8 W160*70 0.4KW*2 2000  1700  400  500
GL160-25 2t/3t-16.5m 150*200*8 W160*70 0.4KW*2 2500  2200  400  500
GL160-30 2t/3t-22.5m 150*200*8 W160*70 0.4KW*2 3000  2700  500  600
GL160-35 2t/3t-28.5m 150*200*8 W160*70 0.4KW*2 3500  3200  600  700
GL200-20 5t-11.5m 150*250*8 W200*70 0.4KW*2 2000  1700  400  500
GL200-25 5t-16.5m 150*250*8 W200*70 0.4KW*2 2500  2200  400  500
GL200-30 5t-22.5m 150*250*8 W200*70 0.75KW*2 3000  2700  500  600
GL200-35 5t-28.5m 150*250*8 W200*70 0.75KW*2 3500  3200  600  700
GL250-20 10t-11.5m 200*250*8 W250*80 0.75KW*2 2000  1600  400  500
GL250-25A 10t-16.5m 200*250*8 W250*80 0.75KW*2 2500  2100  500  600
GL250-30A 10t-22.5m 200*250*8 W250*80 1.1KW*2 3000  2600  500  600
GL250-35A 10t-28.5m 200*250*8 W250*80 1.1KW*2 3500  3100  700  800
GL250-25B 16t-16.5m 200*300*8 W250*80 1.1KW*2 2500  2100  600  700
GL250-30B 16t-22.5m 200*300*8 W250*80 1.1KW*2 3000  2600  700  800
GL250-35B 16t-28.5m 200*300*8 W250*80 1.5KW*2 3500  3100  700  800
GL315-30 20t-16.5m 200*400*8 W315*90 1.5KW*2 3000  2500  700  800
GL315-35 20t-22.5m 200*400*8 W315*90 1.5KW*2 3500  3000  700  800

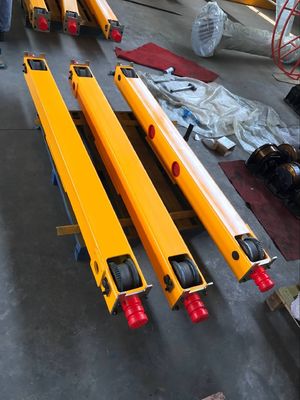

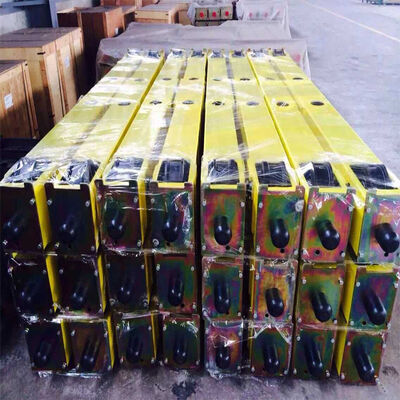

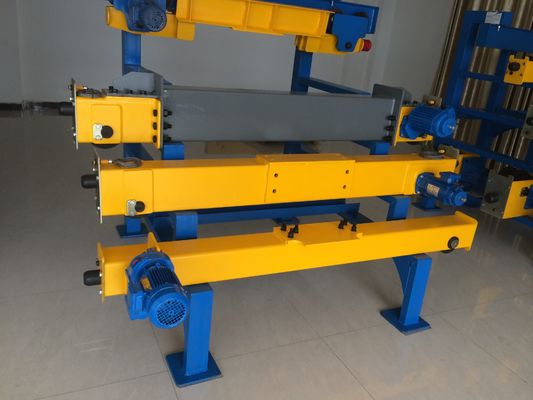

Product Images
10 Ton Span 20M Single Girder End Carriage With Motor For Overhead Crane 1 10 Ton Span 20M Single Girder End Carriage With Motor For Overhead Crane 2 10 Ton Span 20M Single Girder End Carriage With Motor For Overhead Crane 3
