5Ton Single Girder Electric Wire Rope Hoist With New Design European Standard

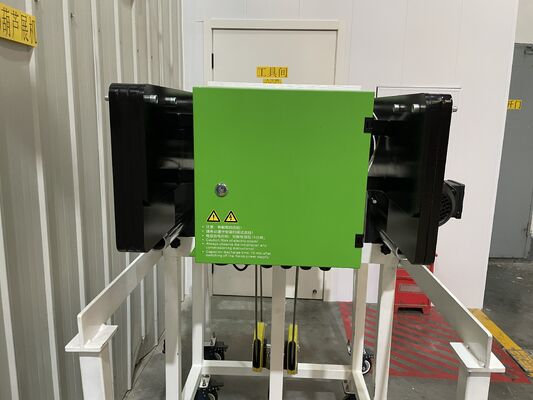

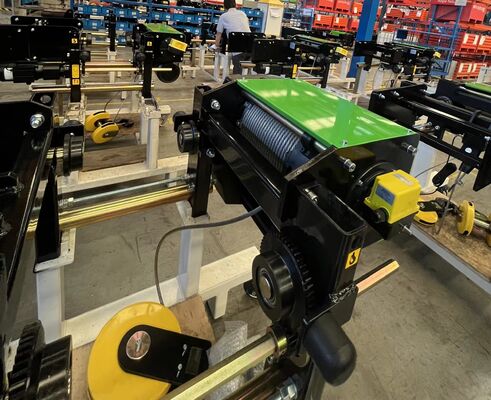

Large Image : 5Ton Single Girder Electric Wire Rope Hoist With New Design European Standard

Product Details:

Place of Origin:	China
Brand Name:	JCYC
Certification:	CE
Model Number:	ECO

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	15 working days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000 pcs/ week

Contact Now

Detailed Product Description

Product:	Single Girder Electric Wire Rope Hoist	Max.Capacity:	20 Ton
Min. Capacity:	3.2 Ton	Lifting Speed:	0-8m/min
Travel Speed:	0-20m/min	Power Supply:	380v/440v 3phase 50/60Hz
Sling Type:	Wire Rope	Work Temperature:	-20-50℃
Highlight:	horizontal plate clamp , steel lifting clamps

5-Ton Single Girder Electric Wire Rope Hoist with European Standard Design

The European-type electric hoist represents a new-generation lifting solution engineered for industrial applications. Featuring imported lifting motors and gear reducers, this hoist integrates a compact design that combines the lifting motor, reducer, drum, and lifting limit switch into a unified system, significantly optimizing installation space requirements.

Advanced modular construction enhances mechanism reliability while effectively reducing maintenance time and operational costs. The hoist delivers higher lifting speeds with multiple reeving configurations to accommodate diverse application needs. The standard trolley traveling mechanism incorporates variable frequency drive (VFD) control, achieving speeds up to 20 m/min for smooth operation with minimal load sway and precise positioning—making it ideal for handling precision equipment and high-value loads.

Key Product Features

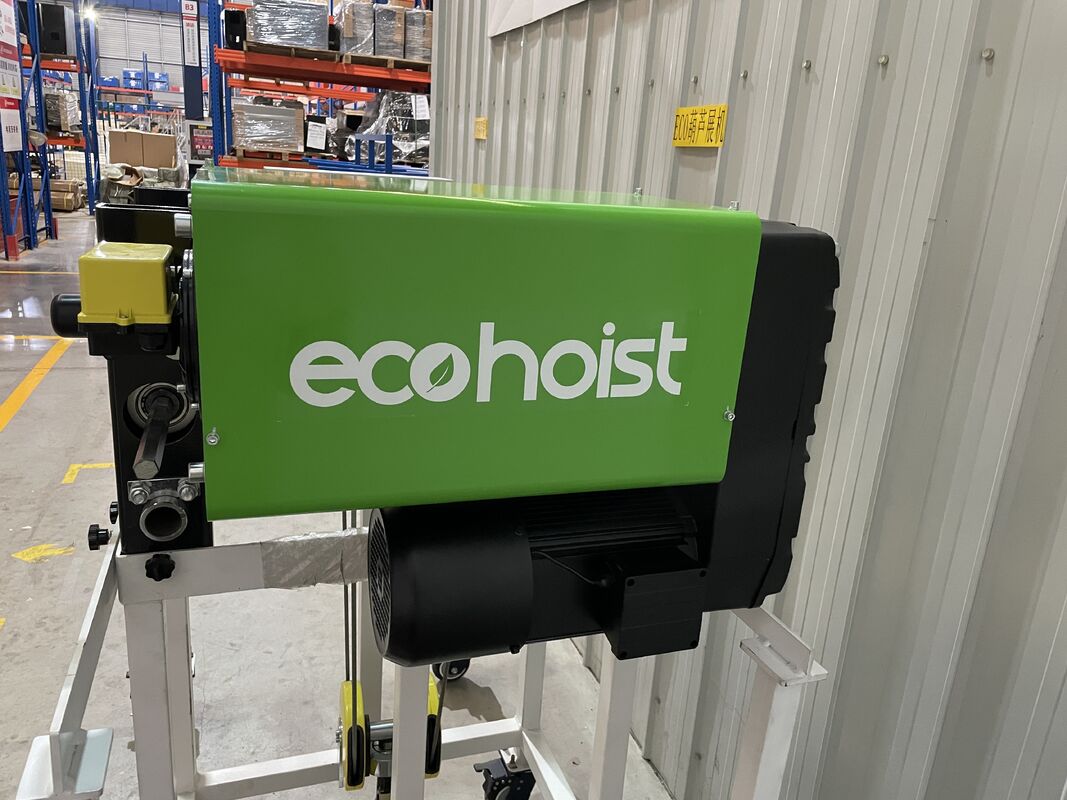

Modular Design - Compact Structure and Lightweight: The ECO hoist's modular architecture creates a more compact footprint and reduced weight compared to conventional lifting equipment, complemented by a distinctive green housing for modern aesthetics.
Low Noise Operation - Enhanced Working Environment: Operating at 65-75 dB (depending on power rating), the ECO hoist generates substantially less noise than traditional models, minimizing workplace disruption.
Safe and Reliable Performance - Ensuring Work Quality: With IP55 protection rating for superior dust and water resistance, F-class insulation for electrical safety, and duty cycle up to 40%, this hoist maintains stable performance in demanding conditions.

Cost-Effective Upgrade Solution: The ECO hoist combines advanced technology with high-quality materials to deliver robust load capacity and operational stability. Its plug-and-play design enables direct replacement of traditional CD/MD hoists without structural modifications, substantially reducing retrofit expenses.

Technical Specifications

Capacity (kg)	FEM	ISO	Height (m)	Lifting Speed (m/min)	Trolley Speed (m/min)	Lifting Motor (kw)	Trolley Motor (kw)
3200	2m	M5	6/9/12	0-5	0-20	3.2	0.4
3200	2m	M5	6/9/12	0-8	0-20	4.5	0.4
5000	2m	M4	6/9/12/18	0-5	0-20	4.9	0.4
5000	2m	M4	6/9/12/18	0-8	0-20	7.5	0.4
10000	2m	M5	6/9/12/18	0-5	0-20	9	0.4*2
16000	2m	M5	6/9/12/18	0-3.5	0-20	404	0.8*2
20000	1Am	M4	6/9/12/18	0-3.5	0-20	404	0.8*2
