| Name: | Lifting Goods Electric Wire Rope Hoist Leading Crane Large-tonnage With Trolley | Color: | Customized |
|---|---|---|---|
| Capcity: | 0.25t-50t | Lifting Height: | 3m-24m |
| Voltage: | 220v-440v,50HZ/60HZ | Usage: | Lifting Goods |
| High Light: | wire rope crane hoist,stainless steel wire rope hoist |
||

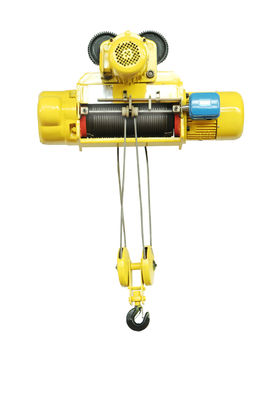

Lifting Goods Electric Wire Rope Hoist Leading Crane Large-tonnage With Trolley
HC-A HC-B ELECTRIC WIRE ROPE HOIST
HC-A & HC-B Model, Electric Wire Rope Hoist
It is a lifting equipment which designed on the basis of CD1/MD1.
Widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
Product Details:
HC-A HC-B Electric Wire Rope Hoist
Features and advantages:
1. Color variety.
2. Different power supply is available.
3. High quality material includes Q235B Schneider Control box, 20 Chromium manganese titanium gear and 40 chromium forge hook, etc.
4. Transmission shaft: 45#quenched and tempered steel; with thicken steel plate cover and coiling block.
5. High quality and wide adaptation.
6. Excellent performance.
7. 1 year warranty
8. Sample, OEM or ODM is ok.
Technique parameters:
| Model | Lifting Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Running Speed(m/min) | Wire Rope Type | Dia. Of Wire Rope | I Beam Track Type | Working Duty | Lifting Motor | Running Motor | ||||
| Power(kw) | R.P.M(r/min) | Power Supply | Power(kw) | R.P.M(r/min) | Power Supply | |||||||||
| HC-A0.25 | 0.25 | 3-9 | 8 | 20 | 6*19 | 3.6 | 16-22b | M3 | 0.4 | 1380 | 220-440V 50/60HZ, 3 Phase | 0.06 | 1400 | 220-440V 50/60HZ, 3 Phase |
| HC-A0.5 | 0.5 | 6-12 | 8 | 20 | 6*37+1 | 4.8 | 16-28b | M3 | 0.8 | 1380 | 0.2 | 1380 | ||
| HC-A1 | 1 | 6-30 | 8 | 20 | 6*37+1 | 7.4 | 16-28b | M3 | 1.5 | 1380 | 0.2 | 1380 | ||
| HC-A2 | 2 | 6-30 | 8 | 20 | 6*37+1 | 11 | 20a-32c | M3 | 3 | 1380 | 0.4 | 1380 | ||
| HC-A3 | 3 | 6-30 | 8 | 20 | 6*37+1 | 13 | 20a-32c | M3 | 4.5 | 1380 | 0.4 | 1380 | ||
| HC-A5 | 5 | 6-30 | 8 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 7.5 | 1380 | 0.8 | 1380 | ||
| HC-A10 | 10 | 6-30 | 7 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 13 | 1400 | 0.8*2 | 1380 | ||
| HC-A16 | 16 | 6-30 | 3.5 | 20 | 6*37+1 | 15 | 45a-63c | M2 | 13 | 1400 | 0.8*2 | 1380 | ||
| HC-A20 | 20 | 6-30 | 3.5 | 20 | 6*37+1 | 20 | 50a-63c | M2 | 13 | 1400 | 0.8*2 | 1380 | ||
| Model | Lifting Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Running Speed(m/min) | Wire Rope Type | Dia. Of Wire Rope | I Beam Track Type | Working Duty | Lifting Motor | Running Motor | ||||
| Power(kw) | R.P.M(r/min) | Power Supply | Power(kw) | R.P.M(r/min) | Power Supply | |||||||||
| HC-B16 | 16 | 9-48 | 3.5(3.5/0.35) | 20 | 6*19 | 17.5 | 50a-63c | M3 | 13(13/1.5) | 920(1400) | 220-440V 50/60HZ, 3 Phase | 0.8*2 | 1380 | 220-440V 50/60HZ, 3 Phase |
| HC-B20 | 20 | 9-24 | 3.5/0.3(4/0.4) | 20 | 6*37+1 | 20 | 50a-63c | M6 | 18.5(18.5/3) | 920(1400) | 0.8*4 | 1380 | ||
| HC-B25 | 25 | 9-24 | 2.4/0.24(3/0.3) | 20 | 6*37+1 | 20 | 50a-63c | M6 | 18.5(18.5/3) | 920(1400) | 0.8*4 | 1380 | ||
| HC-B32 | 32 | 9-24 | 2.4/0.24(3/0.3) | 20 | 6*37+1 | 26 | 50a-63c | M3 | 18.5(18.5/3) | 920 | 1.5*4 | 1380 | ||
| HC-B50 | 50 | 9-24 | 2.4/0.24 | 20 | 6*37+1 | 26 | 50a-63c | M3 | 18.5(18.5/3) | 920 | 1.5*4 | 1380 | ||
| HC-B80 | 80 | 9-24 | 2.4/0.24 | 20 | 6*37+1 | 26 | 50a-63c | M3 | 18.5(18.5/3) | 920 | 1.5*4 | 1380 | ||
