CD1 MD1 Small Size Electric Wire Rope Electric Hoist 1 Ton
  • name
  • name
  • name
  • name
  • name

CD1 MD1 Small Size Electric Wire Rope Electric Hoist 1 Ton

MOQ: 1 set
Price: Negotiable
Standard Packaging: Standard export wooden cases
Delivery Period: 15 to 30 working days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 300 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
JCYC
Certification
CE & ISO
Model Number
CD1
Product Name:
CD1 MD1 Small Size Electric Wire Rope Electric Hoist 1 Ton With Wireless Remote Control
Sling:
Wire Rope
Capacity:
0.25-30 Ton
Lift Height:
6/9/12/18 Or At Your Request
Color:
As Request
Wireless Remote Control:
Available
Highlight:

electric lifting hoist

,

stainless steel wire rope hoist

Product Description

CD1 MD1 Small Size Electric Wire Rope Electric Hoist 1 Ton With Wireless Remote Control





Brief Introduction



Our factory can produce 1-50 tons of wire rope electric winch hoist, including CD and MD type, low headroom hoist, explosion proof electric hoist, European type electric hoist and chain hoist. The hoist can be with pendent control and wireless remote control. Totally can be customised strictly according to your specific requirement.



Product Application



The CD1 and MD1 type wire rope electric hoist is a kind of light and small lifting equipment, which can be installed on single beam crane, bridge crane, gantry crane, arm cranes, cantilever cranes, etc. It can also be used as a winch. It is widely used in factories, mines, harbors, warehouses, cargo storage areas and shops. CD has one speed, MD has two speed.



Product Technical parameters



CD1 MD1 Small Size Electric Wire Rope Electric Hoist 1 Ton 0



Model Lifting Capacity (t) Lifting Height (m) Lifting Speed (m/min) Running Speed (m/min) Wire Rope Type Dia.of Wire Rope (mm) I Beam Track Type Working Duty Lifting Motor Running Motor
Power(kw) R.P.M ( r/min) Power Supply Power(kw) R.P.M ( r/min) Power Supply
CD1-0.25 0.25 3-9 8 20 6*19 3.6 16-22b M3 0.4 1380 220-440V 50/60HZ 3Phase 0.06 1400 220-440V 50/60HZ 3Phase
CD1-0.5 0.5 6-12 8 20 6*37+1 4.8 16-28b M3 0.8 1380 0.2 1380
CD1-1 1 6-30 8 20 6*37+1 7.4 16-28b M3 1.5 1380 0.2 1380
CD1-2 2 6-30 8 20 6*37+1 11 20a-32c M3 3 1380 0.4 1380
CD1-3 3 6-30 8 20 6*37+1 13 20a-32c M3 4.5 1380 0.4 1380
CD1-5 5 6-30 8 20 6*37+1 15 25a-63c M3 7.5 1380 0.8 1380
CD1-10 10 6-30 7 20 6*37+1 15 25a-63c M3 13 1400 0.8*2 1380
CD1-16 16 6-30 3.5 20 6*37+1 15 45a-63c M2 13 1400 0.8*2 1380
CD1-20 20 6-30 3.5 20 6*37+1 20 50a-63c M2 13 1400 0.8*2 1380



Model Lifting Capacity (t) Lifting Height (m) Lifting Speed (m/min) Running Speed (m/min) Wire Rope Type Dia.of Wire Rope (mm) I Beam Track Type Working Duty Lifting Motor Running Motor
Power(kw) R.P.M ( r/min) Power Supply Power(kw) R.P.M ( r/min) Power Supply
MD1-0.25 0.25 3-9 8/0.8 20 6*19 3.6 16-22b M3 0.4 1380 220-440V 50/60HZ 3Phase 0.06 1400 220-440V 50/60HZ 3Phase
MD1-0.5 0.5 6-12 8/0.8 20 6*37+1 4.8 16-28b M3 0.2/0.8 1380 0.2 1380
MD1-1 1 6-30 8/0.8 20 6*37+1 7.4 16-28b M3 0.2/1.5 1380 0.2 1380
MD1-2 2 6-30 8/0.8 20 6*37+1 11 20a-32c M3 0.4/3.0 1380 0.4 1380
MD1-3 3 6-30 8/0.8 20 6*37+1 13 20a-32c M3 0.4/4.5 1380 0.4 1380
MD1-5 5 6-30 8/0.8 20 6*37+1 15 25a-63c M3 0.8/7.5 1380 0.8 1380
MD1-10 10 6-30 7/0.7 20 6*37+1 15 25a-63c M3 1.5/13 1400 0.8*2 1380
MD1-16 16 6-30 3.5/0.35 20 6*37+1 15 45a-63c M2 1.5/13 1400 0.8*2 1380
MD1-20 20 6-30 3.5/0.35 20 6*37+1 20 50a-63c M2 1.5/13 1400 0.8*2 1380





Questions before quotation:

* Lifting capacity?
* Lifting height?
* What is lifting material? How about working environment?
* Power supply and control voltage?



The more information you provide, the accurate solution we can prepare for you!

Product Application

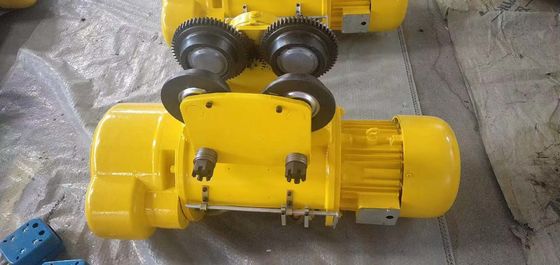

Product shows:

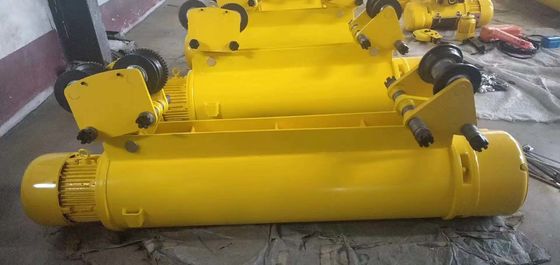

CD1 MD1 Small Size Electric Wire Rope Electric Hoist 1 Ton 1

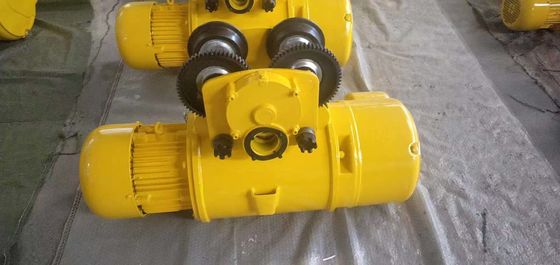

CD1 MD1 Small Size Electric Wire Rope Electric Hoist 1 Ton 2

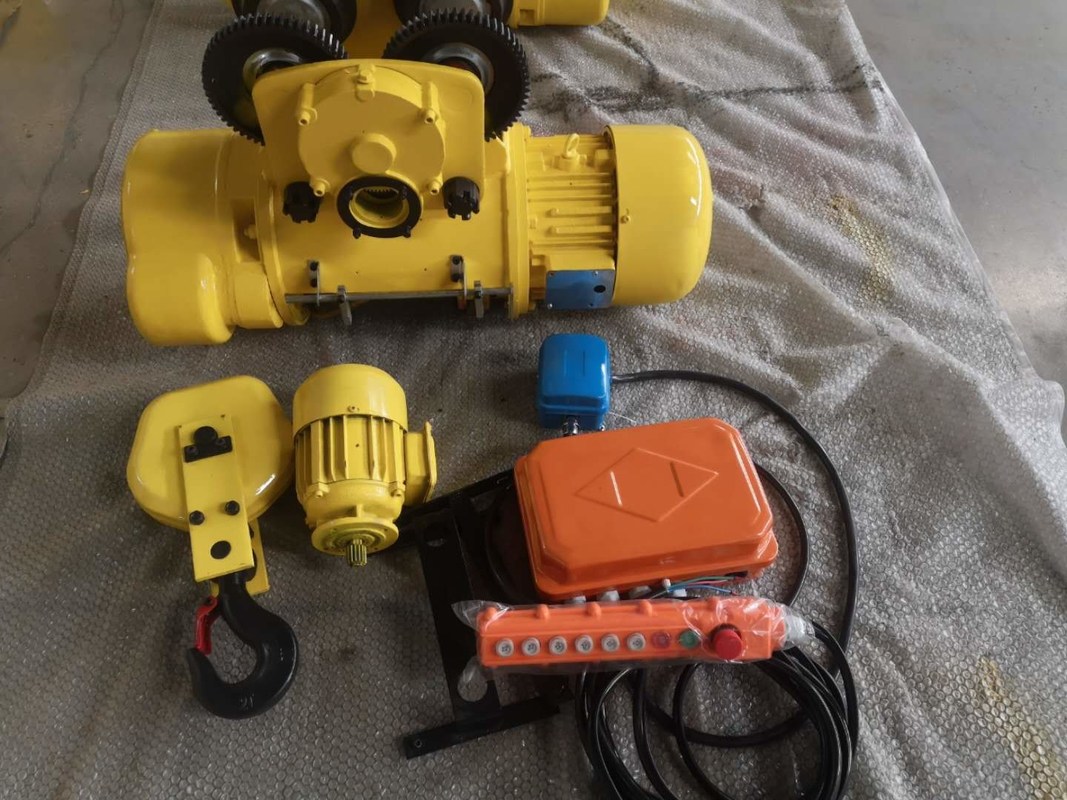

CD1 MD1 Small Size Electric Wire Rope Electric Hoist 1 Ton 3

CD1 MD1 Small Size Electric Wire Rope Electric Hoist 1 Ton 4
