Remote Control Explosion Proof Electric Wire Rope Hoist 0.5 Ton To 16 Tons
  • name

Remote Control Explosion Proof Electric Wire Rope Hoist 0.5 Ton To 16 Tons

MOQ: 1 piece
Price: Negotiable
Standard Packaging: Export Package
Delivery Period: 15 workdays
Payment Method: L/C, T/T, Western Union
Supply Capacity: 9,000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC / OEM
Certification
CE
Model Number
BCD
Color:
Yellow Or Customize Color
Material:
Steel
Paint:
Painting
Grade:
Explosion-proof
Warranty:
12 Months
Function:
Explosion Proof
Type:
Electric Wire Rope Hoist
Capacity:
0.5 Ton To 16 Tons
Highlight:

electric lifting hoist

,

stainless steel wire rope hoist

Product Description

1. Product Profile:
BCD Model, Explosion-proof Electric Wire Rope Hoist. Completely solved sparkers problem and widely used in industries. Its working system is M3 - M4, has 120 numbers of connecting times. Standard power source is Three phase AC 380 V 50 Hz, customization is ok.

2. Description:

2.1. Insulation Grade: F. Usage: Lifting, fixing, binding, traction, etc.

2.2. High quality and wide adaptation.

2.3. Excellent performance.

2.4. 1 year warranty

2.5. Sample, OEM and ODM are all ok.

3. Advantages:

3.1. The main parts of it adopt high quality steel product to ensure durability.

3.2. Special specifications and marks can be made according to customers' requirements.

3.3. Adapts to environment that has explosive gas formed by inflammable gas, steam and sir of which explosion proof grade is less than B or C grade and ignition grade is more than T4 (135℃) group.

3.4. The main body can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.

4. Parameter:


Model Capacity(t) Lifting Height(m) Lifting Speed(m/min) Travelling Speed(m/min) Wire Rope Spec. Dia. Of Wire Rope(mm) Lifting Motor Power Supply
Type Power(kw) R.P.M(r/min) Current(A)
BCD0.5 0.5 6-12 8(0.8/8) 20/30 6*37 4.8 BZD121-4 0.8(0.2/0.8) 1380 2.4(0.72/2.4) AC380V 50HZ, 3 P
BZDS10.2/0.8
BCD1 1 6-30 8(0.8/8) 20/30 6*37 7.4 BZD122-4 1.5(0.2/1.5) 1380 4.3(0.72/4.3)
BZDS10.2/1.5
BCD2 2 6-30 8(0.8/8) 20/30 6*37 11 BZD131-4 3(0.4/3) 1380 7.6(1.25/7)
BZDS10.4/3
BCD3 3 6-30 8(0.8/8) 20/30 6*37 13 BZD132-4 4.5(0.4/4.5) 1380 11(2.25/11)
BZDS10.4/4.5
BCD5 5 6-30 8(0.8/8) 20/30 6*37 15 BZD141-4 7.5(0.8/7.5) 1400 18(2.4/18)
BZDS10.8/7.5
BCD10 10 9-30 7(0.7/7) 20/30 6*37 15 BZD151-4 13(1.5/13) 1400 30(5.2/30)
BZDS11.5/13
BCD16 16 9-30 3.5(0.35/3.5) 18 6*37 17.5 BZD151-4 13(1.5/13) 1400 30(5.2/30)

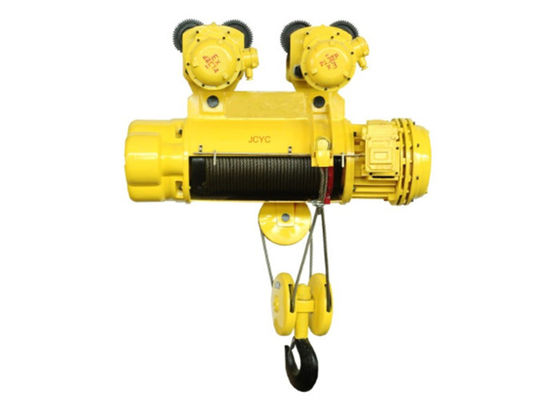

5. Photo:
Remote Control Explosion Proof Electric Wire Rope Hoist 0.5 Ton To 16 Tons 0
Remote Control Explosion Proof Electric Wire Rope Hoist 0.5 Ton To 16 Tons 1
6. Company Message:

OEM & ODM are both ok. Welcomes contact us to gain mutual benefits and make bright future together.
