Single Girder Crane End Carriage
  • name
  • name
  • name

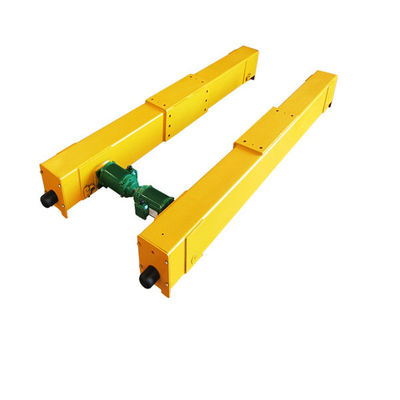

Single Girder Crane End Carriage

MOQ: 1 set
Price: Negotiable
Standard Packaging: Plywood case
Delivery Period: 15 to 20 working days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 200 to 300 sets per week
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
CE & ISO
Model Number
GL/GD
Product Name:
End Carriage Overhead Crane Single Girder
Condition:
New
Span:
Generally 7.5-22.5m(can Be Customized)
Capacity:
According To Crane And Crane Span
Feature:
Overhead Single Girder Crane
Warranty:
One Year
After-sale Service Provided:
Engineers Available To Service Machinery Overseas, Online Support, No Overseas Service Provided, Free Spare Parts, Field Installation
Highlight:

end carriage overhead crane

,

end carriage of crane

Product Description

Single Girder Crane End Carriage / End Beam With Retangular Steel Tube and Connecting Plates


Product Application:

1. END Carriage have compact dimensions, light weight, good stability, triple motor-driven, high mechanical efficiency, installation, use, easy maintenance, low cost, generally as the first choice of customers.

2. END Carriage use rectangular tube modular manufacturing, buffer motor drive, with forged wheels. Use one custom CNC boring and milling machine.Completing opening, boring, milling surface drilling in one time.

3. END Carriage with two main beam webs, rigid connection with the main beam. When calibration crane, placed on the main beam webs, after adjustment good crane span, the main beam can be completed securely connecting plate welding. Main beam can be calibrated separately with end carriage transport, installation, just the main beam webs and end beams are bolted to complete the installation.

4. Every END Carriage run institutions have two wheels mounted at both ends of end carriage. One of only Active Wheel, including gear, used in conjunction with a motor output gear. The other was driven wheels.

Product Specifications:

Single Girder Crane End Carriage 0

Model Crane Rectangular
Steel tube		 Wheel Size Motor power S1
(mm)		 S2
(mm)		 W1
(mm)		 W2
(mm)
GL125-15 1t-7.5m 150*150*6 W125*60 0.3KW*2 1500 1300 400 500
GL125-20 1t-11.5m 2000 1800 400 500
GL125-25 1t-16.5m 2500 2300 400 500
GL160-15 2t/3t-7.5m 150*200*8 W160*70 0.4KW*2 1500 1200 400 500
GL160-20 2t/3t-11.5m 2000 1700 400 500
GL160-25 2t/3t-16.5m 2500 2200 400 500
GL160-30 2t/3t-22.5m 3000 2700 500 600
GL160-35 2t/3t-28.5m 3500 3200 600 700
GL200-20 5t-11.5m 150*250*8 W200*70 0.4KW*2 2000 1700 400 500
GL200-25 5t-16.5m 2500 2200 400 500
GL200-30 5t-22.5m 0.75KW*2 3000 2700 500 600
GL200-35 5t-28.5m 3500 3200 600 700
GL250-20 10t-11.5m 200*250*8 W250*80 0.75KW*2 2000 1600 400 500
GL250-25A 10t-16.5m 2500 2100 500 600
GL250-30A 10t-22.5m 1.1KW*2 3000 2600 500 600
GL250-35A 10t-28.5m 3500 3100 700 800
GL250-25B 16t-16.5m 200*300*8 W250*80 1.1KW*2 2500 2100 600 700
GL250-30B 16t-22.5m 3000 2600 700 800
GL250-35B 16t-28.5m 1.5KW*2 3500 3100 700 800
GL315-30 20t-16.5m 200*400*8 W315*90 1.5KW*2 3000 2500 700 800
GL315-35 20t-22.5m 3500 3000 700 800



Product Factory Show:



Single Girder Crane End Carriage 1

Single Girder Crane End Carriage 2
