MOQ:	1 set
Price:	Negotiable
Standard Packaging:	Carton or plywood case
Delivery Period:	15 to 20 working days
Payment Method:	L/C, T/T, Western Union
Supply Capacity:	300 to 500 sets per week

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

JCYC

Certification

CE & ISO9001

Name:

Telecontroller

Application:

Control Electric Hoists

Catagory:

Crane Spare Part

Type:

Can Be Choosed

Usage:

Press-botton

Component Part:

Receiver And Transmitter

Highlight:

crane wheel

steel crane wheels

Product Description

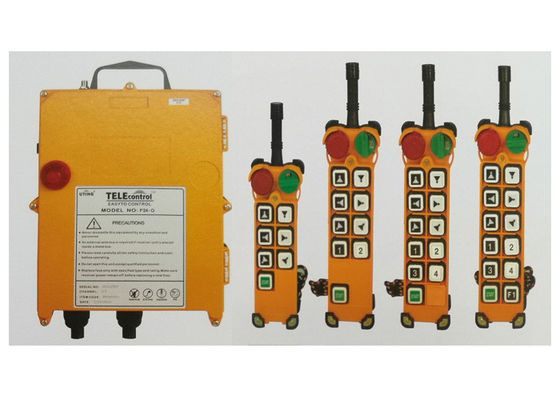

Wire / Wireless Sensitive Remote Control Handle For Electric Hoist

Receiver Parameters:

Material	Glass-Fiber PA
Enclosure protection class	IP65
Frequency range	VHF: 310-331MHz; UHF; 425-446MHz
Receiver sensitivity	-110dBm
Output contactor capacity	8A sealed relay output (with AC 250V/10A relays, 10A fuse)
Control distance	Approx 100m (200 meters is customized)
Safety code	32 bits (4.3 billion)
Temperature range	-40ºC to +85ºC
Receiver power supply	18-65V AC/DC, 65-440V AC/DC (optional)

Transmitter Parameters:

Material	Glass-Fiber PA
Enclosure protection class	IP65
Transmitter power	≤10dBm
Transmitter power supply	2 AA batteries
Safety code	32 bits(4.3billions group)
Control distance	Approx 100m (200 meters is customized)
Temperature range	-40ºC to +85ºC
Receiver power supply	18-65V AC/DC, 65-440V AC/DC (optional)

Product features:

The botton type can be choosed (english or arrow)
With battery voltage warning device, the power supply is cut off during low power
Safety switch key is to prevent from unauthorized user
Program the button function by computer interface
Up/down, left/right, front/back can be programmed to interlock or non-interlock
Power key can be programmed to start, toggle switch, normal or other functions
The spare button can be programmed to normal, interlock, toggle or start etc.
