CE Approved Electric Wire Rope Hoist CD Model Customized Mini Electric Hoist

Products

CE Approved Electric Wire Rope Hoist CD Model Customized Mini Electric Hoist

MOQ:	1 set
Price:	negotiable
Standard Packaging:	Standard export wooden cases
Delivery Period:	15 to 20 working days
Payment Method:	L/C, T/T, Western Union
Supply Capacity:	300 sets per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

JCYC

Certification

CE ISO

Model Number

CD1

Product Name:

CE Approved CD Model Customized Wire Rope Used Electric Hoist Price

Brand:

JCYC

Capacity:

0.25 To 50T

Lifting Speed:

3.5 To 8 M/min

Running Speed:

20 M/min

Power Supply:

220-440V, 50/60HZ, 3Phase

Highlight:

wire rope crane hoist

electric lifting hoist

Product Description

CE Approved CD Model Customized Wire Rope Used Electric Hoist Price

Product Technical Parameters:

Model	Lifting Capacity (t)	Lifting Height (m)	Lifting Speed (m/min)	Running Speed (m/min)	Wire Rope Type	Dia.of Wire Rope (mm)	I Beam Track Type	Working Duty	Lifting Motor			Running Motor
Model	Lifting Capacity (t)	Lifting Height (m)	Lifting Speed (m/min)	Running Speed (m/min)	Wire Rope Type	Dia.of Wire Rope (mm)	I Beam Track Type	Working Duty	Powe r(kw)	R.P.M ( r/min)	Power Supply	Powe r(kw)	R. P.M ( r/min)	Power Supply
CD1-0.25	0.25	3-9	8	20	6*19	3.6	16-22b	M3	0.4	1380	220 -440V 50/60HZ 3Phase	0.06	1400	220-440V 50/60HZ 3Phase
CD1-0.5	0.5	6-12	8	20	6*37+1	4.8	16-28b	M3	0.8	1380		0.2	1380
CD1-1	1	6-30	8	20	6*37+1	7.4	16-28b	M3	1.5	1380		0.2	1380
CD1-2	2	6-30	8	20	6*37+1	11	20a-32c	M3	3	1380		0.4	1380
CD1-3	3	6-30	8	20	6*37+1	13	20a-32c	M3	4.5	1380		0.4	1380
CD1-5	5	6-30	8	20	6*37+1	15	25a-63c	M3	7.5	1380		0.8	1380
CD1-10	10	6-30	7	20	6*37+1	15	25a-63c	M3	13	1400		0.8*2	1380
CD1-16	16	6-30	3.5	20	6*37+1	15	45a-63c	M2	13	1400		0.8*2	1380
CD1-20	20	6-30	3.5	20	6*37+1	20	50a-63c	M2	13	1400		0.8*2	1380

Product Brief Introduction:

Model CD wirerope Electric Hoist ia a small-sized lifting equpment , which can be mounted on single beam,overhead ,gantry and Jib cranes, With slight modiflication,it can also be uesd as a winch.it is widly uesd in factories, mines,harbours, warehouses,cargo storeareas and shops,It is essential in raising working efficeiency and improving working conditions.

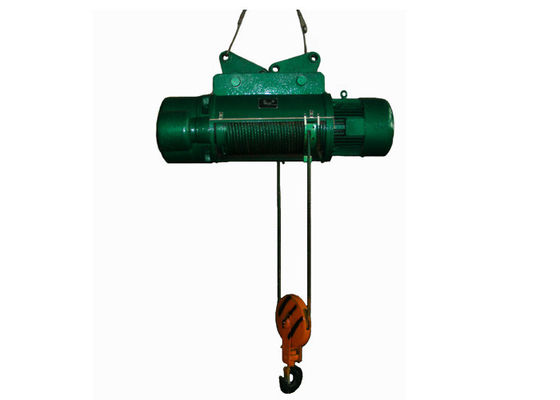

Product Show:

Buying Guides:

Please tell us your specification according the above different drawing, if difficult to you, kindly see the below the basic parameters or tell us your questions. We will choose a suitable products for you.

Or Just tell me where you will use, then it is my turns.
1. Load capacity:___t?
2. Lifting height: ___m?
3. (For crane) Span:____m?
4. Industrial voltage:___V___Hz___Phases?
5. Working Duty:____?
(Working hours ___h/day? Often full load or not? High working frequency or low? )
6. Other special specifications?
