Q235B Girder A4 Wire Rope Crane Hoist With Anti Rusting Paint

Q235B Girder A4 Wire Rope Crane Hoist With Anti Rusting Paint
Q235B Girder A4 Wire Rope Crane Hoist With Anti Rusting Paint
video play

Large Image :  Q235B Girder A4 Wire Rope Crane Hoist With Anti Rusting Paint

Product Details:
Place of Origin: China
Brand Name: JCYC
Certification: CE ISO9001 manufacturing licence
Model Number: CD1/MD1
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable

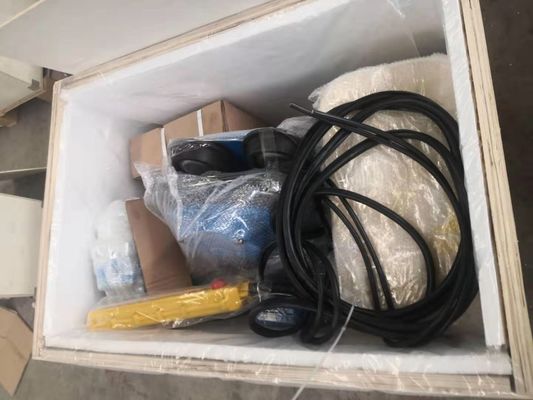

Packaging Details: Plywood Case
Delivery Time: 30 working day
Supply Ability: 1000pcs per month
Detailed Product Description
Name: Customized Capacity And Lifting Height Wire Rope Electric Winch Hoist For Lifting Capacity: 0.25 Ton To 32 Ton
Lifting Speed: 8(0.8)m/min Girder: Single Girder / Double Girder
Rail Type: I-Type, H-Type Rail Travel Speed: 20/30 M/min
High Light:

A4 Wire Rope Crane Hoist


Q235B Girder Wire Rope Crane Hoist


8M/Min Lifting Wire Rope Crane Hoist

Customized Capacity and Lifting Height Wire Rope Electric Winch Hoist for Lifting



General Introduction


CD,MD Electric Wire rope Hoist is a small-sized lifting equipment, which can be mounted on single beam bridge crane and single beam gantry crane and jib crane. With Light weight, small size, compact structure, stable operation, etc. It can also be used as a winch.
It is widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions. CD Electric Wire rope Hoist has only one normal speed, which can satisfy normal application. MD Electric Wire rope Hoist provides two speeds: normal speed and low speed. At a low speed,it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc.




General Specification
Lift Capacity
0.25T to 32T
Lifting Height
6/9/12/18/36M or others
Work Duty
Power Supply
Ambient temperature
-20 ~ +40 degrees
Electrical part
CHINT brand, control voltage 36V AC
Anti-rusting paint + finishing paint + finish paint
Main girder
Box type, material Q235B
End truck
End carriage with accessories, material Q235B
Forged hook “C” type with safety lock
Control method
Remote control (TELECRANE brand) and pendent control
Model number P24 with accessories
Bus Bar
Model 3P×16MM2
Seamless type with accessories including current collector & tensioners
Lifting System
Lifting speed
Lifting motor
ZD31-4-3KW(Chinese Nanjing brand)
Wire rope
Ø15mm, structure 6×37+NF
Traveling System
Traveling speed
Traveling motor
ZDY12-4-0.4KWChinese Nanjing brand
Travelling wheel
Main feature

1) Excellent design.
2) Use world-renowned brand components, including pneumatic components, electrical components and operating components.
3) Stepless control and smooth operation.
4) High automation and intelligent operation, no pollution
5) Security monitoring, more extended functions.

Technical datasheet


Model Lifting Capacity (t) Lifting Height (m) Lifting Speed (m/min) Running Speed (m/min) Wire Rope Type Dia.of Wire Rope (mm) I Beam Track Type Working Duty Lifting Motor
Power(kw) R.P.M ( r/min) Power Supply
CD1-0.25 0.25 3-9 8 20 6*19 3.6 16-22b M3 0.4 1380 220-440V 50/60HZ 3Phase
CD1-0.5 0.5 6-12 8 20 6*37+1 4.8 16-28b M3 0.8 1380
CD1-1 1 6-30 8 20 6*37+1 7.4 16-28b M3 1.5 1380
CD1-2 2 6-30 8 20 6*37+1 11 20a-32c M3 3 1380
CD1-3 3 6-30 8 20 6*37+1 13 20a-32c M3 4.5 1380
CD1-5 5 6-30 8 20 6*37+1 15 25a-63c M3 7.5 1380
CD1-10 10 6-30 7 20 6*37+1 15 25a-63c M3 13 1400
CD1-16 16 6-30 3.5 20 6*37+1 15 45a-63c M2 13 1400
CD1-20 20 6-30 3.5 20 6*37+1 20 50a-63c M2 13 1400

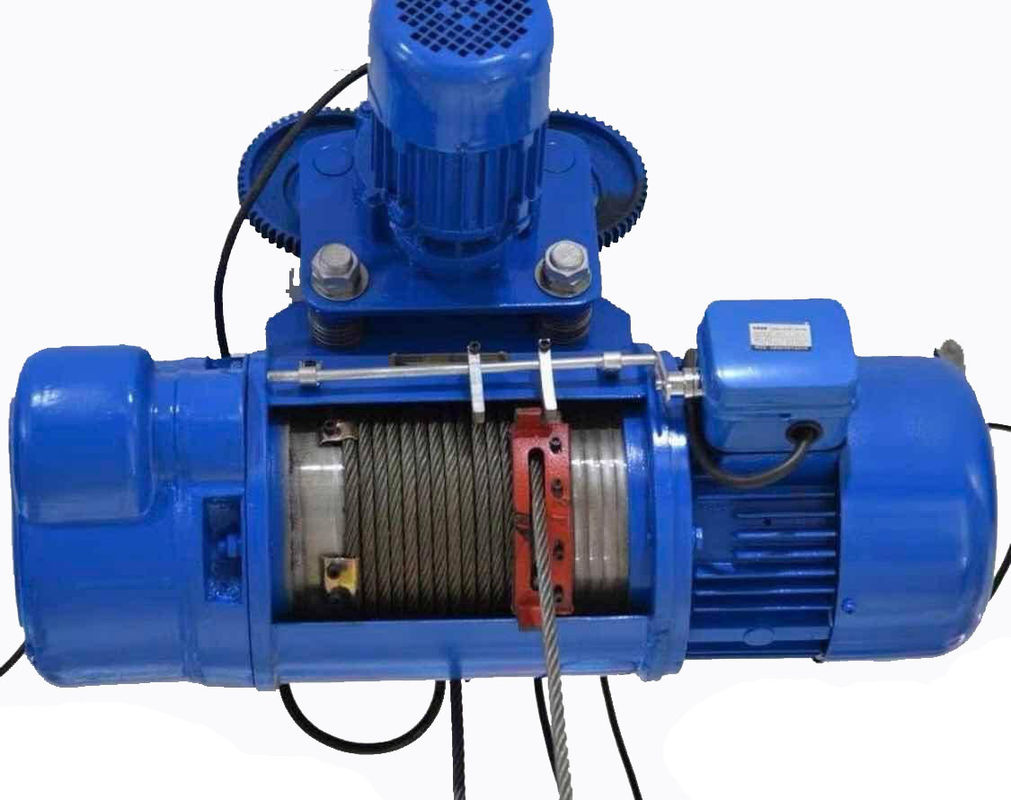

> Motor: Hoist Motor is a taper type rotor motor with braking; it is one of the best quality motors, which has bigg er torque, so it can be adapted to moving frequently, the Maximum torque is 2.4-3 times than the rated torque.

> Gear Box: Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on ball or roller bearings, to ensure smooth, low-friction operation.

> Wire Rope: Hoisting ropes comply with the exporting standards. The leading rope taken by the drum does not slip sideways when slack. The factor of safety, on the nominal breaking strength of the rope is six.

> Rope Drum: Grooved hoist Drum, seamless pipe of adequate length to be wounded in one layer and to provid eproper
support for the rope to minimize abrasive wear is provided. Drum Shaft resolves on Ball Bearings for ensuring smooth running.


> Electric apparatus controlling system: Model CD1 and MD1 hoist is composed of the contactor box, controlling switch, cut-off limiter, the working voltage of controlling switch is 380V, 36V or 24V(safety voltage).

> Rope Guide: Rope Guide is in two halves, ensuring easy accessibility. It encircles the drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition. The rope guides of our company is thicken and dilated, so that it is not easy to be damaged.

> Hook: The Hook Block is tested to 150 % of full load before assembly.



A. The standard lifting height is 6, 9, 12, 18, 24, 30 and 36 meters.

B. The lifting speed can be single speed or double speed, even multi-speed with frequency inverters.
C. The suitable rail for the low-headroom hoist is H-type rail, and I-type rail is also available..
D. The recommended rope reeving of this kind of hoist is 2/1, 4/2 or 4/1.
E. The normal traveling speed is 20m/min, and 12.5, 16, 25, 30, 45m/min by request.
F. The normal rail gauge of the double-girder is 1200, 1500, 1800, 2100 and 2300mm.

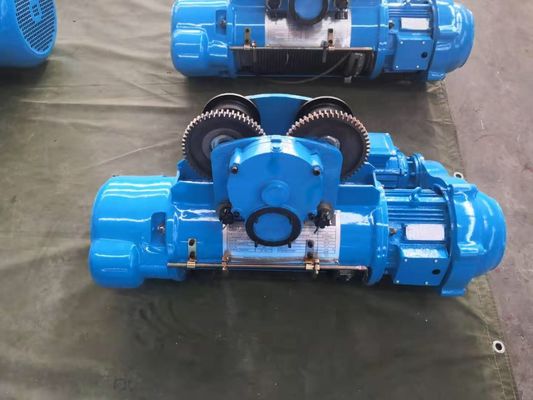

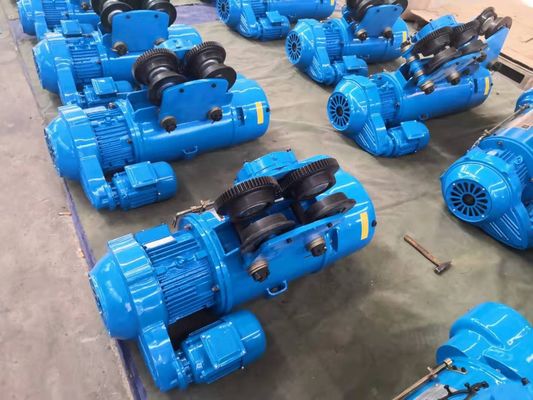

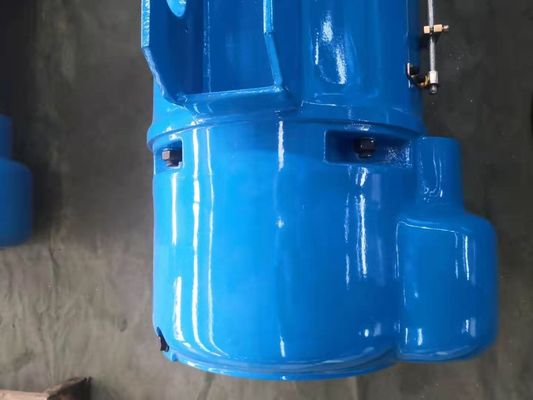

Factory show


Q235B Girder A4 Wire Rope Crane Hoist With Anti Rusting Paint 0

Q235B Girder A4 Wire Rope Crane Hoist With Anti Rusting Paint 1

Q235B Girder A4 Wire Rope Crane Hoist With Anti Rusting Paint 2
