CD1 ELECTRIC WIRE ROPE HOIST
  • name
  • name
  • name

CD1 ELECTRIC WIRE ROPE HOIST

MOQ: 1 set
Price: Negotiable
Standard Packaging: Standard export wooden cases
Delivery Period: 15 to 30 working days
Payment Method: T/T
Supply Capacity: 300 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
JCYC
Certification
CE & ISO
Model Number
CD1
Lifting Height:
3m-30m
Lifting Capacity:
1t To 20ton
Power Supply:
380V 3P 50HZ
Rope Reeving:
2/1, 4/1
Lifting Speed:
8 M/min
Highlight:

5 Ton Wire Rope Pulling Hoist

,

10 Ton Wire Rope Pulling Hoist

,

ISO Wire Rope Pulling Hoist

Product Description

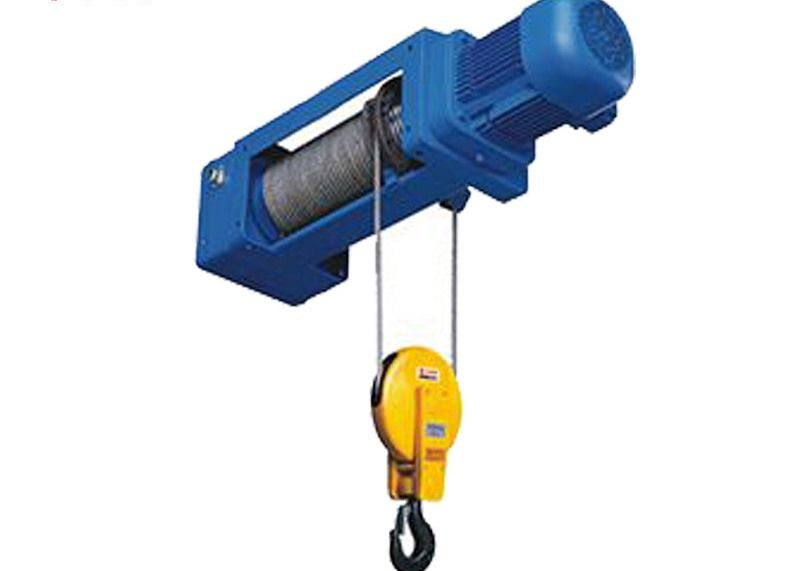

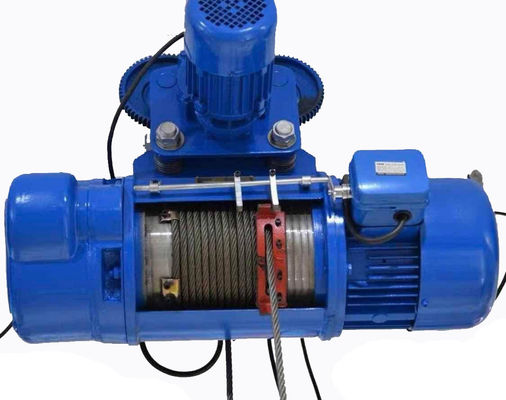

CD1 ELECTRIC WIRE ROPE HOIST



CD1 ELECTRIC WIRE ROPE HOIST WITH TROLLEY OR FIXED TYPE


CD1 Model, Electric Wire Rope Hoist with Trolley or Fixed Type

Small-sized lifting equipment which can be mounted on single beam cranes, bridge cranes, gantry cranes and arm cranes.

Widely used in factories, mines, harbors, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.


Features and advantages:


1. CD1 model can be used as a winch after slight modification.

2. CD1 has only a normal speed which can satisfy Normal application.


Product technical data:



Model Lifting Capacity(t) Lifting Height(m) Lifting Speed(m/min) Running Speed(m/min) Wire Rope Type Dia. Of Wire Rope(mm) I Beam Track Type Working Duty (H)Lifting Height Running Motor
Power(kw) R.P.M(r/min) Power Supply Power(kw) R.P.M(r/min) Power Supply
CD1-0.25 0.25 3-9 8 20 6*19 3.6 16-22b M3 0.4 1380 220-440V 50/60HZ 3 Phase 0.06 1400 380V- 50HZ-3 Phase
CD1-0.5 0.5 6-12 8 20 6*37+1 4.8 16-28b M3 0.8 1380 0.2 1380
CD1-1 1 6-30 8 20 6*37+1 7.4 16-28b M3 1.5 1380 0.2 1380
CD1-2 2 6-30 8 20 6*37+1 11 20a-32c M3 3 1380 0.4 1380
CD1-3 3 6-30 8 20 6*37+1 13 20a-32c M3 4.5 1380 0.4 1380
CD1-5 5 6-30 8 20 6*37+1 15 25a-63c M3 7.5 1380 0.8 1380
CD1-10 10 6-30 7 20 6*37+1 15 25a-63c M3 13 1380 0.8*2 1380
CD1-16 16 6-30 3.5 20 6*37+1 15 45a-63c M3 13 1380 0.8*2 1380
CD1-20 20 6-30 3.5 20 6*37+1 20 50a-63c M3 13 1380 0.8*2 1380

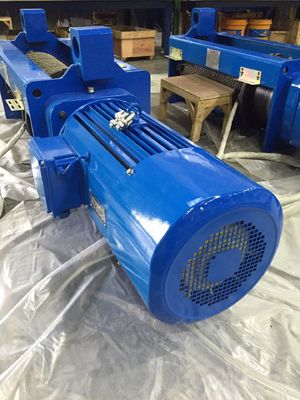

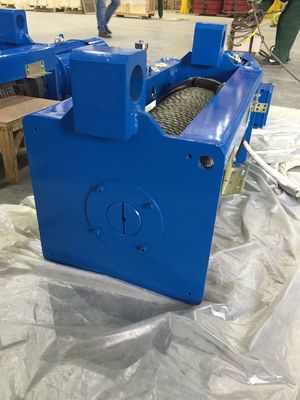

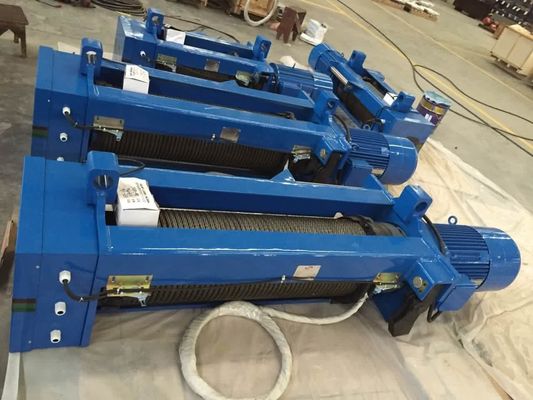

Product Display / Packaging / Exhibition Photos

CD1 ELECTRIC WIRE ROPE HOIST

CD1 ELECTRIC WIRE ROPE HOIST

CD1 ELECTRIC WIRE ROPE HOIST

CD1 ELECTRIC WIRE ROPE HOIST

CD1 ELECTRIC WIRE ROPE HOIST

Questions before make quotation:

The more information you provide, the accurate solution we can prepare for you!
A- Lifting capacity:Ton?
B- Lifting height: m?
C- What is your working environment:?
D- What is Voltage--Phase--Frequency?
