50t Double Girder Overhead Headroom Electric Hoist Top Running
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name

50t Double Girder Overhead Headroom Electric Hoist Top Running

MOQ: 1 set
Price: negotiable
Standard Packaging: standard export cases
Delivery Period: 15 to 20 working days
Payment Method: L/C,T/T,Western Union
Supply Capacity: 300 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
Chongqing China
Brand Name
JCYC
Certification
CE & ISO
Model Number
SHSL-B
Product Name:
50t Double Girder Overhead Crane Electric Wire Rope Hoist
Type:
Double Girder
Capacity:
3.2t ~ 50t
Lifting Height:
6/9/12/15/18 Meters Or As Request
Traveling Speed:
5/20 M/min
Working Class:
M4/M5/M6
Highlight:

electric lifting hoist

,

stainless steel wire rope hoist

Product Description
50t Double Girder Overhead Headroom Electric Hoist Top Running
Heavy-duty double girder overhead crane with electric hoist system designed for top running applications in industrial environments.
Technical Specifications
Capacity (ton) Lifting Height (m) Lifting Speed (m/min) Lifting Motor (kw) Traveling Speed (m/min) Traveling Motor (kw) Lifting System FEM/ISO Traveling System FEM/ISO Trolley Rail Gauge (mm)
3.2t6/9/12/15/185/0.83.2/0.425/200.25x22MM51000-1700
5t6/9/12/15/185/0.86.1/15/200.37x22MM51000-1700
6.3t6/9/12/15/185/0.86.1/15/200.37x22MM51000-1700
8t6/9/12/15/185/0.89.5/1.55/200.37x22MM51000-2000
10t6/9/12/15/185/0.89.5/1.55/200.37x22MM51000-2000
12.5t6/9/12/15/185/0.812.5/25/200.55x21AMM41000-2000
16t6/9/12/15/184/0.616/2.65/200.55x22MM51400-2400
20t6/9/12/15/184/0.616/2.65/200.55x21AmM41400-2400
25t6/9/12/15/183.3/0.820/55/200.75x23MM61700-3100
32t6/9/12/15/183.3/0.820/51.1x22MM51700-3100
40t6/9/12/15/180-4385/201.5x21AmM41700-3100
50t6/9/12/15/180-3385/201.5x22MM51700-3100
50t6/9/12/15/180-3385/201.5x22MM52000-4200
50t Double Girder Overhead Headroom Electric Hoist Top Running 0
Applications
  • Factory, workshop, warehouse, store
  • Logistic, dock, port, freight yard
  • Construction building, mine, and related industrial sites
Key Features
  • Safe working load capacity: 0.5t - 80t
  • Complies with DIN/FEM/ISO standards with lightweight construction
  • Silent operation for improved working environment
  • Lower hoist frame design reduces building costs
  • Modern motor, fan, gear, drum, and brake construction
  • Optimum cooling system with 30% improved efficiency, resistant to 170°C as standard
  • Operating temperature range: -10℃ to +40℃
  • 140μm epoxy paint coating for maximum resistance against climatic conditions, extending service life

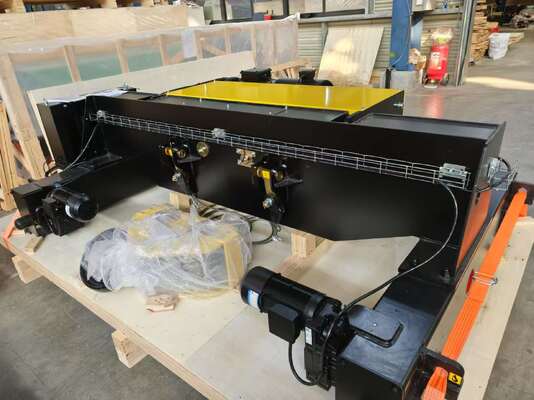

50t Double Girder Overhead Headroom Electric Hoist Top Running 1 50t Double Girder Overhead Headroom Electric Hoist Top Running 2
